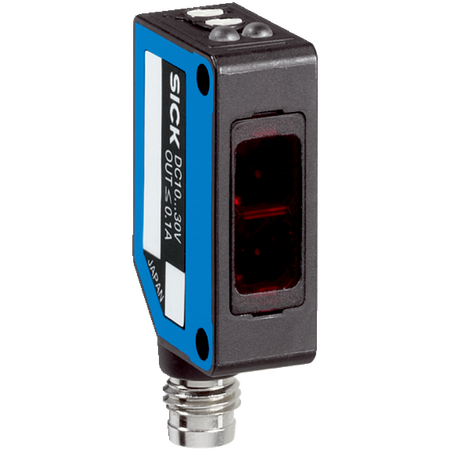

Photoelectric Retro-Reflective Sensor WL100L-F2231 | IP65 Rated | 2000 Hz Switching Frequency | Dual Lens System | by SICK
The Photoelectric Retro-Reflective Sensor WL100L-F2231 is designed for high-speed object detection in industrial automation. With a robust IP65 rated enclosure, it features a dual lens system and a visible red laser light source for precise detection. Ideal for manufacturing lines, this sensor ensures reliable performance with a high switching frequency of 2000 Hz, making it perfect for small object detection applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Retro-Reflective Photoelectric Sensor, SICK WL100L Sensor, Laser Object Sensor, Industrial Photo Sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP
- Switching mode: Light/dark selectable
- Response time: < 0.25 ms
- Switching frequency: 2000 Hz
- Connection type: Male M8, 4-pin connector
- Circuit protection: A, B, D types
- Laser class: 1
- Operating temperature: -10°C to +50°C
- Storage temperature: -40°C to +70°C
- Enclosure rating: IP65
- Housing material: Plastic ABS/PC
- Optics material: Plastic PMMA
- Polarizing filter included
- Dimensions (H x L x W): 31mm x 20mm x 11mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Visible red laser light source with 650 nm wavelength
- Adjustable potentiometer with 270° rotation
- Selectable light/dark switching mode
- High switching frequency of 2000 Hz
- IP65 rated enclosure for dust and water resistance
- Includes stainless steel mounting bracket and reflector
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper alignment and electrical connection.
Applications
- Industrial automation for object detection
- High-speed object detection
- Small object detection in manufacturing lines
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with 30 mA current draw
- Durable ABS/PC plastic housing extends product life reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK WL100L-F2231 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
