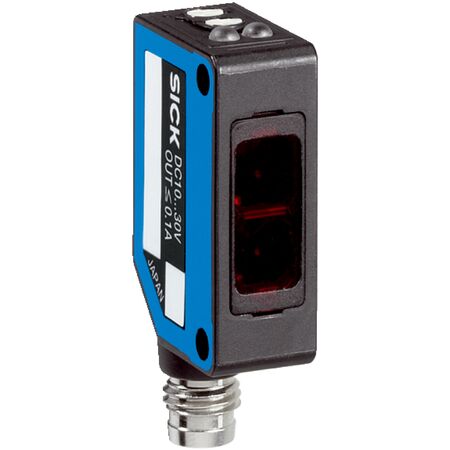

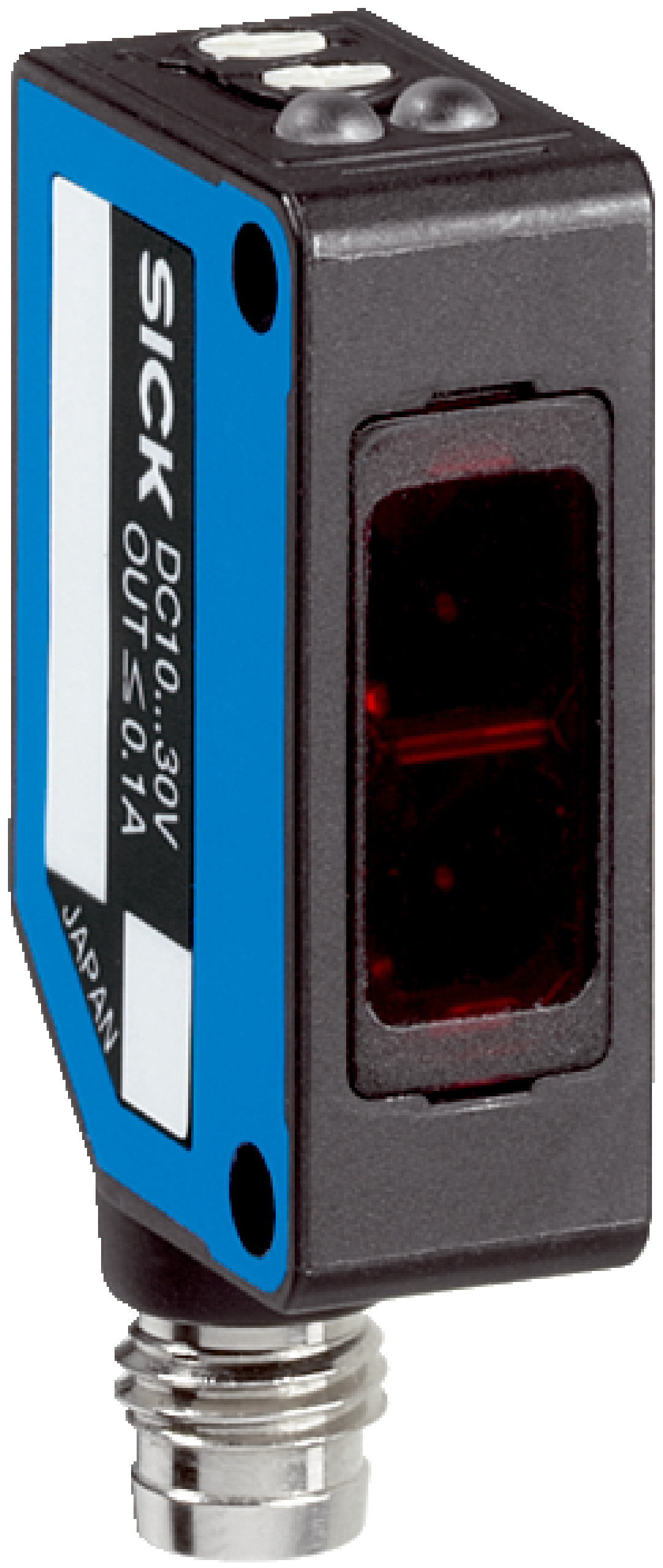

Photoelectric Retro-Reflective Sensor WL100L-E2231 | IP65 Rated | 2000 Hz Switching Frequency | by SICK
The WL100L-E2231 Photoelectric Retro-Reflective Sensor is designed for high-speed object detection in industrial automation. With a sensing range of 0.08 m to 12 m and a high switching frequency of 2000 Hz, it ensures precise detection of small objects. Its durable IP65 rated enclosure provides excellent dust and water resistance, making it ideal for manufacturing lines and other demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: NPN
- Switching mode: Light/dark selectable
- Response time: < 0.25 ms
- Switching frequency: 2000 Hz
- Connection type: Male M8, 4-pin connector
- Circuit protection: Types A, B, D
- Laser class: 1
- Ambient operating temperature: -10 °C to +50 °C
- Storage temperature: -40 °C to +70 °C
- Housing material: Plastic ABS/PC
- Optics material: Plastic PMMA
- Enclosure rating: IP65
- Dimensions (H x L x W): 31mm x 20mm x 11mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Visible red laser light source with 650 nm wavelength
- Sensing range from 0.08 m to 12 m
- Potentiometer adjustment with 270° rotation
- Selectable light/dark switching mode
- High switching frequency of 2000 Hz
- IP65 rated enclosure for dust and water resistance
- Includes stainless steel mounting bracket and reflector
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with photoelectric sensor setup and electrical safety standards.
Applications
- Industrial automation for object detection
- High-speed object detection
- Small object detection in manufacturing lines
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption with 30 mA current draw
- Durable IP65 housing reduces need for frequent replacements
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK WL100L-E2231 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
