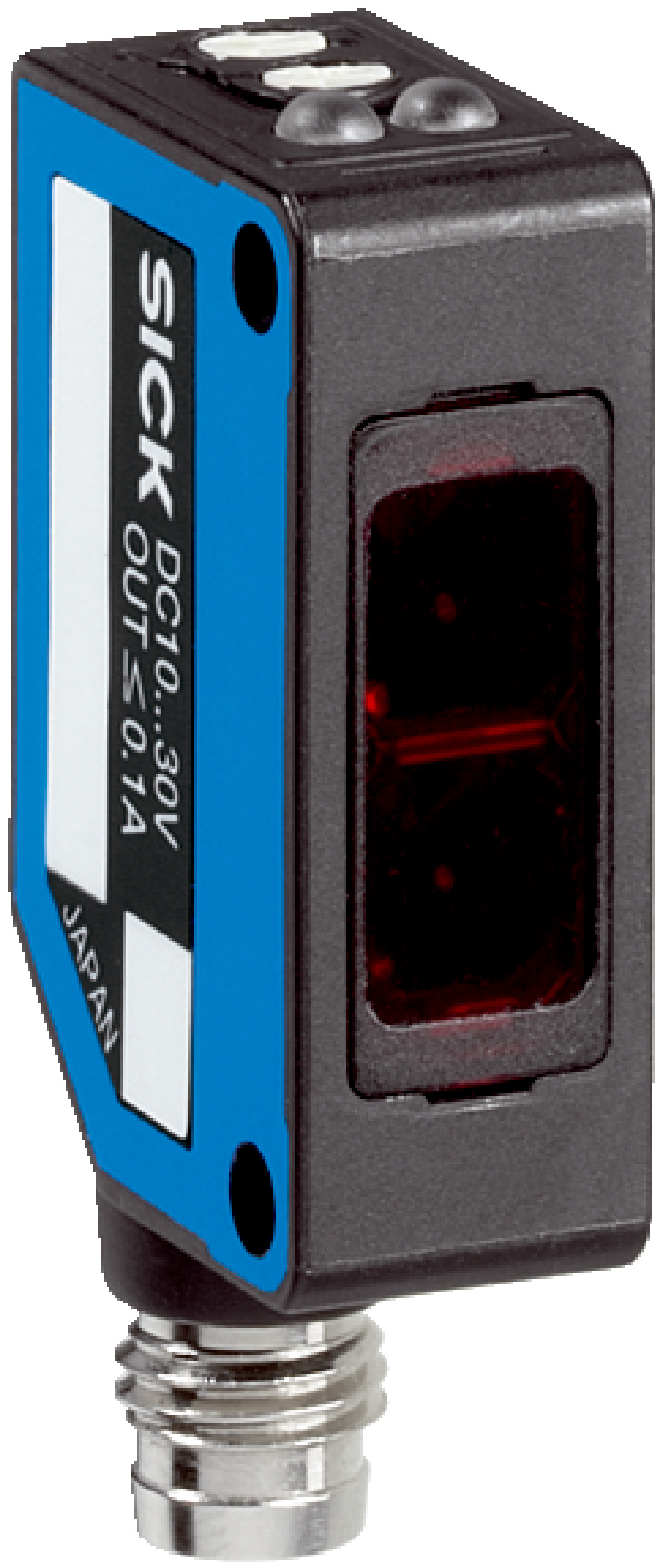

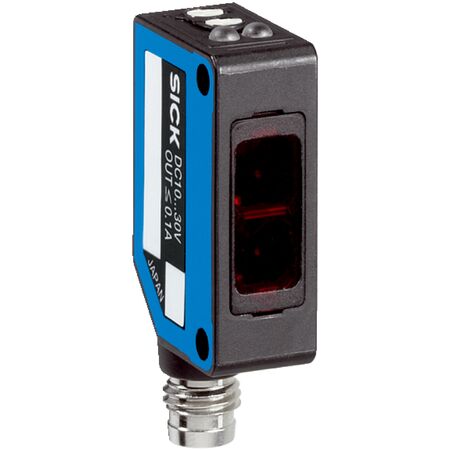

Photoelectric Retro-Reflective Sensor WL100L-F3431S42 | IP65 Rated | Dual Lens System | 650nm Laser Light | by SICK
The Photoelectric Retro-Reflective Sensor WL100L-F3431S42 is designed for high-speed object detection in industrial automation. Featuring a dual lens system and a visible red laser light source, it ensures precise detection from 0.08 m to 10 m. With an IP65 enclosure rating for dust and water resistance, this sensor is perfect for manufacturing lines and small object detection, providing reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP
- Switching mode: Light/dark selectable via rotary switch
- Response time: < 0.25 ms
- Switching frequency: 2000 Hz
- Connection: Cable with M12 male connector, 4-pin, 290 mm length
- Cable material: Plastic, PVC
- Cable diameter: 0.14 mm
- Circuit protection: A, B, D
- Housing material: Plastic ABS/PC
- Optics material: Plastic PMMA
- Operating temperature: -10 °C to +50 °C
- Storage temperature: -40 °C to +70 °C
- Laser class: 1
- Sensing range: 0.08 m to 10 m
- Dimensions (H x L x W): 31mm x 20mm x 11mm
- Weight: 0.15 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Visible red laser light source with 650 nm wavelength
- Adjustable potentiometer with 270° rotation
- Selectable light/dark switching mode
- Polarizing filter included
- Enclosure rating IP65 for dust and water resistance
- Includes stainless steel mounting bracket
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for object detection
- High-speed object detection
- Small object detection in manufacturing lines
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient laser technology reduces power consumption
- Durable IP65 housing extends product life and reduces waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK WL100L-F3431S42 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
