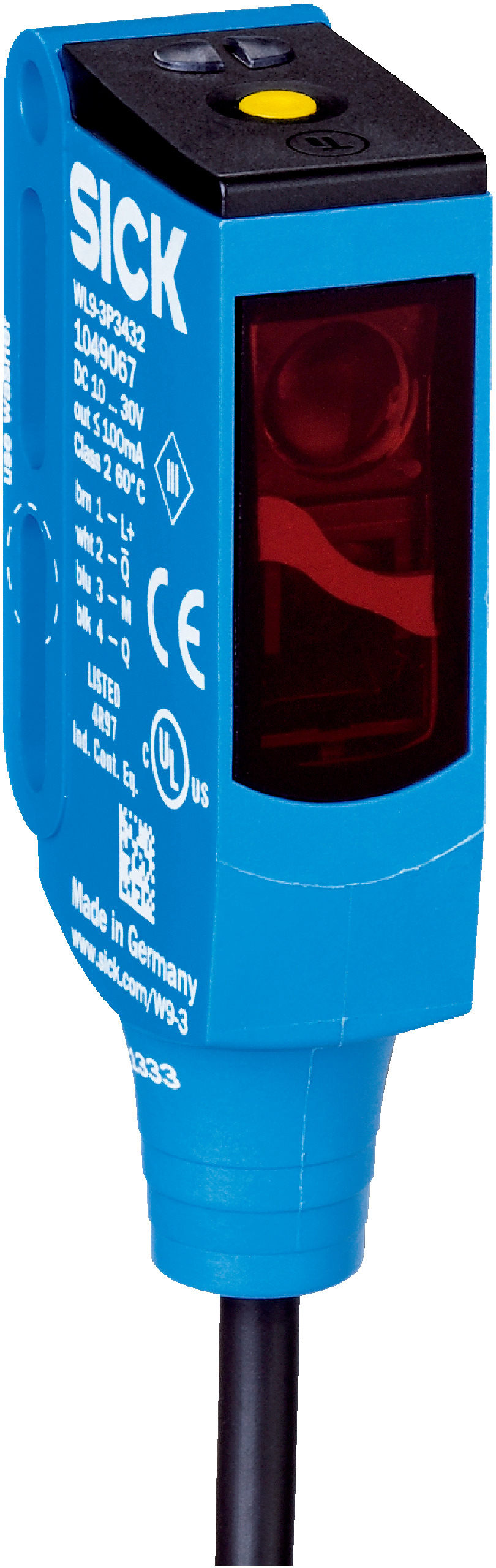

Photoelectric Retro-Reflective Sensor | IP66/IP67/IP69K Rated | 0.3m Sensing Range | 1000 Hz Switching Frequency | by SICK
The Photoelectric Retro-Reflective Sensor WL9-3N1162 is designed for precise object detection in industrial automation. With a sensing range of 0 to 0.3 meters and a high switching frequency of 1,000 Hz, it ensures reliable performance in manufacturing and packaging applications. Its durable IP66/IP67/IP69K rated housing makes it suitable for harsh environments, while the visible red light from the PinPoint LED enhances visibility and accuracy.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor
- Sensing range: 0 m to 0.3 m without reflector
- Light source: PinPoint LED, wavelength 650 nm
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: NPN, complementary output function
- Switching mode: Light/dark switching
- Output current max: ≤ 100 mA
- Response time: < 0.5 ms
- Switching frequency: 1,000 Hz
- Connection type: 4-wire cable, 2 m length, PVC material
- Protection class: III
- Enclosure rating: IP66, IP67, IP69K
- Operating temperature: -40°C to +60°C
- Storage temperature: -40°C to +75°C
- Housing material: Plastic VISTAL®
- Optics material: Plastic PMMA
- Weight: 80 g
- Polarizing filter included
- Dimensions (H x L x W): 50mm x 23.6mm x 12.2mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with focused optics
- Visible red light with PinPoint LED light source
- Single teach-in button for easy adjustment
- High switching frequency of 1,000 Hz
- Compact rectangular housing with M3 mounting hole
- Protection rating IP66, IP67, IP69K for harsh environments
- Wide ambient operating temperature range from -40°C to +60°C
- Polarizing filter included to reduce false triggers
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with photoelectric sensor wiring and safety standards to ensure proper operation and compliance.
Applications
- Industrial automation for detecting small objects
- Manufacturing lines requiring precise object detection
- Packaging and material handling systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP69K rated housing minimizes environmental impact by extending product lifespan
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK WL9-3N1162 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
