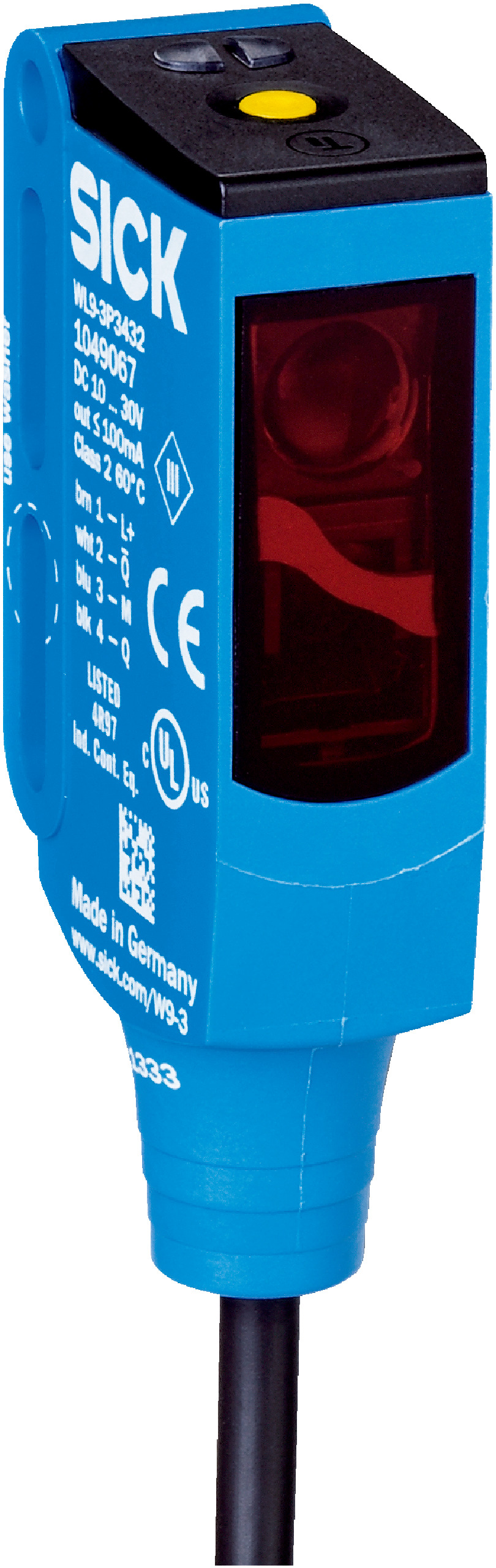

Photoelectric Retro-Reflective Sensor WL9-3P1162 | IP66, IP67, IP69K Rated | 0.3m Sensing Range | by SICK
The Photoelectric Retro-Reflective Sensor WL9-3P1162 is designed for precise object detection in industrial automation, featuring a sensing range of 0 m to 0.3 m and a high switching frequency of 1,000 Hz. With robust IP66, IP67, and IP69K protection ratings, this sensor is built to withstand harsh environments, making it ideal for manufacturing process control and material handling applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Retro-Reflective Sensor WL9-3P1162 | IP66, IP67, IP69K Rated | 0.3m Sensing Range | by SICK
Brand: SICK
SKU: 1049054
Alternatively Known As: Photoelectric sensor, Retro-reflective sensor, Object detection sensor, SICK WL9 sensor
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor without reflector minimum distance (autocollimation/coaxial optics)
- Sensing range: 0 m to 0.3 m
- Type of light: Visible red light, wavelength 650 nm
- Light spot size: Ø 2 mm at 35 mm distance
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP, complementary output function
- Switching mode: Light/dark switching
- Maximum output current: ≤ 100 mA
- Response time: < 0.5 ms
- Switching frequency: 1,000 Hz
- Connection type: 4-wire cable, 2 m length, PVC insulation
- Circuit protection: Types A, B, C
- Protection class: III
- Housing material: Plastic VISTAL®
- Optics material: Plastic PMMA
- Enclosure rating: IP66, IP67, IP69K
- Operating temperature range: –40 °C to +60 °C
- Storage temperature range: –40 °C to +75 °C
- Weight: 80 g
- Polarizing filter included
- Dimensions (H x L x W): 50mm x 23.6mm x 12.2mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with focused optics
- Visible red light with PinPoint LED light source
- Single teach-in button for easy adjustment
- High switching frequency of 1,000 Hz
- Robust plastic housing with IP66, IP67, and IP69K protection ratings
- Wide ambient operating temperature range from –40 °C to +60 °C
- Polarizing filter included to reduce false triggers
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor systems to ensure proper setup and safety compliance.
Applications
- Industrial automation for detecting small objects
- Manufacturing process control
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable design minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WL9-3P1162 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
