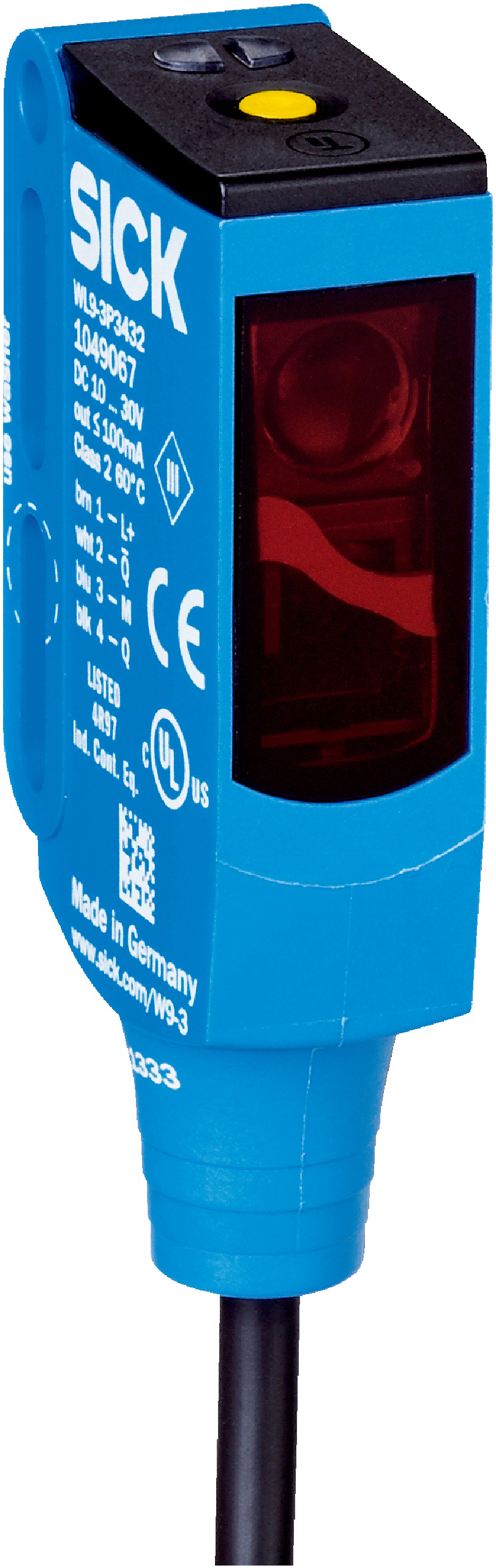

Photoelectric Retro-Reflective Sensor | IP66, IP67, IP69K | 10-30V DC | 0.5ms Response Time | by SICK
The Photoelectric Retro-Reflective Sensor WL9-3N1102S07 is designed for precise object detection in industrial automation. With a wide operating voltage of 10-30V DC and a rapid response time of less than 0.5 ms, it ensures reliable performance in machine safety and control systems. Its high protection rating of IP66, IP67, and IP69K makes it suitable for harsh environments, while the small light spot size of Ø 3 mm allows for accurate detection of small objects.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: NPN, complementary
- Switching mode: Light/dark switching
- Output current max: ≤ 100 mA
- Response time: < 0.5 ms
- Switching frequency: 1,000 Hz
- Connection type: 4-wire cable, 2 m length
- Cable material: Plastic, PVC
- Conductor cross section: 0.14 mm²
- Circuit protection: Types A, B, C
- Protection class: III
- Housing material: Plastic, VISTAL®
- Optics material: Plastic, PMMA
- Enclosure rating: IP66, IP67, IP69K
- Operating temperature: –40 °C to +60 °C
- Storage temperature: –40 °C to +75 °C
- Wave length: 650 nm
- Light spot size: Ø 3 mm at 35 mm distance
- Dimensions (H x L x W): 50mm x 23.6mm x 12.2mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with autocollimation/coaxial optics
- Visible red light with PinPoint LED light source
- Small light spot size of Ø 3 mm at 35 mm distance
- Single teach-in button for easy adjustment
- Front screen printing for a small light spot
- High protection rating: IP66, IP67, IP69K
- Wide ambient operating temperature range from –40 °C to +60 °C
- Polarizing filter included
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for detecting small objects
- Machine safety and control systems
- Material handling and packaging lines
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable housing materials extend product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK WL9-3N1102S07 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
