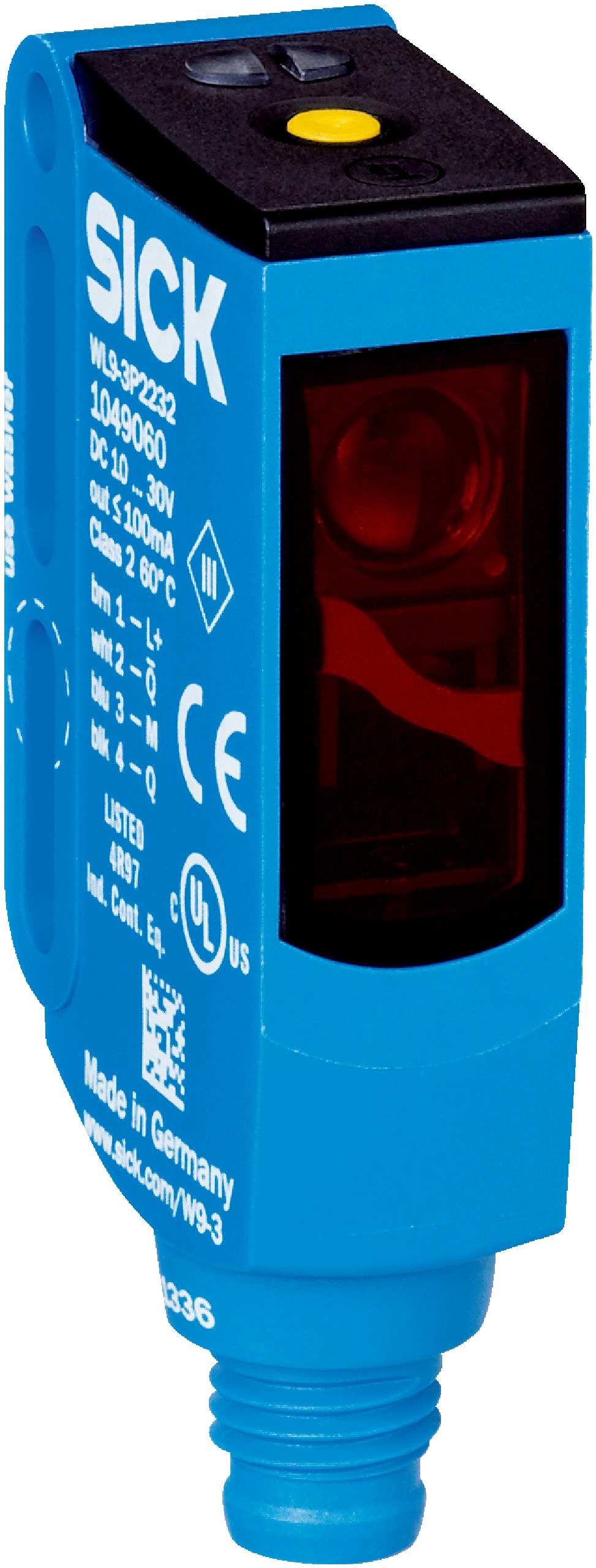

Photoelectric Retro-Reflective Sensor WL9-3P2262 | IP66, IP67, IP69K Rated | 1,000 Hz Switching Frequency | by SICK
The Photoelectric Retro-Reflective Sensor WL9-3P2262 is designed for precise object detection in industrial automation. With a sensing range of 0 m to 0.3 m and a high switching frequency of 1,000 Hz, it ensures reliable performance. Its robust IP66, IP67, and IP69K ratings make it ideal for harsh environments, while the compact design and easy teach-in button enhance usability for technicians and electricians.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor
- Sensing range: 0 m to 0.3 m without reflector
- Light source: PinPoint LED, 650 nm wavelength
- Supply voltage: 10 V DC to 30 V DC
- Output: PNP complementary switching output
- Response time: less than 0.5 ms
- Switching frequency: 1,000 Hz
- Connection: Male M8 connector, 4-pin
- Protection class: III
- Enclosure rating: IP66, IP67, IP69K
- Operating temperature: -40 °C to +60 °C
- Housing material: Plastic VISTAL®, Optics material: PMMA
- Dimensions (H x L x W): 49.8mm x 23.6mm x 12.2mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with focused optics
- Visible red light with PinPoint LED light source
- Single teach-in button for easy adjustment
- High switching frequency of 1,000 Hz
- IP66, IP67, and IP69K rated for robust protection
- Polarizing filter included to reduce false triggers
- Compact rectangular housing design with M3 mounting hole
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and sensor alignment for optimal performance.
Applications
- Industrial automation for detecting small objects
- Machine safety and control systems
- Material handling and packaging lines
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with 30 mA current draw
- Durable housing materials extend product lifespan reducing waste
- Compliant with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK WL9-3P2262 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
