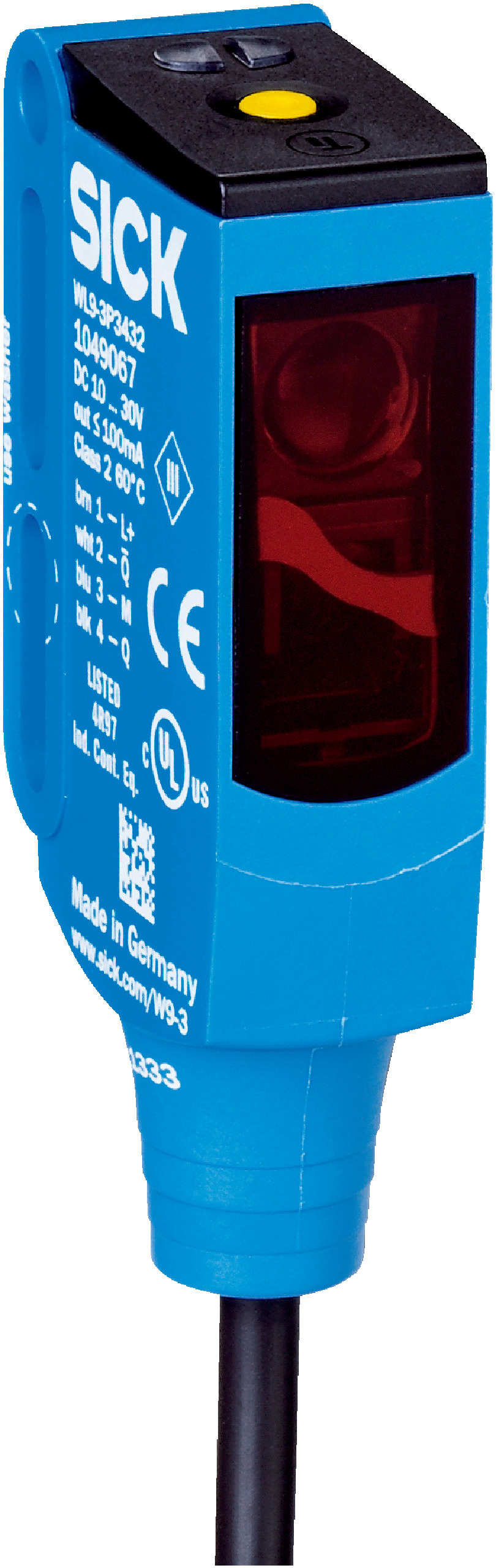

Photoelectric Retro-Reflective Sensor | IP66/IP67/IP69K Rated | 1,000 Hz Switching Frequency | by SICK
The Photoelectric Retro-Reflective Sensor is designed for industrial automation, featuring a high switching frequency of 1,000 Hz and a response time of under 0.5 ms. With robust IP66, IP67, and IP69K protection ratings, it excels in harsh environments and is perfect for detecting transparent objects like bottles and trays. Its energy-efficient PinPoint LED light source ensures reliable performance while minimizing power consumption.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 20 mA
- Switching output: PNP complementary
- Output current max: ≤ 100 mA
- Response time: < 0.5 ms
- Switching frequency: 1,000 Hz
- Light source: PinPoint LED
- Light spot size: Ø 45 mm at 1.5 m
- Protection class: III
- Enclosure rating: IP66, IP67, IP69K
- Cable: Plastic PVC, 0.14 mm² conductor cross section
- Operating temperature: -40 °C to +60 °C
- Storage temperature: -40 °C to +75 °C
- Housing material: Plastic VISTAL®
- Optics material: Plastic PMMA
- Polarizing filter included
- Dimensions (H x L x W): 50mm x 23.6mm x 12.2mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with autocollimation/coaxial optics
- Visible red light with PinPoint LED at 650 nm wavelength
- Single teach-in button for easy adjustment
- AutoAdapt feature for optimized detection
- Polarizing filter included for enhanced detection
- High switching frequency of 1,000 Hz and response time under 0.5 ms
- Complementary PNP output with light/dark switching mode
- Robust plastic VISTAL® housing with IP66, IP67, and IP69K protection ratings
- Wide ambient operating temperature range from -40 °C to +60 °C
- Cable with M12 male connector, 4-pin, 120 mm length
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for object detection
- Detection of transparent objects such as bottles and trays
- Harsh environment sensing with high protection rating
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable design minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK WL9G-3P3432S03 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and transparent object detection applications.
