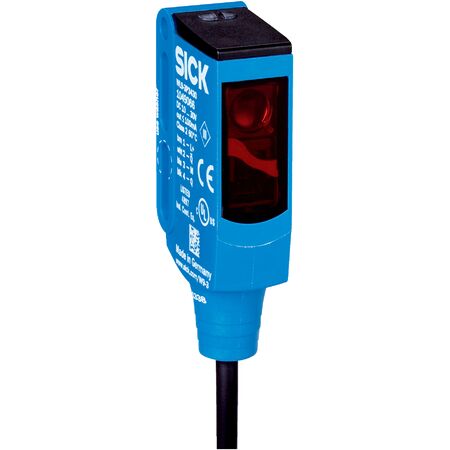

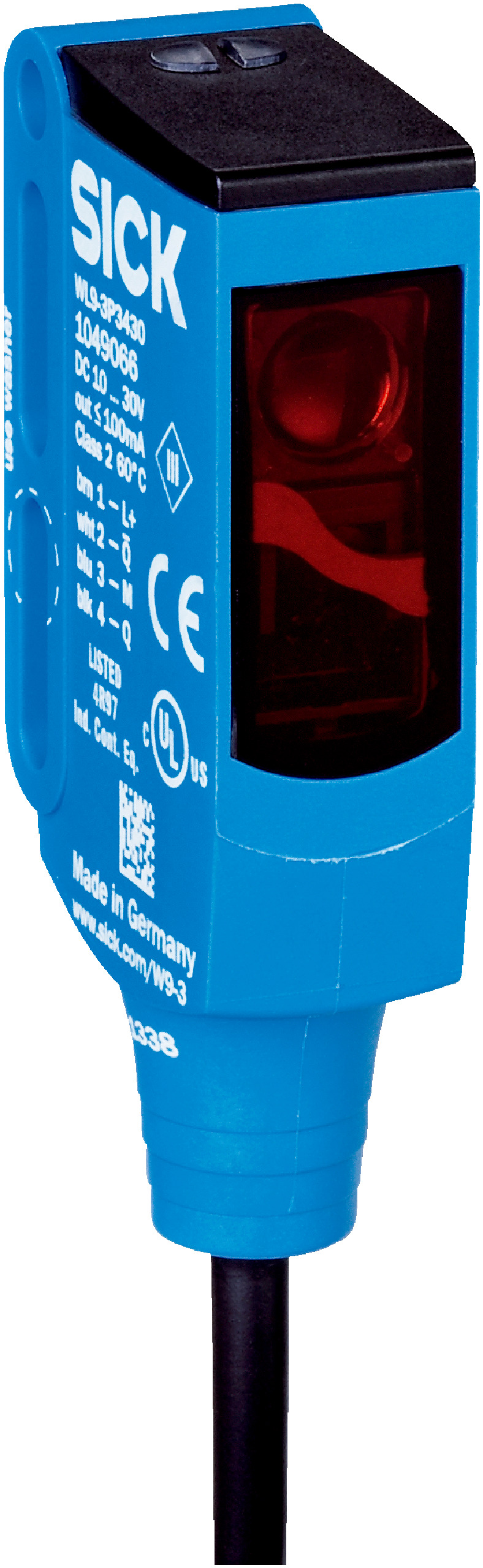

Photoelectric Retro-Reflective Sensor WL9-3P1130 | IP66, IP67, IP69K | Fast Response Time | by SICK
The Photoelectric Retro-Reflective Sensor WL9-3P1130 is designed for industrial automation, featuring a sensing range of up to 4 meters and a fast response time of under 0.5 ms. With a robust IP66, IP67, and IP69K protection rating, this sensor is perfect for safety and monitoring in manufacturing processes, ensuring reliable object detection in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Retro-Reflective Sensor WL9-3P1130 | IP66, IP67, IP69K | Fast Response Time | by SICK
Brand: SICK
SKU: 1049055
Alternatively Known As: Photoelectric sensor, Retro-reflective sensor, SICK WL9 sensor, Industrial object sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP, complementary
- Output current max: ≤ 100 mA
- Response time: < 0.5 ms
- Switching frequency: 1000 Hz
- Connection: 4-wire cable, 2 m length, PVC material
- Protection class: III
- Housing material: Plastic, VISTAL®
- Optics material: Plastic, PMMA
- Enclosure rating: IP66, IP67, IP69K
- Operating temperature: -40°C to +60°C
- Storage temperature: -40°C to +75°C
- Wave length: 650 nm
- Light spot size at 1.5 m: Ø 45 mm
- Mounting hole: M3
- Polarizing filter included
- Dimensions (H x L x W): 50mm x 23.6mm x 12.2mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with autocollimation/coaxial optics
- Visible red light with PinPoint LED light source
- Sensing range up to 4 meters
- Rectangular housing design with M3 mounting hole
- High protection rating: IP66, IP67, IP69K
- Fast response time under 0.5 ms and switching frequency of 1000 Hz
- Complementary PNP output with light/dark switching mode
- Polarizing filter included for enhanced detection
- Wide ambient operating temperature range from -40°C to +60°C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and sensor alignment.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable housing materials extend product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK WL9-3P1130 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
