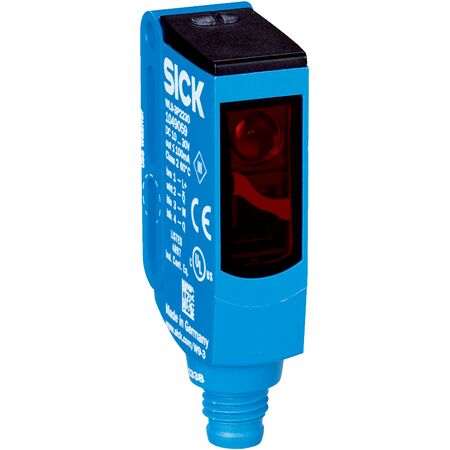

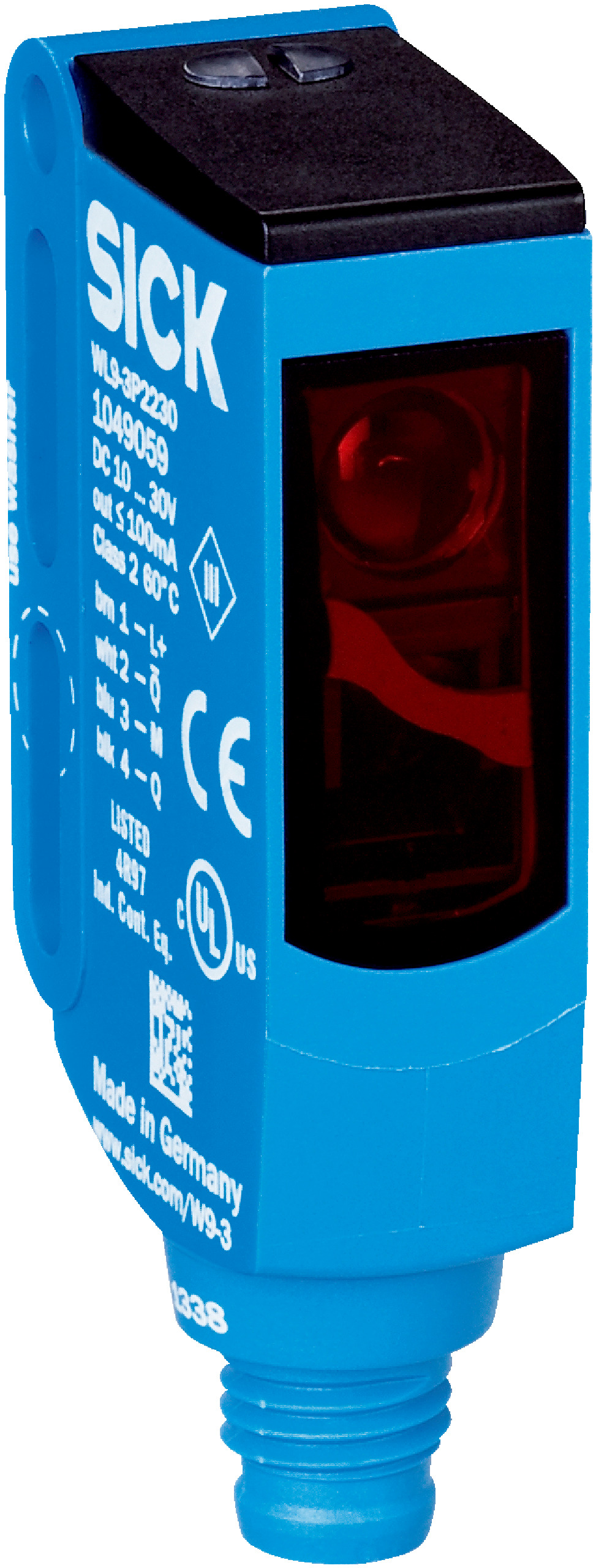

Photoelectric Retro-Reflective Sensor WL9-3N2230 | IP66, IP67, IP69K | Fast Response Time | by SICK
The Photoelectric Retro-Reflective Sensor WL9-3N2230 is designed for industrial automation, featuring a sensing range of up to 4 meters without a reflector and a fast response time of under 0.5 ms. With a robust IP66, IP67, and IP69K protection rating, this sensor is perfect for harsh environments, ensuring reliable object detection and safety monitoring in manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Retro-Reflective Sensor WL9-3N2230 | IP66, IP67, IP69K | Fast Response Time | by SICK
Brand: SICK
SKU: 1049071
Alternatively Known As: Photoelectric sensor, Retro-reflective sensor, SICK WL9 sensor, Industrial object sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: NPN complementary
- Output current max: ≤ 100 mA
- Response time: < 0.5 ms
- Switching frequency: 1000 Hz
- Light wavelength: 650 nm
- Light spot size: Ø 45 mm at 1.5 m
- Connection: Male M8, 4-pin connector
- Protection class: III
- Enclosure rating: IP66, IP67, IP69K
- Operating temperature: -40°C to +60°C
- Storage temperature: -40°C to +75°C
- Housing material: Plastic VISTAL®
- Optics material: Plastic PMMA
- Polarizing filter included
- Dimensions (H x L x W): 49.8mm x 23.6mm x 12.2mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with autocollimation/coaxial optics
- Visible red light with PinPoint LED light source
- Sensing range up to 4 meters without reflector
- Compact rectangular housing with M3 mounting hole
- High protection rating IP66, IP67, IP69K for harsh environments
- Fast response time under 0.5 ms and switching frequency of 1000 Hz
- Complementary NPN output with light/dark switching mode
- Wide operating temperature range from -40°C to +60°C
- Polarizing filter included to reduce false triggering
- Robust plastic housing made of VISTAL® and PMMA optics
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper wiring and sensor alignment.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and conveyor systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable design minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK WL9-3N2230 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
