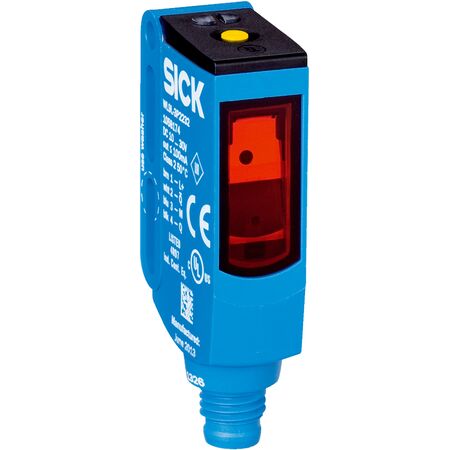

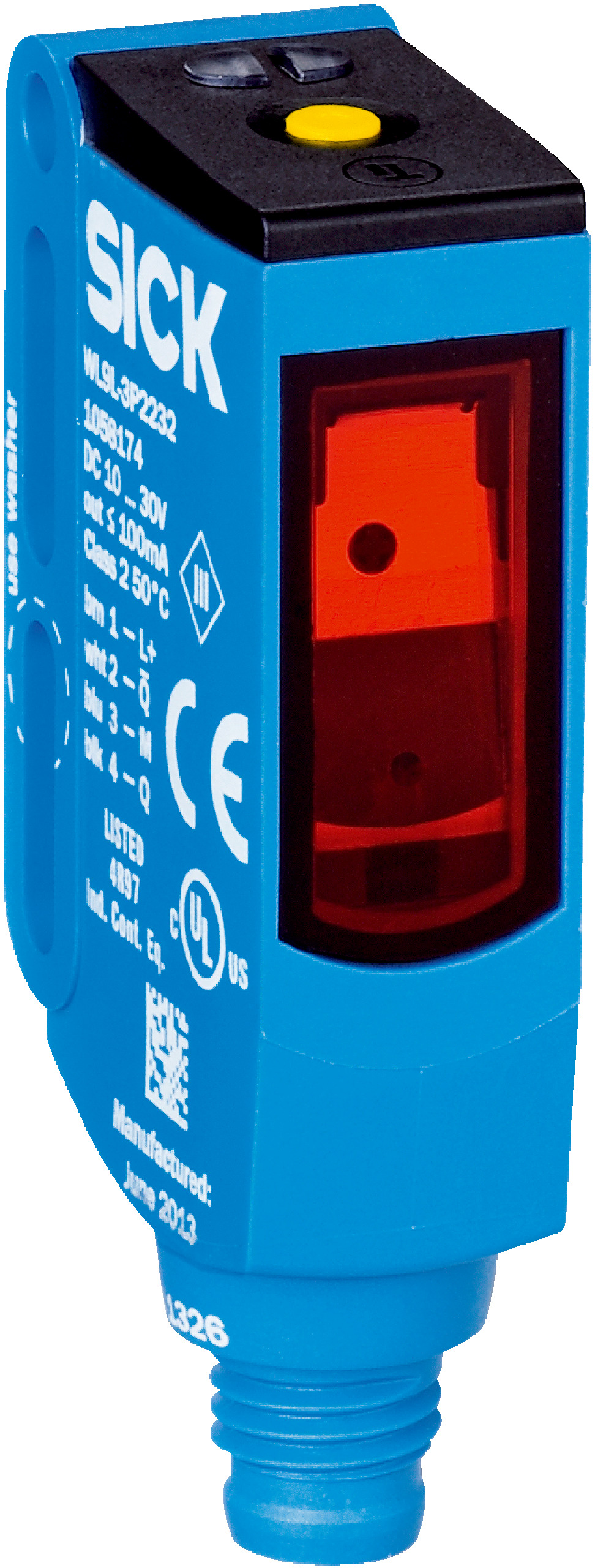

Photoelectric Retro-Reflective Sensor WL9LG-3P2232 | IP66, IP67, IP69K | Fast Response Time | by SICK
The WL9LG-3P2232 Photoelectric Retro-Reflective Sensor is designed for precise object detection in industrial automation. With a sensing range of up to 4.5 meters and a fast response time of ≤ 0.5 ms, it ensures reliable performance in harsh environments. Featuring a robust IP66, IP67, and IP69K rated housing, this sensor is perfect for detecting small and transparent objects, making it an essential tool for machine safety and process control.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP complementary
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1000 Hz
- Connection type: Male M8, 4-pin connector
- Protection class: III
- Enclosure rating: IP66, IP67, IP69K
- Operating temperature: -10 °C to +50 °C (extended -30 °C to +55 °C)
- Storage temperature: -30 °C to +70 °C
- Laser class: 1 (IEC 60825-1)
- Housing material: Plastic VISTAL®
- Optics material: Plastic PMMA
- Dimensions (H x L x W): 49.8mm x 23.6mm x 12.2mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with autocollimation/coaxial optics
- Visible red laser light source with 650 nm wavelength
- Sensing range up to 4.5 meters without reflector
- Single teach-in button for easy adjustment
- AutoAdapt feature for optimized sensing
- High protection rating IP66, IP67, IP69K for harsh environments
- Fast response time of ≤ 0.5 ms and switching frequency of 1000 Hz
- Complementary PNP output with light/dark switching mode
- Polarizing filter included to reduce false triggers
- Robust plastic housing made of VISTAL® and PMMA optics
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for object detection
- Detecting small and transparent objects
- Machine safety and process control
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient laser technology reduces power consumption
- Durable IP69K rated housing minimizes environmental damage and waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WL9LG-3P2232 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
