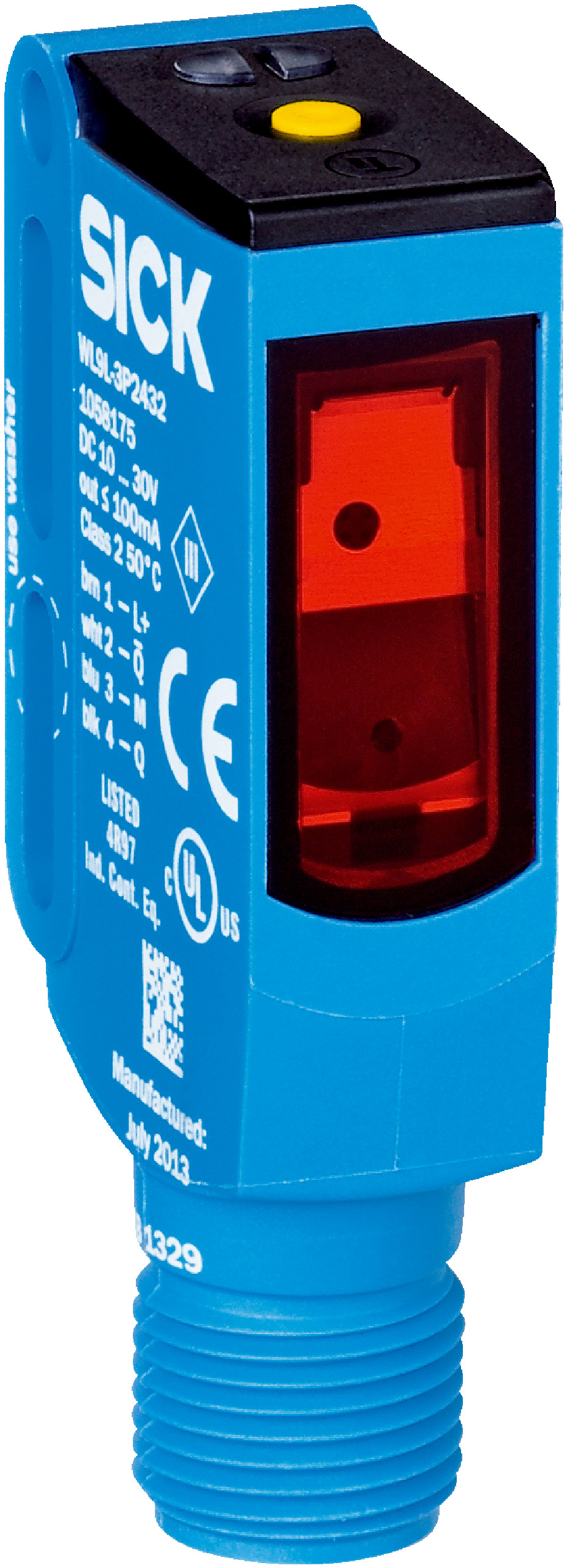

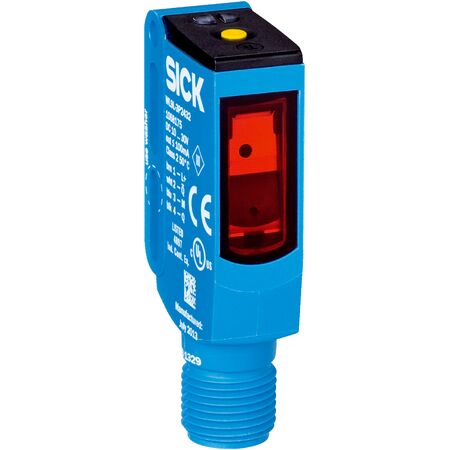

Photoelectric Retro-Reflective Sensor WL9LG-3P2452 | IP66, IP67, IP69K | Fast Response Time | by SICK
The WL9LG-3P2452 Photoelectric Retro-Reflective Sensor is designed for precise object detection in industrial automation. With a fast response time of ≤ 0.5 ms and a high protection rating of IP66, IP67, and IP69K, it ensures reliable performance in challenging environments. Ideal for detecting small and transparent objects, this sensor features a visible red laser light source and an easy-to-use single teach-in button for quick adjustments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP, complementary
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1,000 Hz
- Connection type: Male connector M12, 4-pin
- Protection class: III
- Housing material: Plastic, VISTAL®
- Optics material: Plastic, PMMA
- Enclosure rating: IP66, IP67, IP69K
- Operating temperature: -10 °C to +50 °C (extended -30 °C to +55 °C)
- Storage temperature: -30 °C to +70 °C
- Laser class: 1 (IEC 60825-1)
- Dimensions (H x L x W): 52.2mm x 23.6mm x 12.2mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with autocollimation/coaxial optics
- Visible red laser light source with 650 nm wavelength
- Single teach-in button for easy adjustment
- AutoAdapt feature for optimized sensing
- High protection rating with IP66, IP67, and IP69K
- Polarizing filter included to reduce false signals
- Fast response time of ≤ 0.5 ms and switching frequency of 1,000 Hz
- Complementary PNP output with light/dark switching mode
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with safety standards.
Applications
- Detecting small objects
- Detecting transparent objects
- Industrial automation and safety systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient laser technology reduces power consumption
- Durable IP69K rated housing minimizes environmental impact by extending product lifespan
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WL9LG-3P2452 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and safety detection applications.
