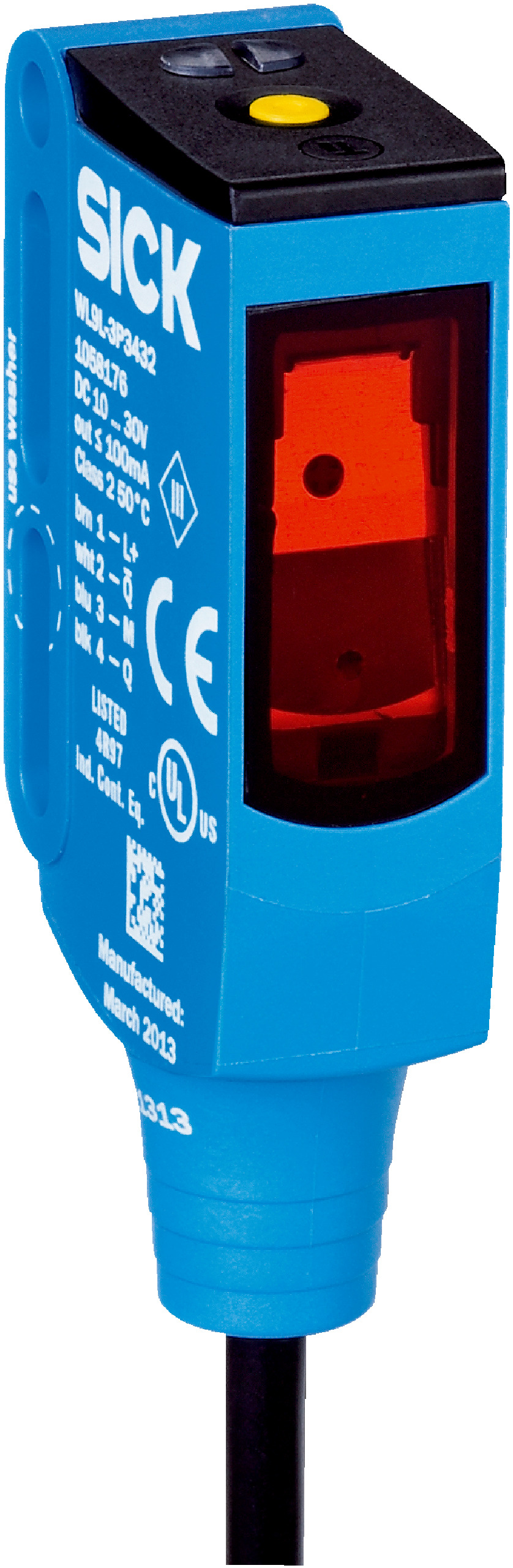

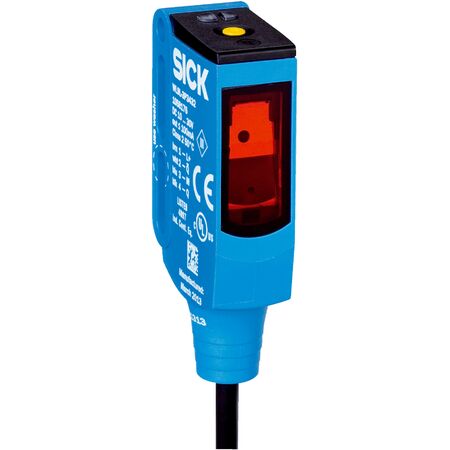

Photoelectric Retro-Reflective Sensor WL9L-3P1132 | IP66, IP67, IP69K Rated | 12m Sensing Range | Fast Response Time | by SICK
The Photoelectric Retro-Reflective Sensor WL9L-3P1132 is designed for precise object detection in industrial automation. With a sensing range of up to 12 meters and a fast response time of ≤ 0.5 ms, it ensures reliable performance. Its robust IP66, IP67, and IP69K rated enclosure provides excellent protection against environmental factors, making it ideal for manufacturing lines and automated systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP complementary
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1000 Hz
- Connection: 4-wire cable, 2 m length, PVC material
- Protection class: III
- Operating temperature: -10 °C to +50 °C (extended -30 °C to +55 °C)
- Storage temperature: -30 °C to +70 °C
- Laser class: 1 (IEC 60825-1)
- Enclosure rating: IP66, IP67, IP69K
- Housing material: Plastic VISTAL®
- Optics material: Plastic PMMA
- Light spot size: Ø 1 mm at 500 mm distance
- Dimensions (H x L x W): 50mm x 23.6mm x 12.2mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with autocollimation/coaxial optics
- Visible red laser light source with 650 nm wavelength
- Sensing range up to 12 meters without reflector
- Single teach-in button for easy adjustment
- High switching frequency of 1000 Hz and fast response time ≤ 0.5 ms
- IP66, IP67, and IP69K rated enclosure for robust protection
- Polarizing filter included to reduce interference
- Complementary PNP output with light/dark switching mode
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for object detection
- Small object detection in manufacturing lines
- Safety and monitoring in automated systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient laser technology reduces power consumption
- Durable IP69K rated housing minimizes environmental damage and waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK WL9L-3P1132 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
