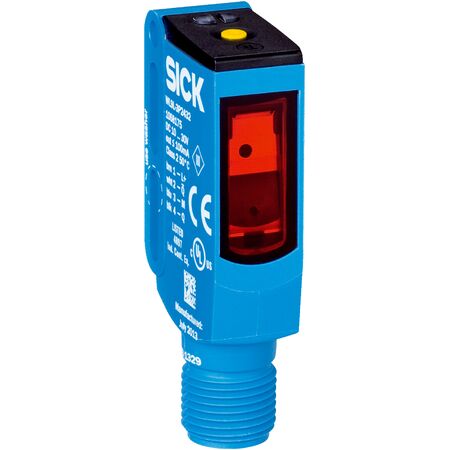

Photoelectric Retro-Reflective Sensor | IP66, IP67, IP69K Rated | 12m Sensing Range | Fast Response Time | by SICK
The Photoelectric Retro-Reflective Sensor WL9L-3P2432S03 is designed for precise object detection in industrial automation. With a sensing range of up to 12 meters and a fast response time of ≤ 0.5 ms, it ensures reliable performance in harsh environments. Featuring a durable IP66, IP67, and IP69K rated housing, this sensor is perfect for manufacturing lines and safety control systems, making it an essential tool for efficient operations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP complementary
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 7 Hz
- Connection type: Male M12, 4-pin connector
- Protection class: III
- Enclosure rating: IP66, IP67, IP69K
- Operating temperature: -10 °C to +50 °C (extended -30 °C to +55 °C)
- Storage temperature: -30 °C to +70 °C
- Laser class: 1 (IEC 60825-1)
- Dimensions (H x L x W): 52.2mm x 23.6mm x 12.2mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with autocollimation/coaxial optics
- Visible red laser light source with 650 nm wavelength
- Sensing range up to 12 meters without reflector
- Single teach-in button for easy adjustment
- Off delay of 130 ms
- High protection rating IP66, IP67, IP69K for harsh environments
- Plastic VISTAL® housing and PMMA optics material
- Polarizing filter included
- Fast response time ≤ 0.5 ms and switching frequency of 7 Hz
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper sensor alignment and electrical connection.
Applications
- Industrial automation for object detection
- Small object detection in manufacturing lines
- Safety and control systems requiring precise sensing
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient laser technology reduces power consumption
- Durable IP69K rated housing minimizes replacement frequency and waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK WL9L-3P2432S03 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
