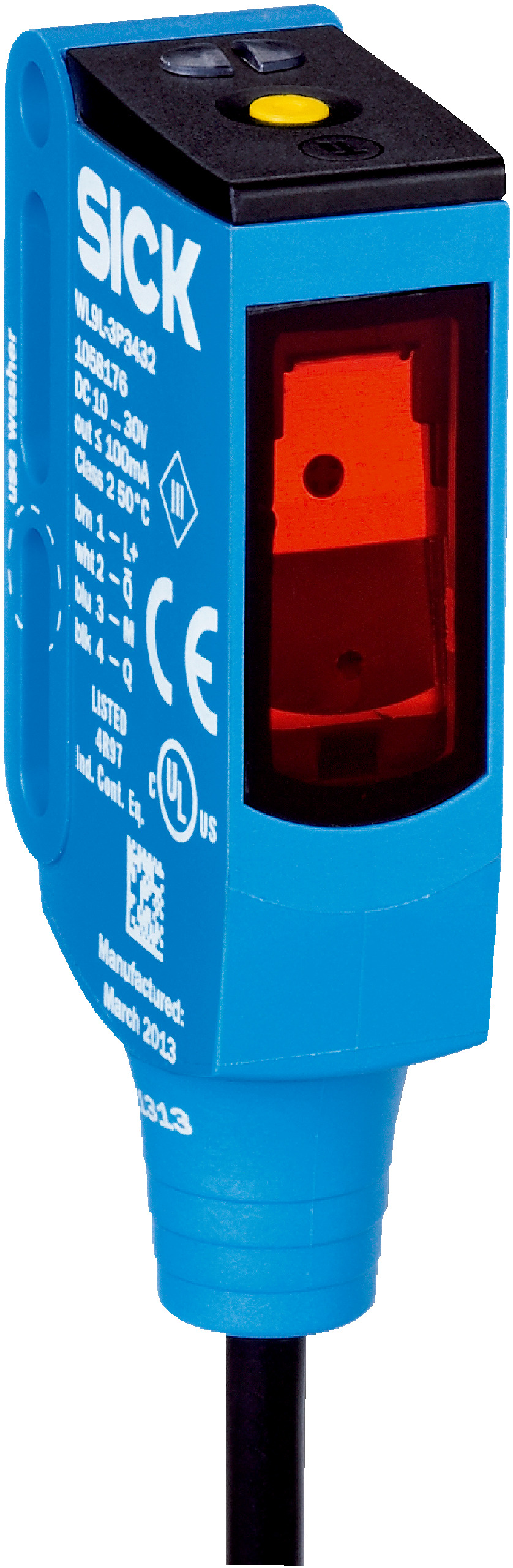

Photoelectric Retro-Reflective Sensor WL9LG-3P1132 | IP66, IP67, IP69K Rated | 4.5m Sensing Range | Fast Response Time | by SICK
The WL9LG-3P1132 Photoelectric Retro-Reflective Sensor is designed for precise object detection, featuring a sensing range of up to 4.5 meters and a fast response time of ≤ 0.5 ms. Ideal for industrial automation, this sensor boasts an IP66, IP67, and IP69K rated enclosure for robust protection against environmental factors, ensuring reliable performance in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP complementary
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1000 Hz
- Connection type: 4-wire cable, 2 m length
- Cable material: Plastic, PVC
- Conductor cross section: 0.14 mm²
- Protection class: III
- Housing material: Plastic, VISTAL®
- Optics material: Plastic, PMMA
- Enclosure rating: IP66, IP67, IP69K
- Operating temperature: -10°C to +50°C (standard), -30°C to +55°C (extended)
- Storage temperature: -30°C to +70°C
- Laser class: 1 (IEC 60825-1)
- Light spot size: Ø 1 mm at 500 mm distance
- Mounting hole: M3
- Dimensions (H x L x W): 50mm x 23.6mm x 12.2mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with autocollimation/coaxial optics
- Visible red laser light source with 650 nm wavelength
- Sensing range up to 4.5 meters without reflector
- Single teach-in button for easy adjustment
- AutoAdapt feature for optimized detection
- High switching frequency of 1000 Hz and fast response time ≤ 0.5 ms
- IP66, IP67, and IP69K rated enclosure for robust protection
- Polarizing filter included to reduce interference
- Complementary PNP switching output with light/dark switching mode
- Wide operating temperature range from -30°C to +55°C (extended)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with photoelectric sensor setup and electrical safety standards.
Applications
- Detecting small objects
- Detecting transparent objects
- Industrial automation and safety systems
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient laser technology reduces power consumption
- Durable IP69K rated housing minimizes environmental damage and extends product life
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK WL9LG-3P1132 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
