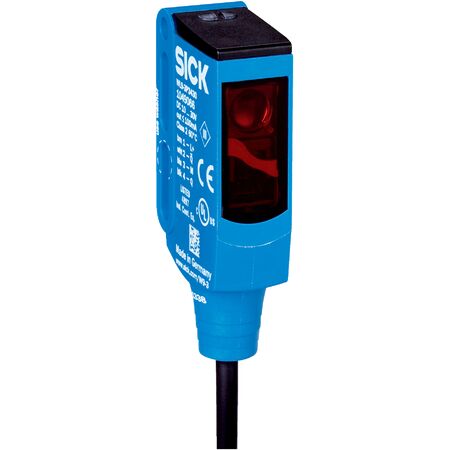

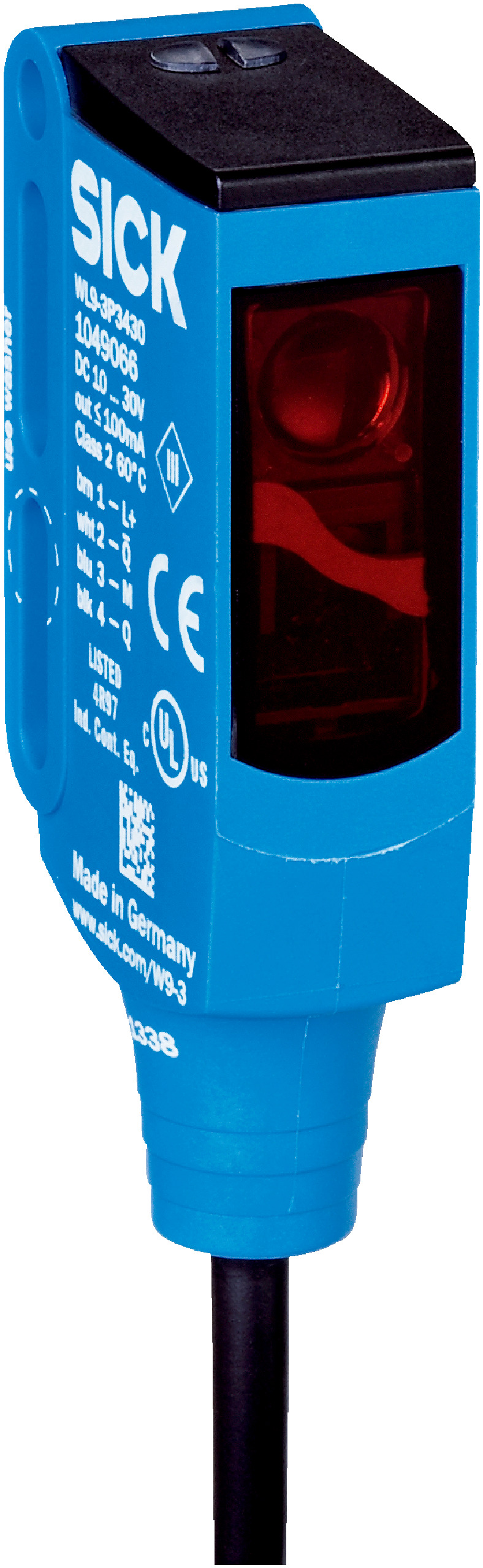

Photoelectric Retro-Reflective Sensor | IP66/IP67/IP69K Rated | 4m Sensing Range | Fast Response Time | by SICK
The Photoelectric Retro-Reflective Sensor WL9-3P1030S17 is designed for industrial automation, featuring a robust IP66/IP67/IP69K rated housing and a sensing range of up to 4 meters without a reflector. With a high switching frequency of 1000 Hz and a fast response time of under 0.5 ms, this sensor is perfect for safety and monitoring in manufacturing processes, ensuring reliable object detection in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP, light switching mode
- Maximum output current: ≤ 100 mA
- Response time: < 0.5 ms
- Switching frequency: 1000 Hz
- Connection: 4-wire cable, 2.6 m length, PVC material
- Protection class: III
- Housing material: Plastic, VISTAL®
- Optics material: Plastic, PMMA
- Enclosure rating: IP66, IP67, IP69K
- Operating temperature: -40°C to +60°C
- Storage temperature: -40°C to +75°C
- Light wavelength: 650 nm
- Light spot size: Ø 45 mm at 1.5 m
- Dimensions (H x L x W): 50mm x 23.6mm x 12.2mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with autocollimation/coaxial optics
- Visible red light with PinPoint LED light source
- Sensing range up to 4 meters without reflector
- High switching frequency of 1000 Hz and fast response time under 0.5 ms
- Robust plastic housing with IP66, IP67, and IP69K protection ratings
- Polarizing filter and special device features included
- Wide ambient operating temperature range from -40°C to +60°C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and sensor alignment.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and conveyor systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable design minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WL9-3P1030S17 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
