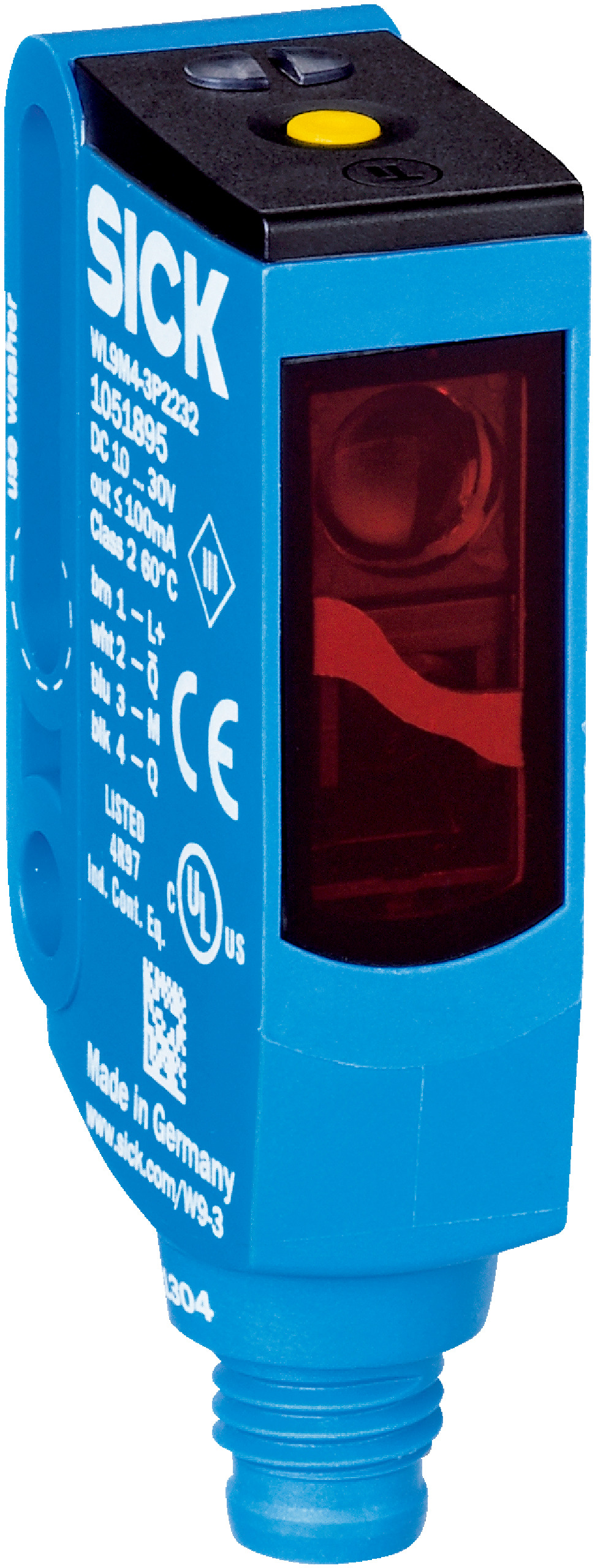

Photoelectric Retro-Reflective Sensor | IP66/IP67/IP69K Rated | 5m Sensing Range | 1000 Hz Switching Frequency | by SICK
The Photoelectric Retro-Reflective Sensor WL9M4-3P2234 is designed for industrial automation, featuring a robust IP66/IP67/IP69K rating and a sensing range of up to 5 meters without a reflector. With a high switching frequency of 1000 Hz and a response time under 0.5 ms, this sensor is perfect for small object detection in harsh environments, ensuring reliable performance and durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP, light switching mode
- Maximum output current: ≤ 100 mA
- Response time: < 0.5 ms
- Switching frequency: 1000 Hz
- Connection type: Male M8, 4-pin connector
- Protection class: III
- Enclosure rating: IP66, IP67, IP69K
- Operating temperature: -40°C to +60°C
- Storage temperature: -40°C to +75°C
- Housing material: Plastic (VISTAL®)
- Optics material: Plastic (PMMA)
- Light source: PinPoint LED
- Wavelength: 650 nm
- Light spot size at 1.5 m: Ø 45 mm
- Mounting hole: M4
- Dimensions (H x L x W): 49.8mm x 23.6mm x 12.2mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with autocollimation/coaxial optics
- Visible red light with PinPoint LED at 650 nm wavelength
- Sensing range up to 5 meters without reflector
- Single teach-in button and cable adjustment
- High switching frequency of 1000 Hz and response time under 0.5 ms
- Robust plastic housing (VISTAL®) with IP66, IP67, and IP69K protection
- Operating temperature range from -40°C to +60°C
- Polarizing filter included for reliable detection
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with photoelectric sensor wiring and safety standards.
Applications
- Industrial automation for object detection
- Small object detection in manufacturing lines
- Use in harsh environments requiring IP66/IP67/IP69K protection
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable design minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WL9M4-3P2234 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and small object detection applications.
