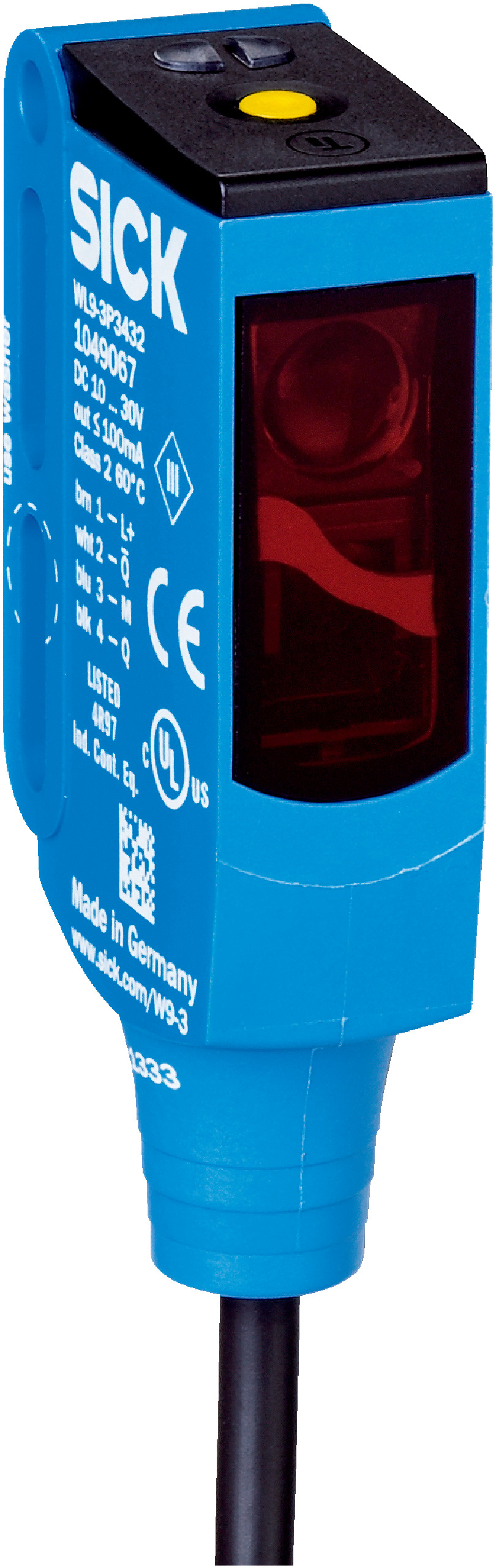

Photoelectric Retro-Reflective Sensor WL9-3P1232 | IP66, IP67, IP69K Rated | 5m Sensing Range | by SICK
The Photoelectric Retro-Reflective Sensor WL9-3P1232 is designed for industrial automation, featuring a robust IP66, IP67, and IP69K rated housing. With a sensing range of up to 5 meters and a high switching frequency of 1,000 Hz, it ensures reliable object detection in various applications. Ideal for safety and monitoring in manufacturing processes, this sensor is built to withstand extreme temperatures from -40°C to +60°C.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Retro-Reflective Sensor WL9-3P1232 | IP66, IP67, IP69K Rated | 5m Sensing Range | by SICK
Brand: SICK
SKU: 1049057
Alternatively Known As: Photoelectric sensor, Retro-reflective sensor, SICK WL9 sensor, Industrial object sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP, complementary
- Output current max: ≤ 100 mA
- Response time: < 0.5 ms
- Switching frequency: 1,000 Hz
- Connection type: 4-wire cable, 5 m length
- Cable material: Plastic, PVC
- Conductor cross section: 0.14 mm²
- Circuit protection: Types A, B, C
- Protection class: III
- Housing material: Plastic, VISTAL®
- Optics material: Plastic, PMMA
- Enclosure rating: IP66, IP67, IP69K
- Operating temperature: -40 °C to +60 °C
- Storage temperature: -40 °C to +75 °C
- Light spot size at 1.5 m: Ø 45 mm
- Wave length: 650 nm
- Dimensions (H x L x W): 50mm x 23.6mm x 12.2mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with visible red light
- PinPoint LED light source with 650 nm wavelength
- Sensing range up to 5 meters without reflector
- Single teach-in button for easy adjustment
- High switching frequency of 1,000 Hz
- Robust plastic housing with IP66, IP67, and IP69K protection ratings
- Wide ambient operating temperature range from -40°C to +60°C
- Polarizing filter included for reliable detection
- Complementary PNP switching output with light/dark switching mode
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and conveyor systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable design minimizes waste and replacement frequency
Warranty Information
Warranty details available upon request from the manufacturer.
Available Now
The SICK WL9-3P1232 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
