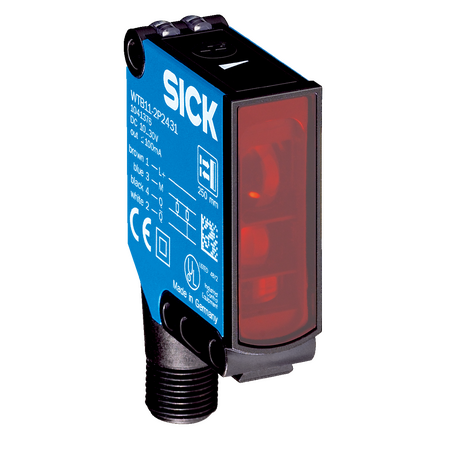

Photoelectric Retro-Reflective Sensor | IP66, IP67, IP69K Rated | Fast Response Time | PNP Output | by SICK
The Photoelectric Retro-Reflective Sensor is designed for industrial automation, featuring a sensing range of 0.15 m to 10 m and a fast response time of ≤ 2.5 ms. With an IP66, IP67, and IP69K enclosure rating, it's perfect for safety and monitoring in manufacturing processes, ensuring reliable object detection in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Photoelectric sensor, Retro-reflective sensor, Optical sensor, Industrial photo sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP, complementary
- Output current max: ≤ 100 mA
- Response time: ≤ 2.5 ms
- Switching frequency: 200 Hz
- Connection type: Male connector M12, 4-pin
- Protection class: III
- Housing material: Plastic, ABS
- Optics material: Plastic, PMMA
- Enclosure rating: IP66, IP67, IP69K
- Ambient operating temperature: –30 °C to +60 °C
- Ambient storage temperature: –40 °C to +75 °C
- Photobiological safety certified (DIN EN 62471)
- Dimensions (H x L x W): 49mm x 42mm x 16mm
- Weight: 0.12 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Sensing range from 0.15 m to 8 m, max 10 m
- Visible red light LED with wavelength 640 nm
- Rectangular housing design with IP66, IP67, and IP69K enclosure rating
- Fast response time of ≤ 2.5 ms and switching frequency of 200 Hz
- Complementary PNP output with light/dark switching mode
- Polarisation filter included for enhanced detection
- Wide ambient operating temperature range from –30 °C to +60 °C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable housing materials extend product lifespan, reducing waste
- Complies with China RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK WL11-2P2430 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
