Photoelectric Retro-Reflective Sensor WL9M4-3V2232 | IP66, IP67, IP69K Rated | Fast Response Time < 0.5 ms | by SICK
The Photoelectric Retro-Reflective Sensor WL9M4-3V2232 is designed for industrial automation, featuring a high switching frequency of 1,000 Hz and a fast response time of under 0.5 ms. With robust IP66, IP67, and IP69K ratings, this sensor is perfect for detecting small objects in material handling and quality control applications, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

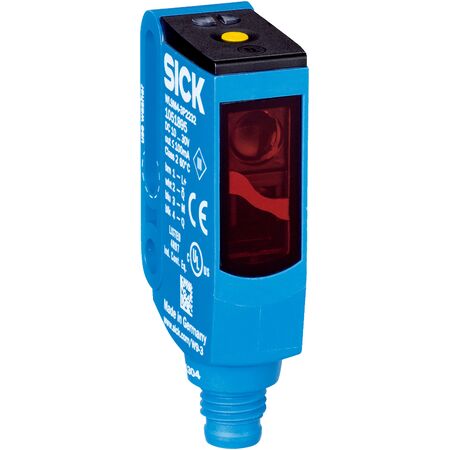

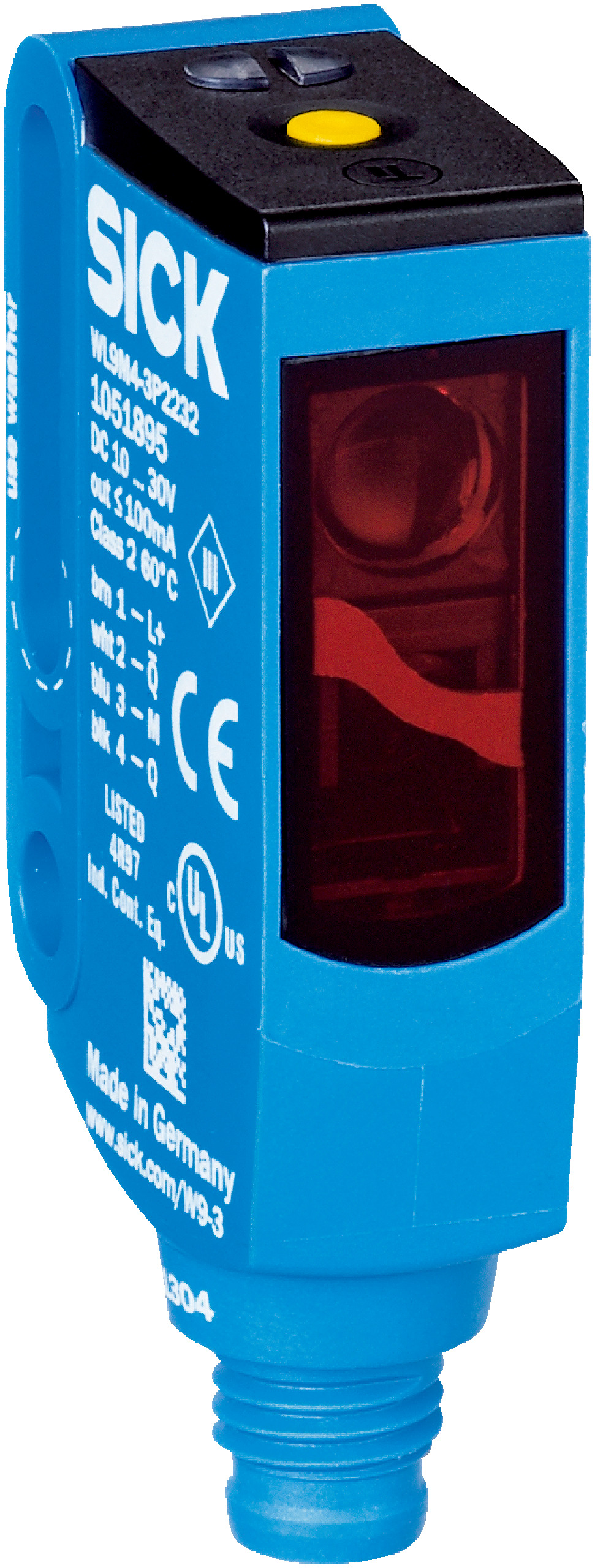

Product Name/Title: Photoelectric Retro-Reflective Sensor WL9M4-3V2232 | IP66, IP67, IP69K Rated | Fast Response Time < 0.5 ms | by SICK
Brand: SICK
SKU: 1051909
Alternatively Known As: Photoelectric sensor, Retro-reflective sensor, SICK WL9M4 sensor, Industrial object detector
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP, dark switching mode
- Maximum output current: ≤ 100 mA
- Response time: < 0.5 ms
- Switching frequency: 1,000 Hz
- Connection type: Male M8, 4-pin connector
- Protection class: III
- Housing material: Plastic, VISTAL®
- Optics material: Plastic, PMMA
- Enclosure rating: IP66, IP67, IP69K
- Operating temperature: -40°C to +60°C
- Storage temperature: -40°C to +75°C
- Wave length: 650 nm
- Light spot size at 1.5 m: Ø 45 mm
- Mounting hole: M4
- Dimensions (H x L x W): 49.8mm x 23.6mm x 12.2mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with autocollimation/coaxial optics
- Visible red light with PinPoint LED light source
- Single teach-in button for easy adjustment
- High switching frequency of 1,000 Hz and fast response time under 0.5 ms
- Robust plastic housing with IP66, IP67, and IP69K enclosure ratings
- Wide ambient operating temperature range from -40°C to +60°C
- Polarizing filter included to reduce false triggering
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with photoelectric sensor setup and electrical safety standards.
Applications
- Industrial automation for detecting small objects
- Material handling and packaging systems
- Quality control and inspection processes
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable design minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK WL9M4-3V2232 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
