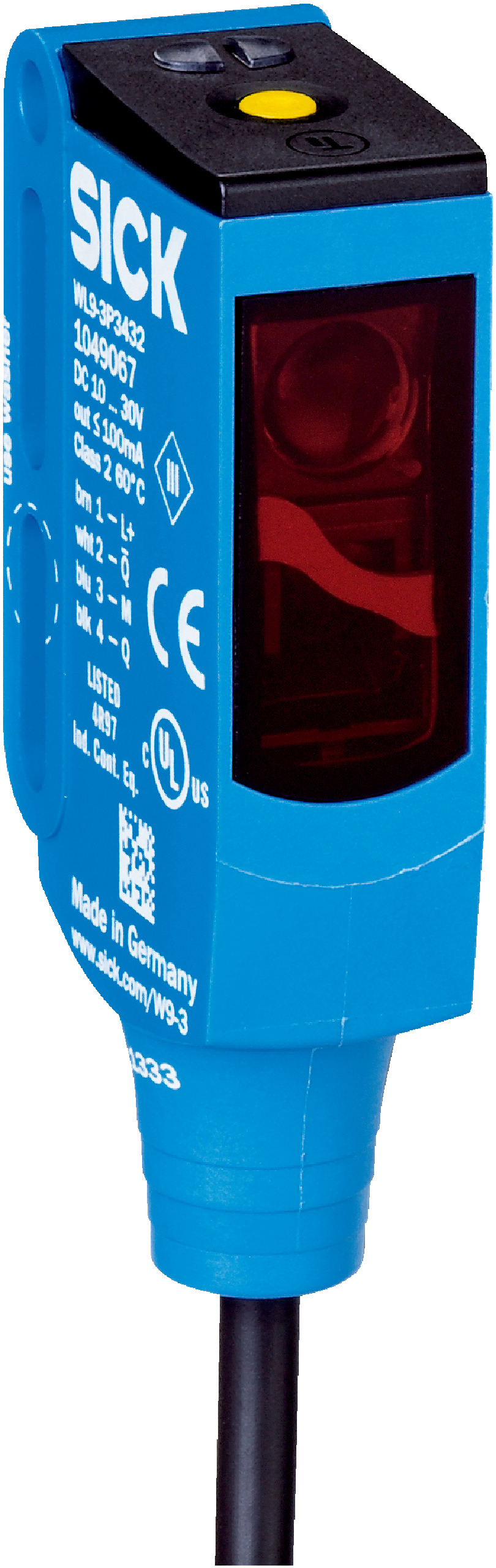

Photoelectric Retro-Reflective Sensor WL9-3P3162 | IP66, IP67, IP69K Rated | Fast Response Time < 0.5 ms | by SICK
The Photoelectric Retro-Reflective Sensor WL9-3P3162 is designed for precise object detection in industrial automation. With a sensing range of 0 m to 0.3 m and a high switching frequency of 1,000 Hz, it ensures reliable performance in demanding environments. Its robust IP66, IP67, and IP69K rated housing and wide operating temperature range from -40°C to +60°C make it ideal for various applications, ensuring durability and efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Retro-Reflective Sensor WL9-3P3162 | IP66, IP67, IP69K Rated | Fast Response Time < 0.5 ms | by SICK
Brand: SICK
SKU: 1054424
Alternatively Known As: Photoelectric sensor, Retro-reflective sensor, Object detection sensor, SICK WL9 sensor
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor
- Sensing range: 0 m to 0.3 m without reflector
- Light source: PinPoint LED, wavelength 650 nm
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP, light/dark switching
- Output current max: ≤ 100 mA
- Response time: < 0.5 ms
- Switching frequency: 1,000 Hz
- Connection: Cable with M8 3-pin connector, 120 mm length
- Housing material: Plastic VISTAL®, Optics material: Plastic PMMA
- Protection class: III
- Enclosure rating: IP66, IP67, IP69K
- Operating temperature: -40°C to +60°C
- Storage temperature: -40°C to +75°C
- Weight: 80 g
- Mounting hole: M3
- Light spot size: Ø 2 mm at 35 mm distance
- Circuit protection: A, B, C
- Dimensions (H x L x W): 50mm x 23.6mm x 12.2mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with focused optics
- Visible red light with PinPoint LED light source
- Single teach-in button for easy adjustment
- High switching frequency of 1,000 Hz and fast response time under 0.5 ms
- Robust plastic housing with IP66, IP67, and IP69K enclosure ratings
- Wide ambient operating temperature range from -40°C to +60°C
- Polarizing filter included to reduce false triggers
- Cable with M8 3-pin connector for easy installation
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician familiar with photoelectric sensor systems to ensure proper setup and safety compliance.
Applications
- Industrial automation for detecting small objects
- Manufacturing processes requiring precise object detection
- Environments needing reliable photoelectric sensing with focused optics
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable design minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WL9-3P3162 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and precise object detection applications.
