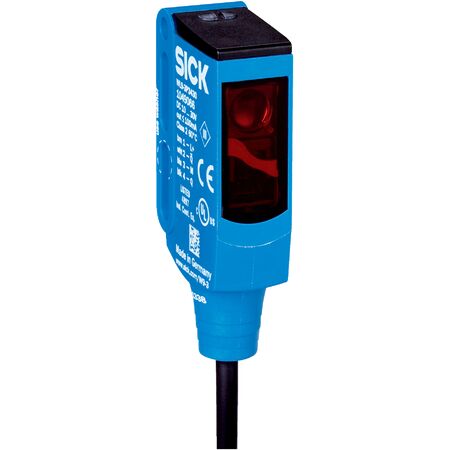

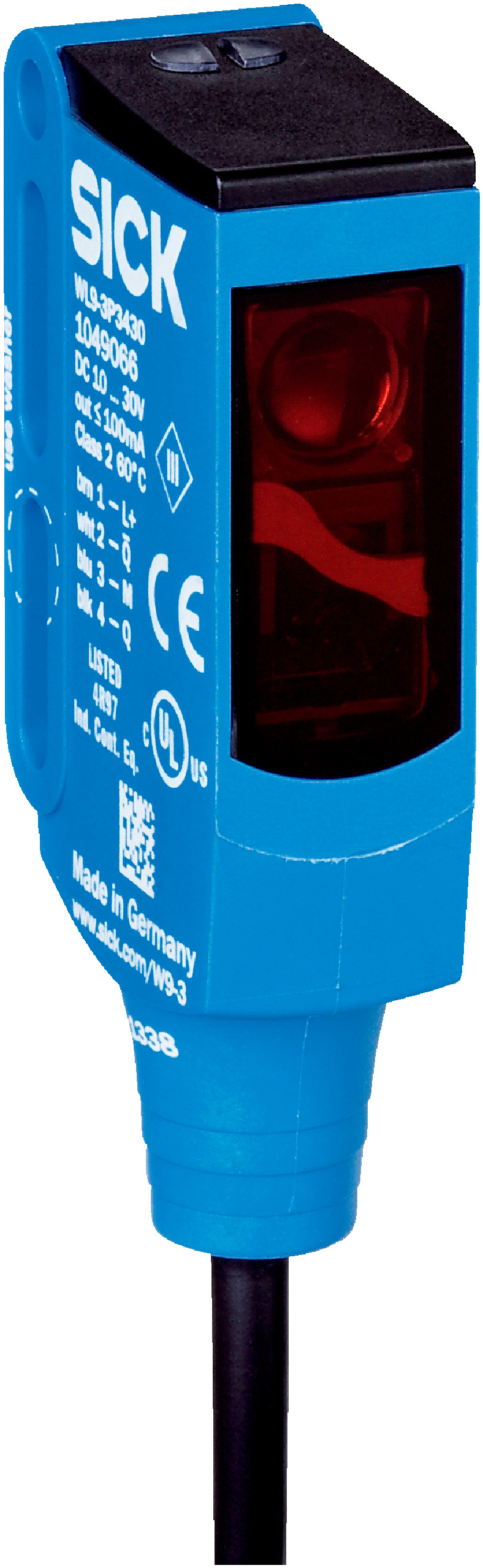

Photoelectric Retro-Reflective Sensor WL9-3P3130 | IP66, IP67, IP69K Rated | Fast Response Time | by SICK
The Photoelectric Retro-Reflective Sensor WL9-3P3130 is designed for industrial automation, featuring a sensing range of up to 4 meters and a fast response time of under 0.5 ms. With IP66, IP67, and IP69K protection ratings, this sensor is perfect for safety and monitoring in manufacturing processes, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP complementary
- Output current max: ≤ 100 mA
- Response time: < 0.5 ms
- Switching frequency: 1000 Hz
- Connection: Cable with M8 3-pin connector, 120 mm length
- Housing material: Plastic VISTAL®
- Optics material: Plastic PMMA
- Protection class: III
- Enclosure rating: IP66, IP67, IP69K
- Operating temperature: -40°C to +60°C
- Storage temperature: -40°C to +75°C
- Light spot size at 1.5 m: Ø 45 mm
- Wave length: 650 nm
- Dimensions (H x L x W): 50mm x 23.6mm x 12.2mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with visible red light
- PinPoint LED light source with 650 nm wavelength
- Sensing range up to 4 meters without reflector
- Rectangular plastic housing with IP66, IP67, and IP69K protection ratings
- Fast response time under 0.5 ms and switching frequency of 1000 Hz
- Polarizing filter included for enhanced detection
- Wide ambient operating temperature range from -40°C to +60°C
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper wiring and sensor alignment.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Long service life minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK WL9-3P3130 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
