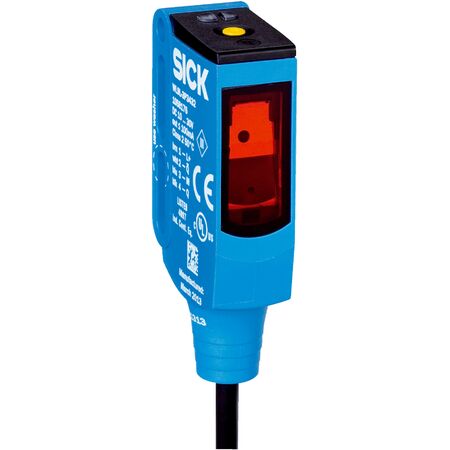

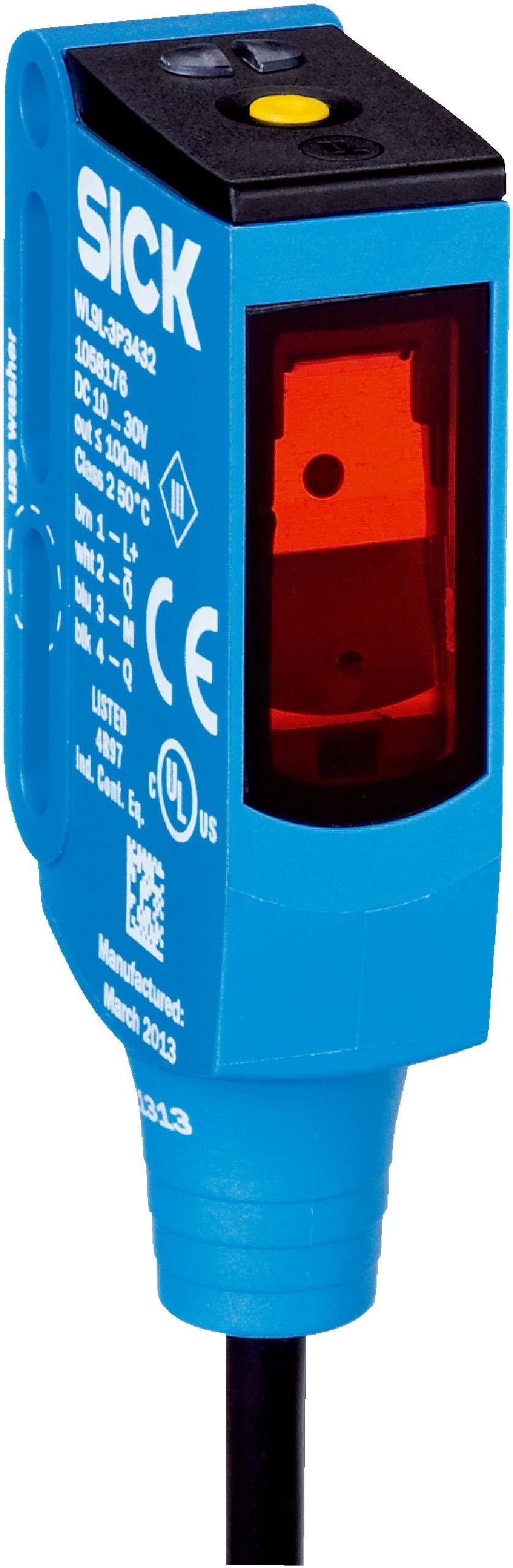

Photoelectric Retro-Reflective Sensor WL9LG-3P1152 | IP66/IP67/IP69K Rated | Fast Response Time | by SICK
The WL9LG-3P1152 Photoelectric Retro-Reflective Sensor is designed for industrial automation, featuring a sensing range of up to 3.5 meters and a fast response time of ≤ 0.5 ms. With high protection ratings of IP66, IP67, and IP69K, this sensor is perfect for detecting small and transparent objects in harsh environments, ensuring reliable performance and safety in your processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP complementary
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1000 Hz
- Connection: 4-wire cable, 2 m length, PVC insulation
- Protection class: III
- Housing material: Plastic VISTAL®
- Optics material: Plastic PMMA
- Enclosure rating: IP66, IP67, IP69K
- Operating temperature: -10 °C to +50 °C (extended -30 °C to +55 °C)
- Storage temperature: -30 °C to +70 °C
- Laser class: 1 (IEC 60825-1)
- Dimensions (H x L x W): 50mm x 23.6mm x 12.2mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with autocollimation/coaxial optics
- Visible red laser light source with 650 nm wavelength
- Sensing range up to 3.5 meters without reflector
- Single teach-in button for easy adjustment
- AutoAdapt feature for optimized sensing
- High protection rating IP66, IP67, IP69K for harsh environments
- Polarizing filter to reduce false triggering
- Fast response time of ≤ 0.5 ms and switching frequency of 1000 Hz
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with laser safety and electrical wiring standards to ensure proper setup and compliance.
Applications
- Industrial automation for object detection
- Detecting small and transparent objects
- Machine safety and process control
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient laser technology reduces power consumption
- Durable IP69K rated housing minimizes environmental impact by extending product life
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK WL9LG-3P1152 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
