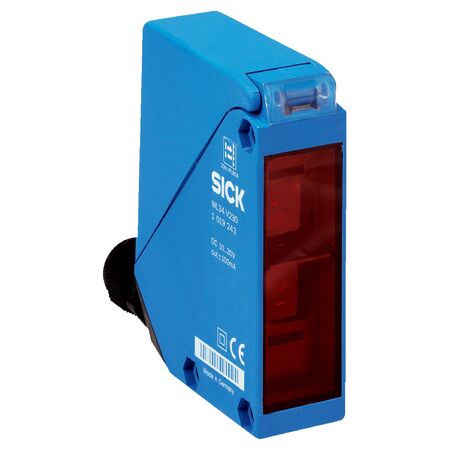

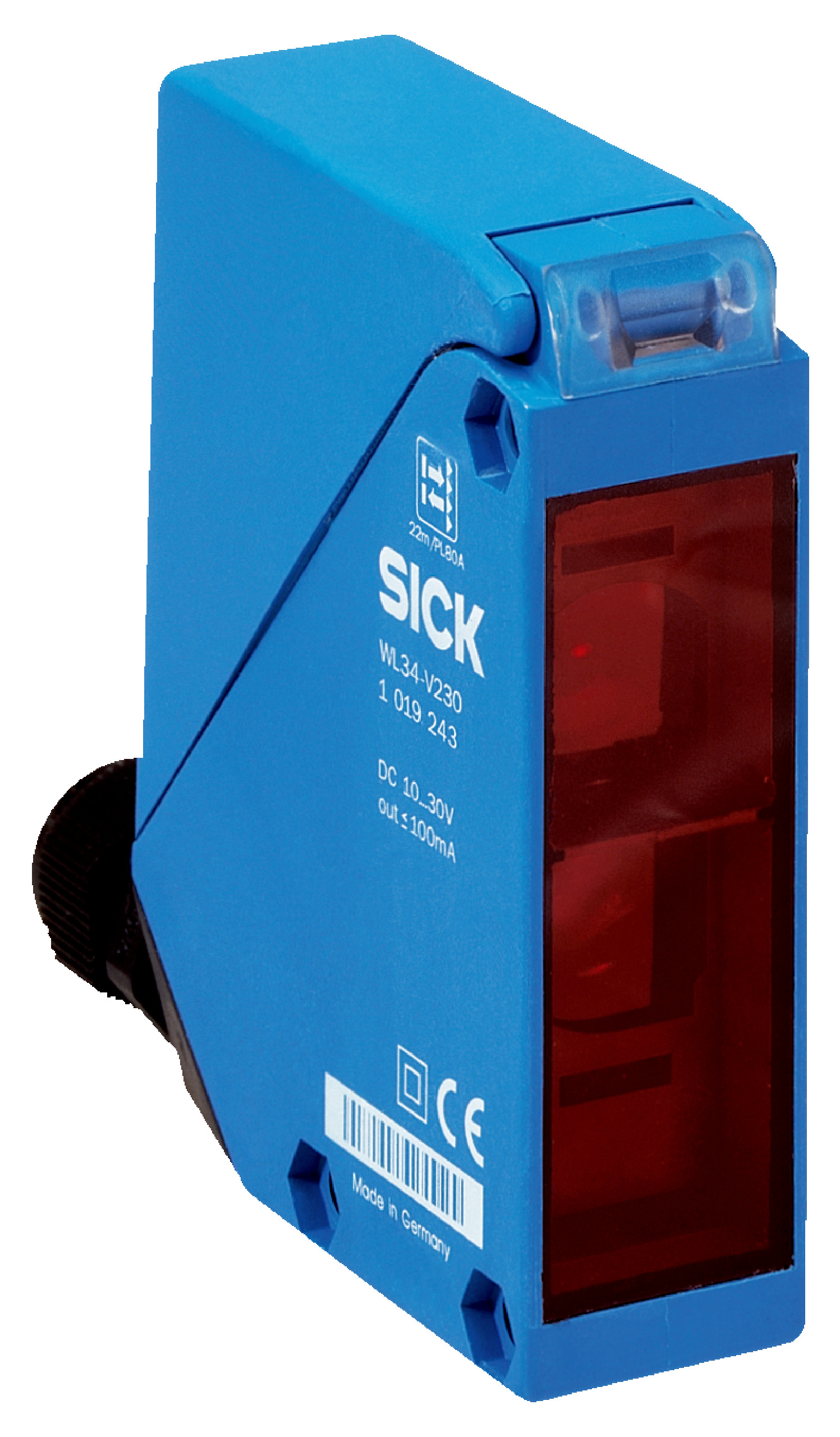

Photoelectric Retro-Reflective Sensor WL34-B440 | IP67 Rated | 0.03m to 22m Sensing Range | 1000 Hz Switching Frequency | by SICK
The Photoelectric Retro-Reflective Sensor WL34-B440 is designed for industrial automation, offering a sensing range from 0.03m to 22m and a high switching frequency of 1000 Hz. With its robust IP67-rated ABS housing and visible red light LED, this sensor ensures reliable object detection and safety monitoring in various applications, making it ideal for manufacturing and material handling systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Retro-Reflective Sensor WL34-B440 | IP67 Rated | 0.03m to 22m Sensing Range | 1000 Hz Switching Frequency | by SICK
Brand: SICK
SKU: 1019246
Alternatively Known As: Photoelectric Sensor, Retro-Reflective Sensor, SICK WL34 Sensor, Industrial Object Sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 50 mA
- Switching output: NPN and PNP selectable
- Output current max: ≤ 100 mA
- Response time: ≤ 500 µs
- Switching frequency: 1,000 Hz
- Time functions: Off delay and switch-on delay adjustable from 0.5 s to 10 s
- Connection type: Male M12, 4-pin connector
- Circuit protection: Types A, C, D
- Protection class: II
- Enclosure rating: IP67
- Operating temperature: -40°C to +60°C
- Storage temperature: -40°C to +75°C
- Housing material: Plastic, ABS
- Light source: LED with 660 nm wavelength
- Light spot size at 15 m: Ø 250 mm
- Dimensions (H x L x W): 92mm x 70mm x 27mm
- Weight: 0.14 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Visible red light LED with wavelength of 660 nm
- Sensing range from 0.03 m up to 22 m
- Selectable switching modes: light switching and dark switching
- Adjustable potentiometer for sensitivity and delay time
- High switching frequency of 1,000 Hz
- Robust plastic ABS housing with IP67 enclosure rating
- Wide ambient operating temperature range from -40°C to +60°C
- Polarisation filter included for enhanced detection reliability
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician familiar with photoelectric sensor systems to ensure proper setup and compliance with electrical standards.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and packaging systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Long service life minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK WL34-B440 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
