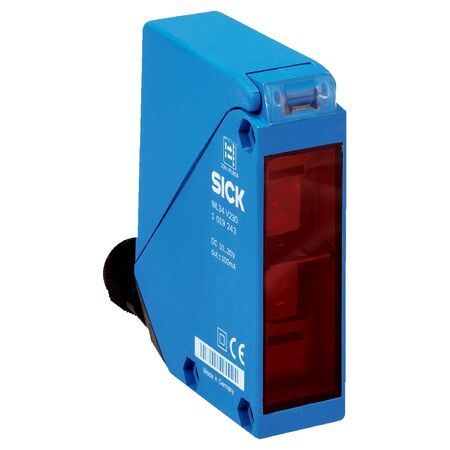

Photoelectric Retro-Reflective Sensor WL34-R230 | IP67 Rated | 0.03m to 22m Sensing Range | Relay Output | by SICK
The WL34-R230 Photoelectric Retro-Reflective Sensor is designed for industrial automation, featuring a sensing range from 0.03m to 22m and a robust IP67 enclosure. With a high switching frequency of 10 Hz and a response time of ≤ 10 ms, it ensures reliable object detection in various applications. Ideal for manufacturing processes and material handling, this sensor is built for durability and efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Retro-Reflective Sensor WL34-R230 | IP67 Rated | 0.03m to 22m Sensing Range | Relay Output | by SICK
Brand: SICK
SKU: 1019249
Alternatively Known As: Photoelectric sensor, Retro-reflective sensor, SICK WL34 sensor, Industrial object sensor
Technical Specifications
- Supply voltage: 20 V AC/DC to 250 V AC/DC
- Power consumption: < 2 VA
- Switching output: Relay, electrically isolated
- Output function: Change-over contacts
- Switching current: 4 A @ 250 V AC, 4 A @ 24 V DC
- Response time: ≤ 10 ms
- Switching frequency: 10 Hz
- Connection type: Terminal connection with M16 gland
- Protection class: II
- Enclosure rating: IP67
- Ambient operating temperature: -40 °C to +60 °C
- Housing material: Plastic, ABS
- Light source: LED, visible red light, 660 nm wavelength
- Sensing range max: 0.03 m to 22 m
- Light spot size at 15 m: Ø 250 mm
- Switching mode selector: Light/dark selectable via potentiometer
- Dimensions (H x L x W): 92mm x 70mm x 27mm
- Weight: 0.14 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Visible red LED light source with 660 nm wavelength
- Sensing range from 0.03 m up to 22 m
- Selectable light/dark switching mode via potentiometer
- Relay output with change-over contacts
- High switching frequency of 10 Hz and response time ≤ 10 ms
- Robust plastic ABS housing with IP67 enclosure rating
- Wide ambient operating temperature range from -40 °C to +60 °C
- Polarisation filter included for enhanced detection reliability
- Terminal connection with M16 gland for secure wiring
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor systems to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and conveyor systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption of less than 2 VA reduces energy usage
- Durable design minimizes waste and replacement frequency
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK WL34-R230 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
