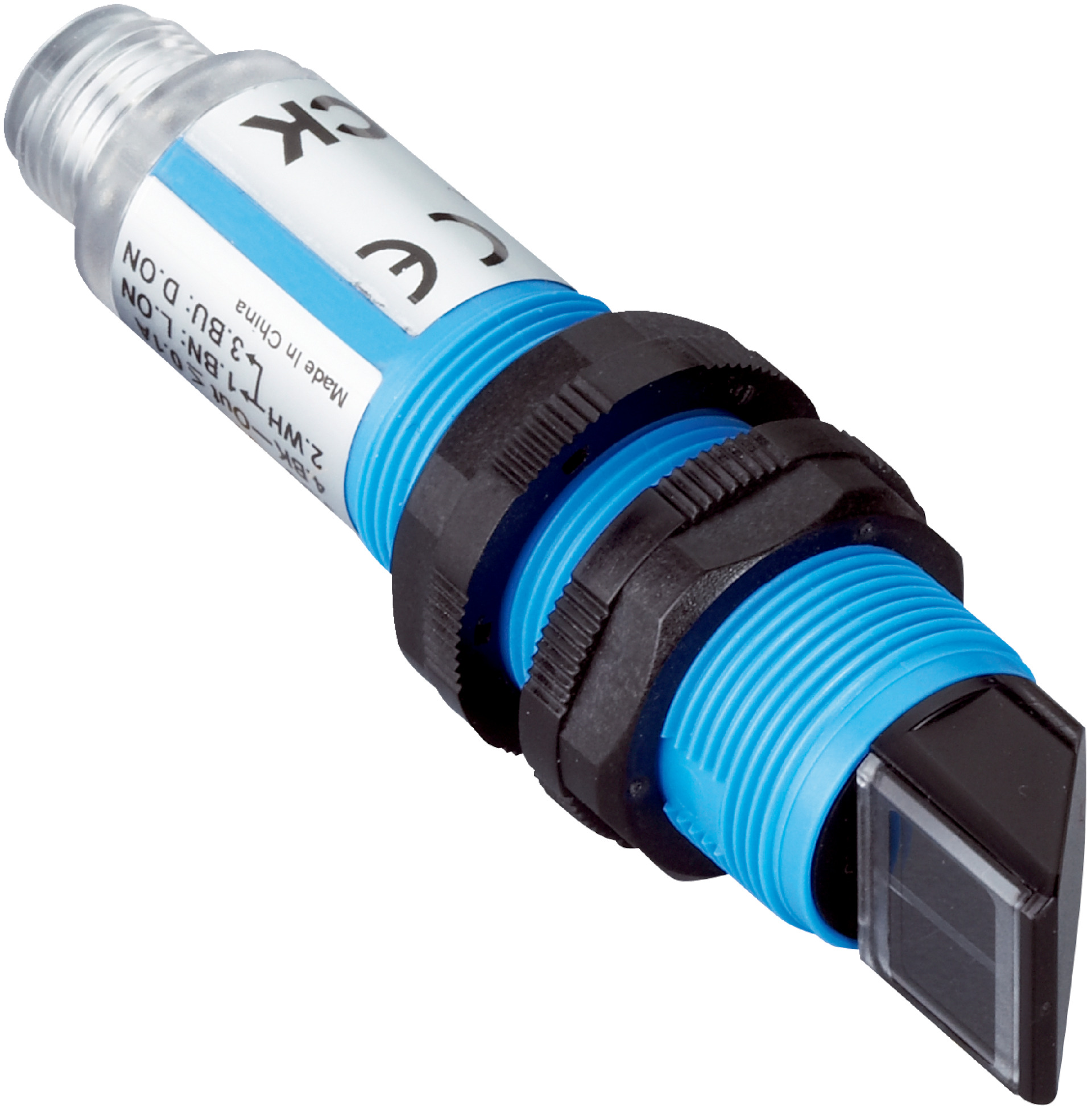

Photoelectric Retro-Reflective Sensor VL180-2P41138 | IP67 Rated | 0.05m to 4.5m Sensing Range | Fast Response Time | by SICK
The Photoelectric Retro-Reflective Sensor VL180-2P41138 is designed for industrial automation, featuring a sensing range of 0.05m to 4.5m and a fast response time of ≤ 0.5 ms. With an IP67 rated enclosure, it ensures reliable performance in harsh environments, making it ideal for object detection and safety monitoring in manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC with ±10% ripple
- Current consumption: 30 mA
- Switching output: PNP, light/dark switching mode
- Output current max: ≤ 100 mA
- Signal voltage PNP HIGH/LOW: Approx. VS – 1.8 V / 0 V
- Response time: ≤ 0.5 ms
- Switching frequency: 1,000 Hz
- Connection type: 4-wire cable, 2 m length, PVC material
- Cable diameter: Ø 3.8 mm, conductor cross section 0.18 mm²
- Circuit protection: Types A, B, D
- Protection class: III
- Polarisation filter included
- Ambient operating temperature: -25 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- MTTFD: 1,982 years
- Dimensions (H x L x W): 18mm x 77mm x 18mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Visible red light LED with wavelength of 645 nm
- Sensing range from 0.05 m to 4.5 m (max 5.5 m)
- Radial optical axis with approx. 4.5° focus and angle of dispersion
- Potentiometer adjustment with 270° sensitivity control
- High switching frequency of 1,000 Hz and fast response time ≤ 0.5 ms
- IP67 rated enclosure for dust and water protection
- Housing made of durable plastic (PBT/PC) and optics made of PMMA
- Includes reflector P250
- Wide ambient operating temperature range from -25 °C to +55 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with photoelectric sensor wiring and safety standards.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption with 30 mA current draw
- Durable IP67 housing reduces need for frequent replacements
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK VL180-2P41138 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
