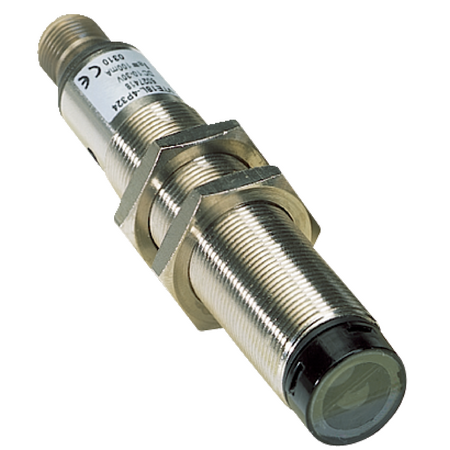

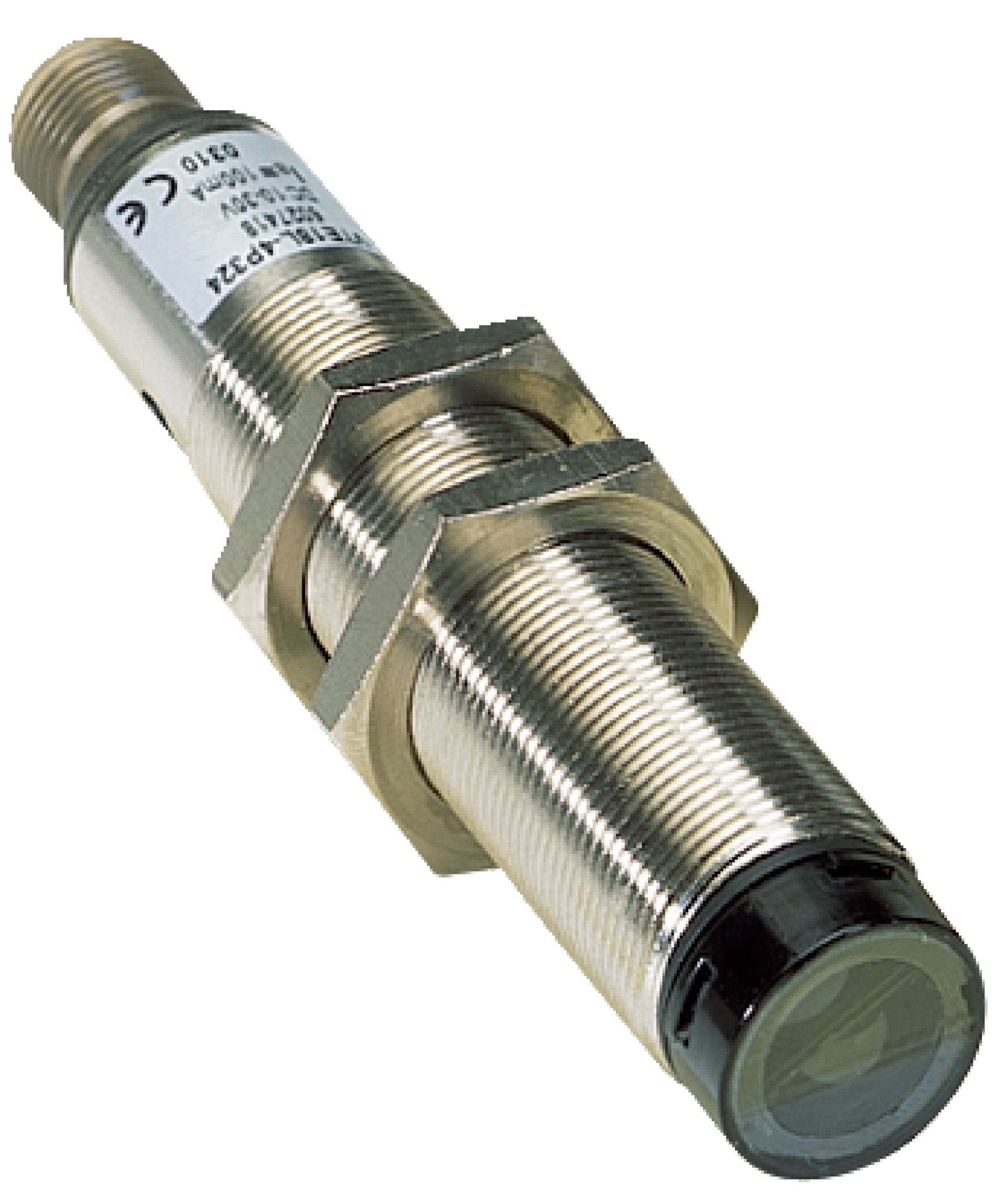

Photoelectric Retro-Reflective Sensor VL18L-4P324 | IP67 Rated | 0.1m to 30m Sensing Range | Fast Response Time | by SICK
The VL18L-4P324 Photoelectric Retro-Reflective Sensor is designed for precise object detection in industrial automation. With a sensing range of 0.1m to 30m and a fast response time of ≤ 0.625 ms, it ensures reliable performance in manufacturing lines. Its IP67 rated enclosure provides excellent dust and water protection, making it ideal for safety and monitoring applications in production environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Photoelectric sensor, Retro-reflective sensor, Laser sensor, Industrial object sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 20 mA
- Switching output: PNP
- Switching mode: Light/dark switching selectable
- Output current max: ≤ 100 mA
- Response time: ≤ 0.625 ms
- Switching frequency: 800 Hz
- Connection type: Male M12, 4-pin connector
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: -15 °C to +55 °C
- Storage temperature: -25 °C to +70 °C
- Laser class: 1 (IEC 60825-1)
- Laser power output: 0.4 mW
- Housing material: Metal, nickel-plated brass with PC optics
- Dimensions (H x L x W): 18mm x 98mm x 18mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Visible red laser light source with 650 nm wavelength
- Sensing range from 0.1 m to 30 m, max 35 m
- High precision focus with 0.04° angle of dispersion
- IP67 rated enclosure for dust and water protection
- Metal housing with nickel-plated brass and polycarbonate optics
- Selectable light/dark switching mode via control input
- Fast response time of ≤ 0.625 ms and switching frequency of 800 Hz
- Polarizing filter included to reduce interference
- Cable and single teach-in button adjustment for sensitivity
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure correct setup and compliance with safety standards.
Applications
- Industrial automation for object detection
- Small object detection in manufacturing lines
- Safety and monitoring in production environments
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient laser technology reduces power consumption
- Durable metal housing extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK VL18L-4P324 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
