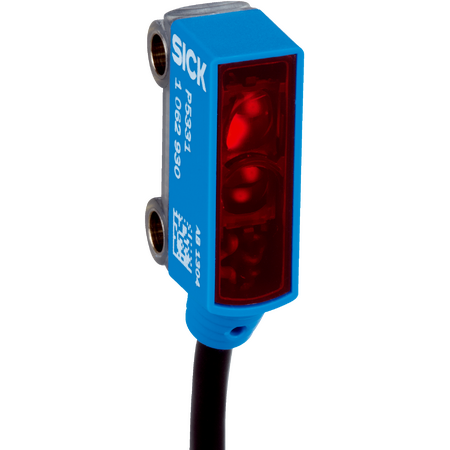

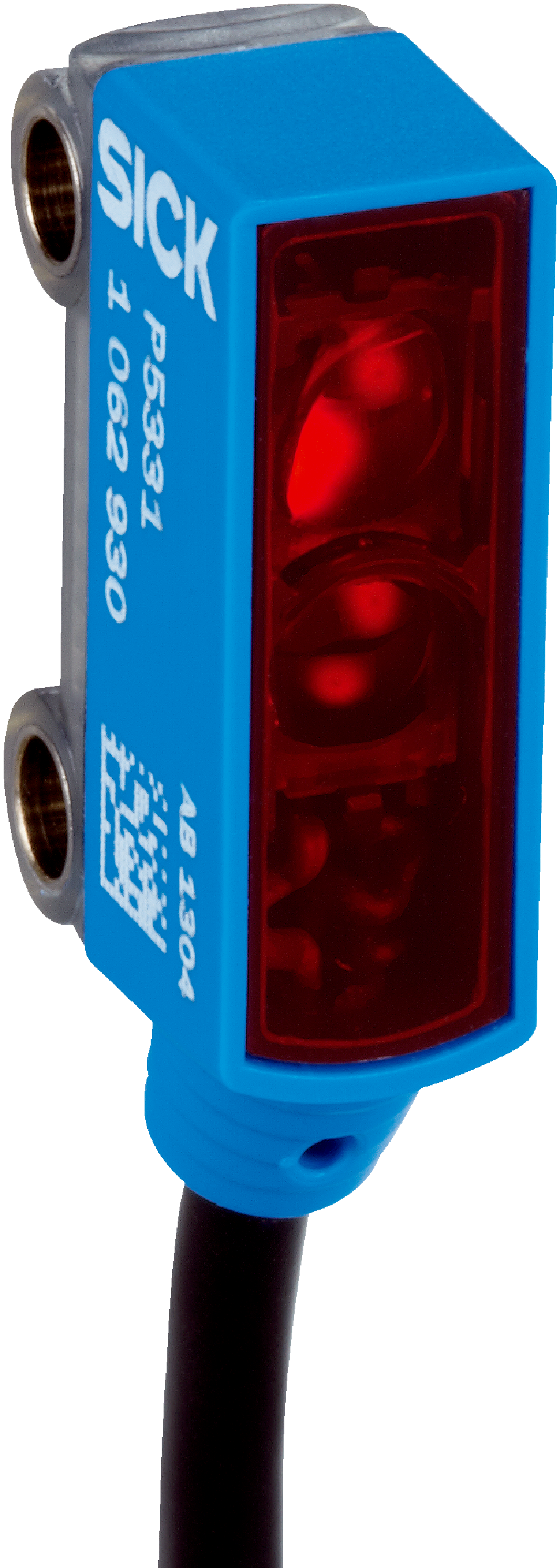

Photoelectric Retro-Reflective Sensor | IP67 Rated | 1.2m Sensing Range | 1000 Hz Switching Frequency | by SICK
The Photoelectric Retro-Reflective Sensor WL2SG-2E1135 is designed for precise object detection in industrial automation. With a sensing range of up to 1.2 meters and a high switching frequency of 1,000 Hz, it ensures reliable performance in detecting transparent objects. Its compact design and IP67 rating make it ideal for challenging environments, providing durability and efficiency for safety and control systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Photoelectric sensor, Retro-reflective sensor, Transparent object sensor, SICK WL2SG sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 20 mA
- Switching output: NPN, dark switching mode
- Maximum output current: ≤ 50 mA
- Response time: < 0.5 ms
- Switching frequency: 1,000 Hz
- Connection: 4-wire cable, 2 m length, PVC material
- Cable diameter: 3 mm
- Housing material: Plastic ABS/PC
- Optics material: Plastic PMMA
- Wave length: 640 nm
- Light spot size: Ø 12 mm at 250 mm distance
- MTTFD: 2,001 years
- Operating temperature: -20°C to +50°C
- Storage temperature: -40°C to +75°C
- Enclosure rating: IP67
- Circuit protection: A, B, D
- Dimensions (H x L x W): 21.8mm x 13.5mm x 7.7mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with autocollimation/coaxial optics
- Visible red light with PinPoint LED light source
- Sensing range up to 1.2 meters without reflector
- AutoAdapt feature for optimized sensing
- Polarizing filter included to reduce interference
- Compact rectangular housing design
- High switching frequency of 1,000 Hz
- IP67 rated enclosure for dust and water protection
- Operating temperature range from -20°C to +50°C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and sensor alignment for optimal performance.
Applications
- Industrial automation for object detection
- Detecting transparent objects in manufacturing
- Safety and control systems requiring precise sensing
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP67 housing extends product life and reduces waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK WL2SG-2E1135 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
