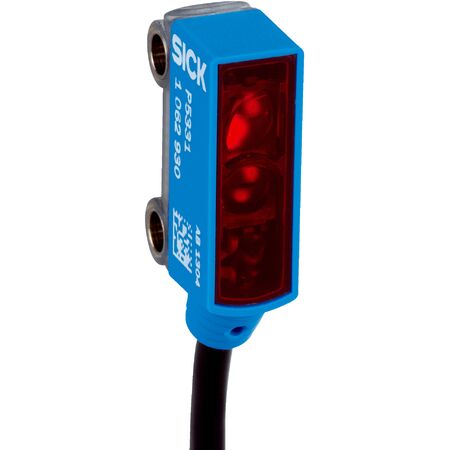

Photoelectric Retro-Reflective Sensor | IP67 Rated | 1.2m Sensing Range | Dark Switching PNP Output | by SICK
The Photoelectric Retro-Reflective Sensor WL2SG-2F1235 is designed for precise object detection in industrial automation. With a sensing range of up to 1.2 meters and an IP67 rated enclosure, it ensures reliable performance in challenging environments. Ideal for detecting transparent objects, this sensor features a high switching frequency of 1000 Hz and low power consumption, making it perfect for safety and control systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 20 mA
- Switching output: PNP, dark switching mode
- Maximum output current: ≤ 50 mA
- Response time: < 0.5 ms
- Switching frequency: 1000 Hz
- Connection: 4-wire cable, 5 m length, PVC material
- Housing material: Plastic ABS/PC
- Optics material: Plastic PMMA
- Enclosure rating: IP67
- Operating temperature: -20°C to +50°C
- Storage temperature: -40°C to +75°C
- Light wavelength: 640 nm
- Light spot size: Ø 12 mm at 250 mm distance
- MTTFD: 1987 years
- Dimensions (H x L x W): 22mm x 14mm x 8mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with autocollimation/coaxial optics
- Visible red light with PinPoint LED light source
- Sensing range up to 1.2 meters without reflector
- Dark switching PNP output with high switching frequency of 1000 Hz
- IP67 rated enclosure for dust and water protection
- Polarisation filter for improved detection of transparent objects
- Cable connection with 5 meter PVC cable
- Operating temperature range from -20°C to +50°C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and sensor alignment.
Applications
- Industrial automation for object detection
- Detecting transparent objects in manufacturing
- Safety and control systems requiring precise sensing
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption of 20 mA reduces energy usage
- Durable IP67 housing extends product life and reduces waste
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK WL2SG-2F1235 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
