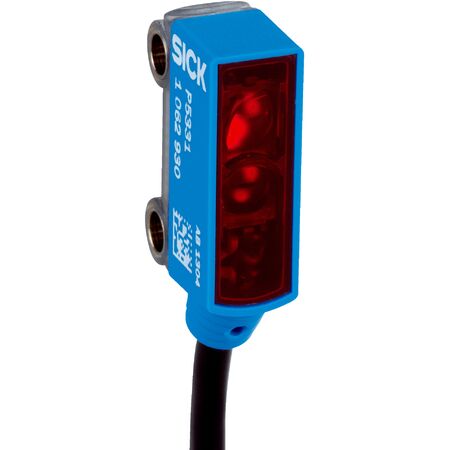

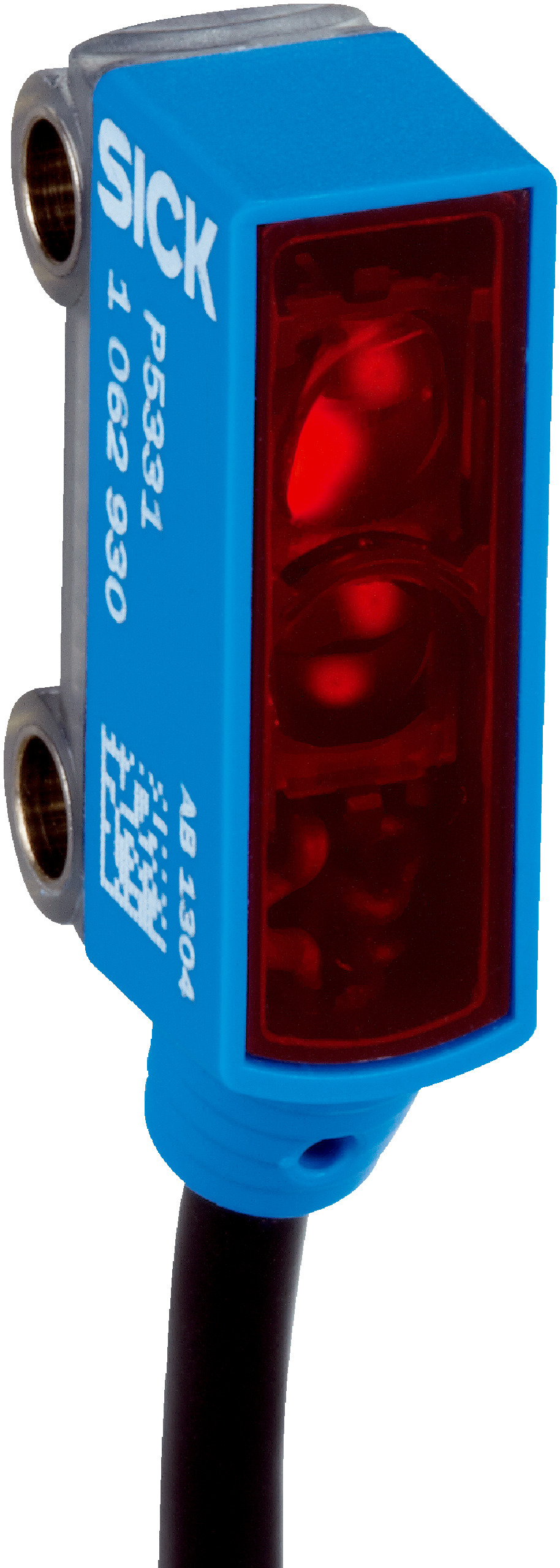

Photoelectric Retro-Reflective Sensor WL2SG-2E1135 | IP67 Rated | 1.2m Sensing Range | NPN Output | by SICK
The Photoelectric Retro-Reflective Sensor WL2SG-2E1135 is designed for precise object detection in industrial automation. With a sensing range of up to 1.2 meters and an IP67 rated enclosure, it ensures reliable performance in challenging environments. Ideal for detecting transparent objects, this sensor features a high switching frequency of 1,000 Hz and a compact design, making it perfect for safety and control systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 20 mA
- Switching output: NPN, dark switching
- Output current max: ≤ 50 mA
- Response time: < 0.5 ms
- Switching frequency: 1,000 Hz
- Connection: 4-wire cable, 2 m length, PVC material
- Cable diameter: 3 mm
- Housing material: Plastic ABS/PC
- Optics material: Plastic PMMA
- Operating temperature: -20 °C to +50 °C
- Storage temperature: -40 °C to +75 °C
- Enclosure rating: IP67
- Wave length: 640 nm
- Light spot size: Ø 12 mm at 250 mm distance
- MTTFD: 2,001 years
- Dimensions (H x L x W): 21.8mm x 13.5mm x 7.7mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with autocollimation/coaxial optics
- Visible red light with PinPoint LED light source
- Sensing range up to 1.2 meters without reflector
- AutoAdapt feature for optimized sensing
- Dark switching mode with NPN output
- High switching frequency of 1,000 Hz
- IP67 rated enclosure for dust and water protection
- Polarisation filter included for enhanced detection
- Compact rectangular housing design
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for object detection
- Detecting transparent objects in manufacturing
- Safety and control systems requiring precise sensing
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP67 housing extends product life reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK WL2SG-2E1135 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
