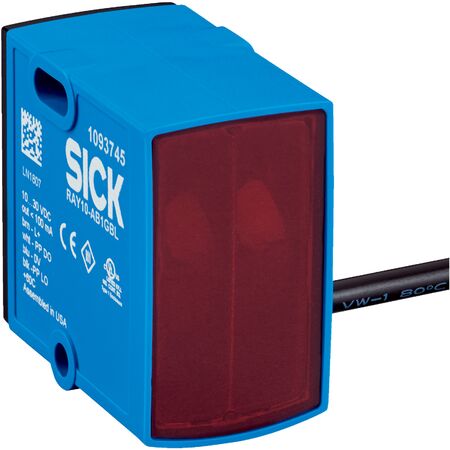

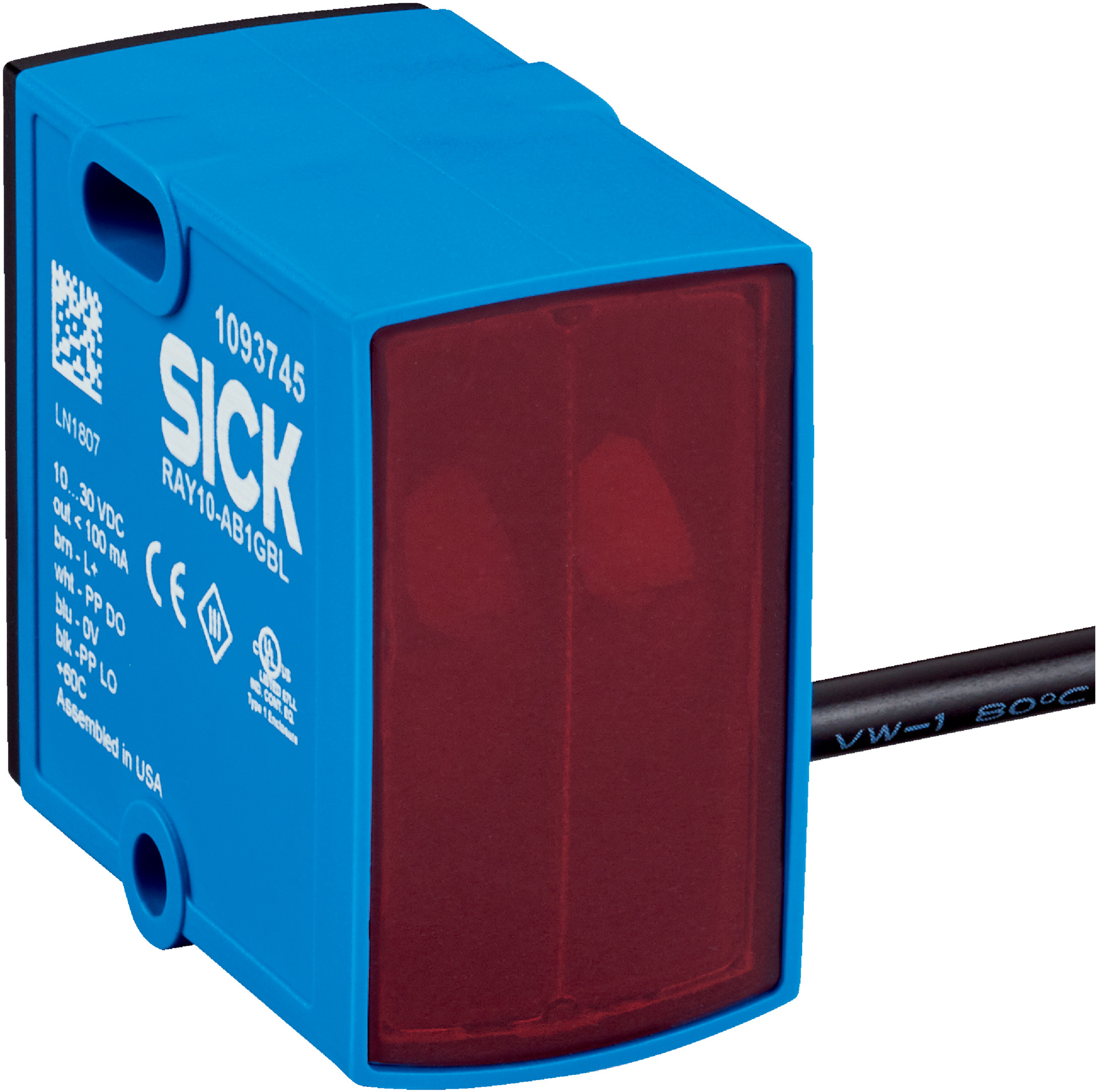

Photoelectric Retro-Reflective Sensor RAY10-AB1GBL | IP67 Rated | 1.5m Sensing Range | Dual Lens System | by SICK
The Photoelectric Retro-Reflective Sensor RAY10-AB1GBL is designed for precise object detection in industrial automation. With a sensing range of up to 1.5 meters and a minimum object size detection of just 5 mm, this sensor is perfect for detecting various object types, including transparent and shiny surfaces. Its durable IP67 rated enclosure ensures reliable performance in challenging environments, making it an ideal choice for professionals seeking efficiency and accuracy.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor with dual lens system
- Minimum object size: 5 mm
- Detection height: 25 mm
- Sensing range max.: 0 to 1.5 m
- Distance to reflector: 0.3 m to 1.5 m
- Light source: PinPoint LED, visible red light at 635 nm wavelength
- Light spot size at 1 m: 37 mm x 12 mm
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: Push-pull PNP/NPN
- Switching mode: Light/dark switching
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1000 Hz
- Connection: 4-wire cable with flying leads, 2 m length
- Cable diameter: 3.6 mm
- Protection class: III
- Housing material: Plastic ABS
- Optics material: Plastic PMMA
- Enclosure rating: IP67
- Operating temperature: -40 °C to +60 °C
- Storage temperature: -40 °C to +70 °C
- Dimensions (H x L x W): 36mm x 38mm x 22mm
- Weight: 0.13 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system
- Minimum object size detection of 5 mm
- Sensing range up to 1.5 m
- Visible red light with 635 nm wavelength
- Potentiometer adjustment
- IP67 rated enclosure for dust and water protection
- Operating temperature range from -40 °C to +60 °C
- Push-pull PNP/NPN switching output with light/dark switching mode
- Response time ≤ 0.5 ms and switching frequency up to 1000 Hz
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper sensor alignment and electrical connections.
Applications
- Industrial automation for object detection
- Detecting transparent, perforated, uneven, shiny, and flat objects
- Position-independent detection within light array
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP67 housing extends product life and reduces waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK RAY10-AB1GBL Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
