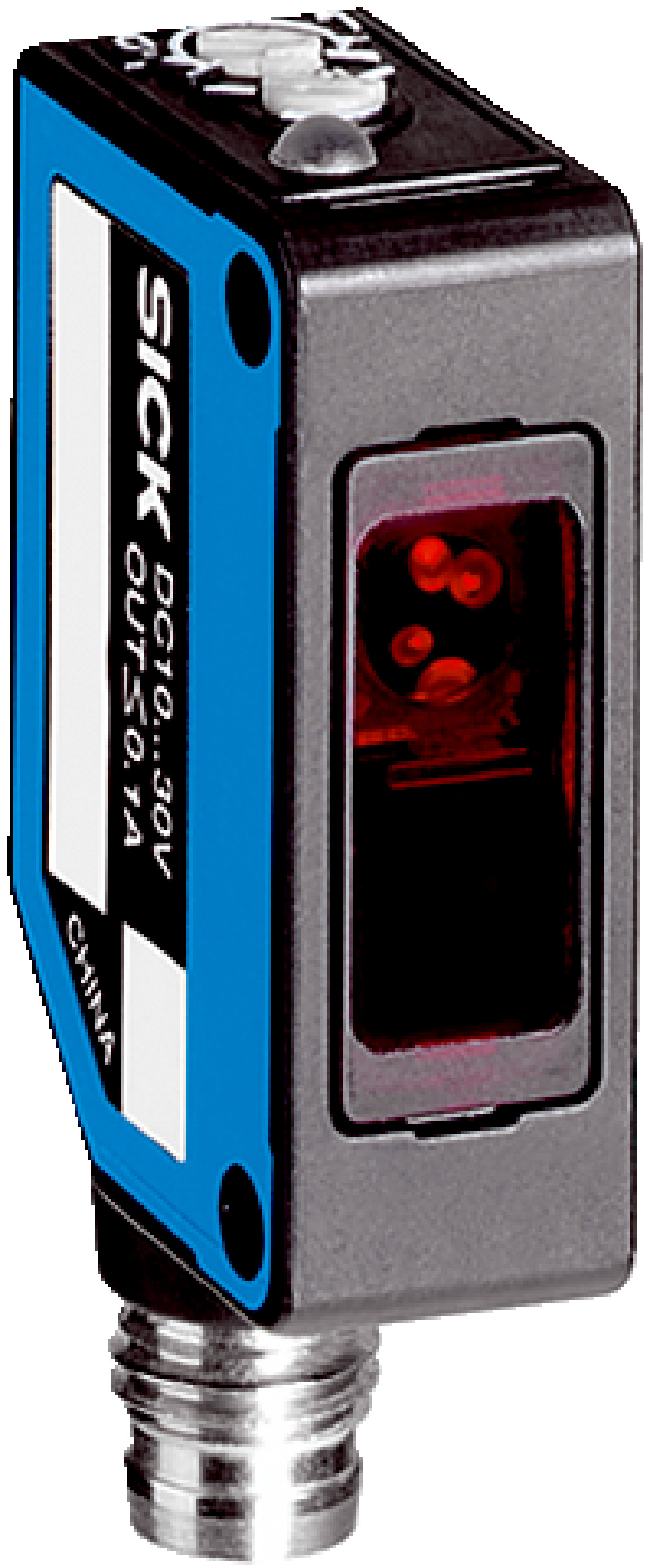

Photoelectric Retro-Reflective Sensor WL8G-P1131 | IP67 Rated | 1.7m Sensing Range | PNP Output | by SICK
The Photoelectric Retro-Reflective Sensor WL8G-P1131 is designed for reliable object detection, featuring a sensing range of 0 to 1.7 meters and a high switching frequency of 1,000 Hz. Ideal for industrial automation and transparent object detection, this sensor operates with a visible red LED light source and is housed in a durable IP67 enclosure, ensuring performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor without reflector minimum distance
- Sensing range: 0 to 1.7 meters
- Light source: Visible red LED, 650 nm wavelength
- Light spot size: Ø 70 mm at 2 meters
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP, max output current ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1,000 Hz
- Connection: 3-wire cable, 2 meters, PVC material
- Housing material: Plastic ABS, Optics material: Plastic PMMA
- Enclosure rating: IP67
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Includes stainless steel mounting bracket and reflector
- Dimensions (H x L x W): 31mm x 20mm x 11mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with autocollimation/coaxial optics
- Detects transparent objects effectively
- Visible red light LED with 650 nm wavelength
- Potentiometer adjustment with 270° rotation
- IP67 rated enclosure for dust and water protection
- Polarizing filter included to reduce false signals
- High switching frequency of 1,000 Hz
- Light/dark switching mode selectable via rotary switch
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with electrical standards.
Applications
- Industrial automation for object detection
- Detecting transparent objects in manufacturing processes
- Use in environments requiring reliable photoelectric sensing
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP67 housing extends product life and reduces waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK WL8G-P1131 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and transparent object detection applications.
