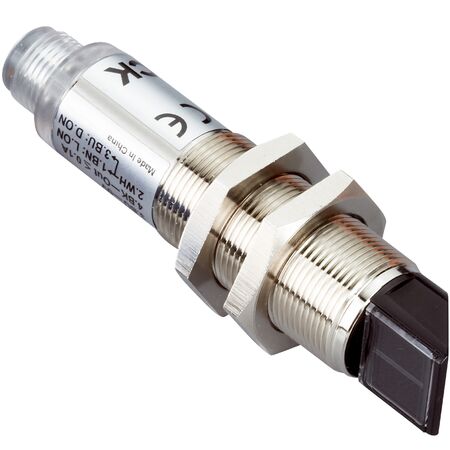

Photoelectric Retro-Reflective Sensor | IP67 Rated | 1,000 Hz Switching Frequency | Dual Lens System | by SICK
The Photoelectric Retro-Reflective Sensor is designed for industrial automation, featuring a dual lens system for precise object detection and a high switching frequency of 1,000 Hz. With an IP67 rating for dust and water protection, this sensor operates efficiently in various environments, making it ideal for safety systems, material handling, and robotics applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP, light/dark switching
- Output current max: ≤ 100 mA
- Signal voltage PNP HIGH/LOW: Approx. VS – 1.8 V / 0 V
- Response time: ≤ 0.5 ms
- Switching frequency: 1,000 Hz
- Connection type: 4-wire cable, 2 m length, PVC material
- Cable diameter: Ø 3.8 mm
- Protection class: III
- Polarisation filter included
- Optics material: Plastic, PMMA
- Enclosure rating: IP67
- Ambient operating temperature: -25 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Dimensions (H x L x W): 18mm x 77mm x 18mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Visible red light LED with wavelength of 645 nm
- Sensing range from 0.05 m to 4.5 m (max 5.5 m)
- Radial optical axis with approx. 4.5° angle of dispersion
- Potentiometer adjustment with 270° sensitivity control
- High switching frequency of 1,000 Hz and response time ≤ 0.5 ms
- IP67 rated enclosure for dust and water protection
- Housing made of metal with nickel-plated brass and PC optics
- Includes reflector P250
- Operating temperature range from -25 °C to +55 °C
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for object detection
- Safety and security systems
- Material handling and packaging lines
- Robotics and manufacturing processes
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable metal housing extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK VL180-2P41133 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
