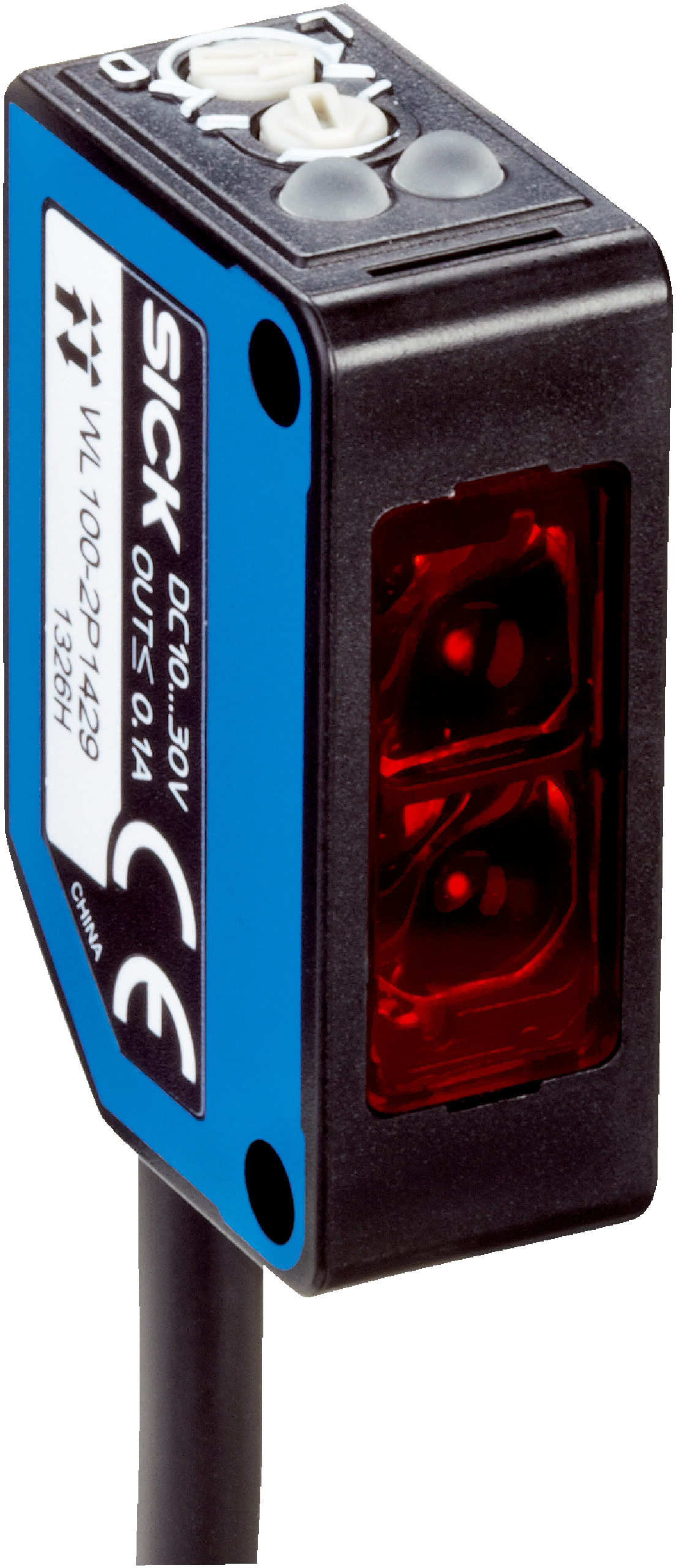

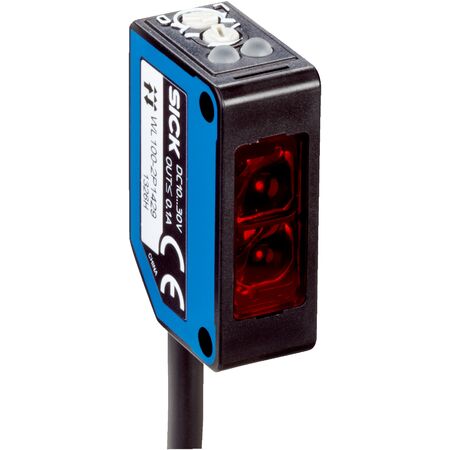

Photoelectric Retro-Reflective Sensor WL100-2P1439 | IP67 Rated | 1,000 Hz Switching Frequency | Dual Lens System | by SICK
The Photoelectric Retro-Reflective Sensor WL100-2P1439 is designed for industrial automation, featuring a dual lens system for precise object detection and a high switching frequency of 1,000 Hz. With an IP67 rating for dust and water protection, this sensor is perfect for safety and control systems in manufacturing and material handling applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP
- Switching mode: Light/dark selectable
- Response time: ≤ 0.5 ms
- Switching frequency: 1,000 Hz
- Connection: 3-wire cable, 2 m length, PVC material
- Protection class: III
- Housing material: Plastic ABS/PC/POM
- Optics material: Plastic PMMA
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Enclosure rating: IP67
- Signal voltage PNP HIGH/LOW: U V - 1.8 V / approx. 0 V
- Output current max: ≤ 100 mA
- Dimensions (H x L x W): 31mm x 20mm x 11mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Visible red light LED with wavelength of 632 nm
- Sensing range from 0.01 m to 7.2 m
- Potentiometer adjustment for sensitivity
- Selectable light/dark switching mode
- High switching frequency of 1,000 Hz
- IP67 rated enclosure for dust and water protection
- Polarisation filter included
- Includes mounting bracket BEF-W100-A and Reflector P250
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with photoelectric sensor wiring and safety standards.
Applications
- Industrial automation for object detection
- Safety and control systems in manufacturing
- Material handling and packaging lines
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with 30 mA current draw
- Durable IP67 housing reduces need for frequent replacements
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK WL100-2P1439 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
