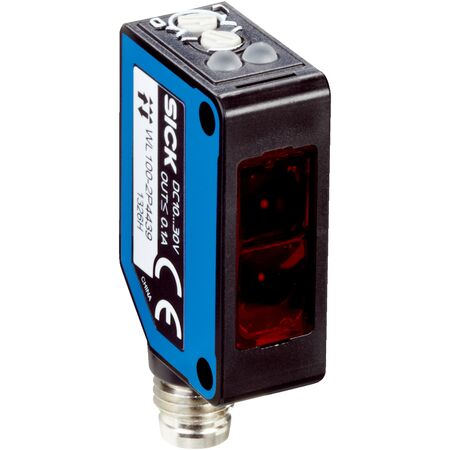

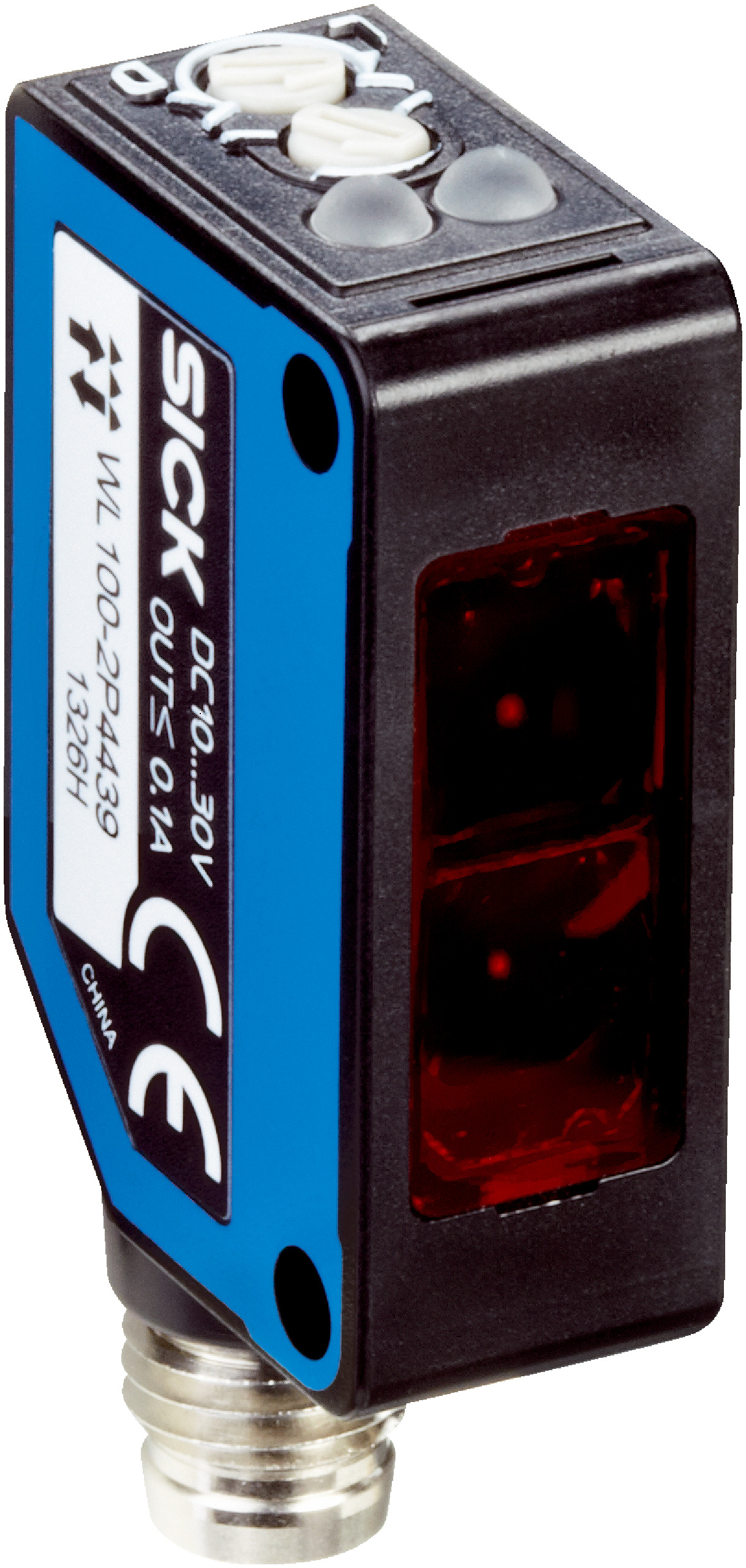

Photoelectric Retro-Reflective Sensor WL100-2P3432 | IP67 Rated | 1,000 Hz Switching Frequency | Dual Lens System | by SICK
The Photoelectric Retro-Reflective Sensor WL100-2P3432 is designed for industrial automation, featuring a dual lens system for minimum distance to reflector and a high switching frequency of 1,000 Hz. With an IP67 rated enclosure, it ensures reliable performance in dust and water environments, making it ideal for safety and control systems in manufacturing and material handling applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP
- Switching mode: Light/dark switching selectable
- Signal voltage PNP HIGH/LOW: U V - 1.8 V / approx. 0 V
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1,000 Hz
- Connection type: Connector M8, 3-pin
- Circuit protection: Types A, B, D
- Protection class: III
- Housing material: Plastic (ABS/PC/POM)
- Optics material: Plastic (PMMA)
- Enclosure rating: IP67
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- MTTFD: 954 years
- Light source: LED
- Light spot size at 4 m: Ø 280 mm
- Wave length: 632 nm
- Dimensions (H x L x W): 31mm x 20mm x 11mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Visible red light LED with wavelength of 632 nm
- Sensing range from 0.01 m to 7.2 m
- Potentiometer for sensitivity adjustment
- Selectable light/dark switching mode via rotary switch
- High switching frequency of 1,000 Hz and fast response time ≤ 0.5 ms
- IP67 rated enclosure for dust and water protection
- Polarisation filter included for improved detection reliability
- Connector M8, 3-pin connection type
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper wiring and sensor alignment.
Applications
- Industrial automation for object detection
- Safety and control systems in manufacturing
- Material handling and packaging lines
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption with 30 mA current draw
- Durable IP67 rated housing reduces waste by extending product life
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK WL100-2P3432 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
