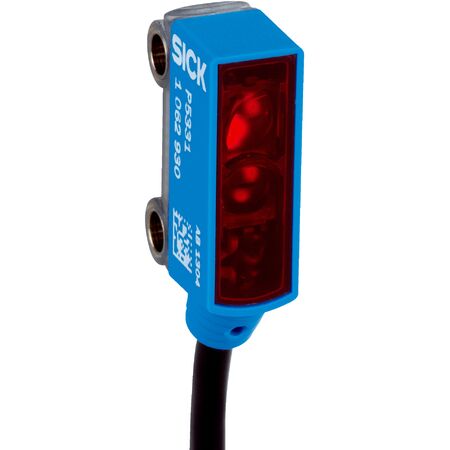

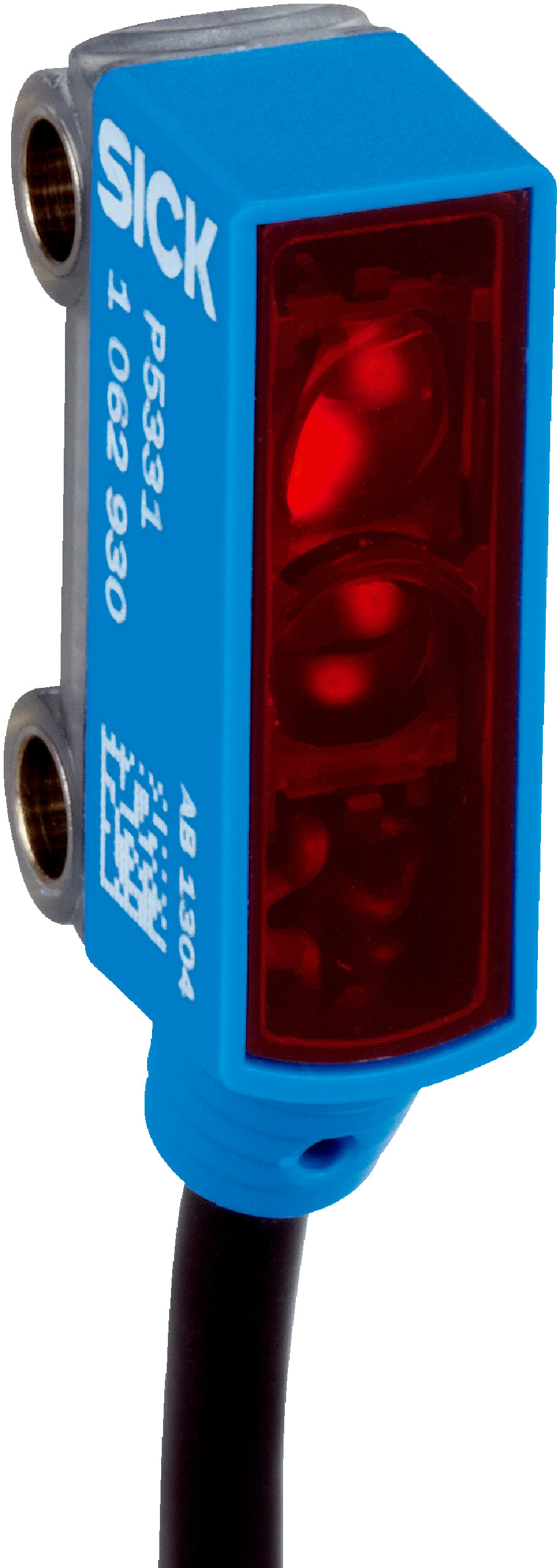

Photoelectric Retro-Reflective Sensor WL2SG-2P1135 | IP67 Rated | 1,000 Hz Switching Frequency | PinPoint LED Light Source | by SICK
The Photoelectric Retro-Reflective Sensor WL2SG-2P1135 is designed for precise object detection in industrial automation, featuring a sensing range of up to 1.2 m and a high switching frequency of 1,000 Hz. With its IP67 rated enclosure and PinPoint LED light source, this sensor is perfect for detecting transparent objects and ensuring safety in manufacturing environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor without reflector minimum distance (autocollimation/coaxial optics)
- Sensing range: 0 m to 0.55 m (max 1.2 m)
- Light source: PinPoint LED, wavelength 640 nm
- Light spot size: Ø 12 mm at 250 mm distance
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 20 mA
- Switching output: PNP, light switching mode
- Output current max: ≤ 50 mA
- Response time: < 0.5 ms
- Switching frequency: 1,000 Hz
- Connection: 4-wire cable, 2 m length, PVC material
- Housing material: Plastic ABS/PC, Optics material: Plastic PMMA
- Enclosure rating: IP67
- Operating temperature: –20 °C to +50 °C
- Storage temperature: –40 °C to +75 °C
- Circuit protection included
- Polarisation filter for improved detection
- UL File No.: NRKH.E181493
- Dimensions (H x L x W): 21.8mm x 13.5mm x 7.7mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with autocollimation/coaxial optics
- Visible red light with PinPoint LED light source
- AutoAdapt feature for optimized sensing
- Polarisation filter included for enhanced detection
- High switching frequency of 1,000 Hz
- IP67 rated enclosure for dust and water protection
- Compact rectangular housing design
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper sensor alignment and electrical connection.
Applications
- Industrial automation for object detection
- Detecting transparent objects in manufacturing
- Safety and control systems requiring precise sensing
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP67 housing extends product life and reduces waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK WL2SG-2P1135 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
