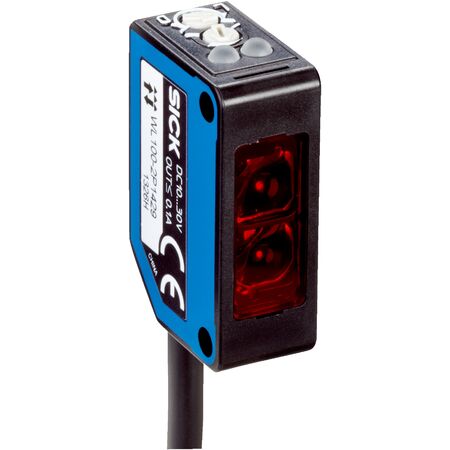

Photoelectric Retro-Reflective Sensor WL100-2N1429 | IP67 Rated | 1000 Hz Switching Frequency | by SICK
The Photoelectric Retro-Reflective Sensor WL100-2N1429 is designed for precise object detection in industrial automation. With a sensing range of 0.01 m to 3 m and a high switching frequency of 1,000 Hz, it ensures quick and reliable performance. Its robust IP67-rated housing protects against dust and water, making it ideal for demanding environments. Perfect for detecting transparent objects and enhancing safety in control systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: NPN transistor
- Switching mode: Light/dark selectable
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1,000 Hz
- Connection: 3-wire cable, 2 m length, PVC insulation
- Protection class: III
- Housing material: Plastic (ABS/PC/POM)
- Optics material: Plastic (PMMA)
- Enclosure rating: IP67
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Dimensions (H x L x W): 31mm x 20mm x 11mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Visible red light LED with wavelength of 632 nm
- Sensing range from 0.01 m to 3 m
- Selectable light/dark switching mode via rotary switch
- High switching frequency of 1,000 Hz and fast response time ≤ 0.5 ms
- Robust plastic housing with IP67 enclosure rating for dust and water protection
- Includes mounting bracket BEF-W100-A and Reflector P250
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and sensor alignment for optimal performance.
Applications
- Industrial automation for object detection
- Detecting transparent objects in manufacturing
- Safety and control systems requiring precise sensing
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with 30 mA current draw
- Durable IP67 rated housing reduces need for frequent replacements
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK WL100-2N1429 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
