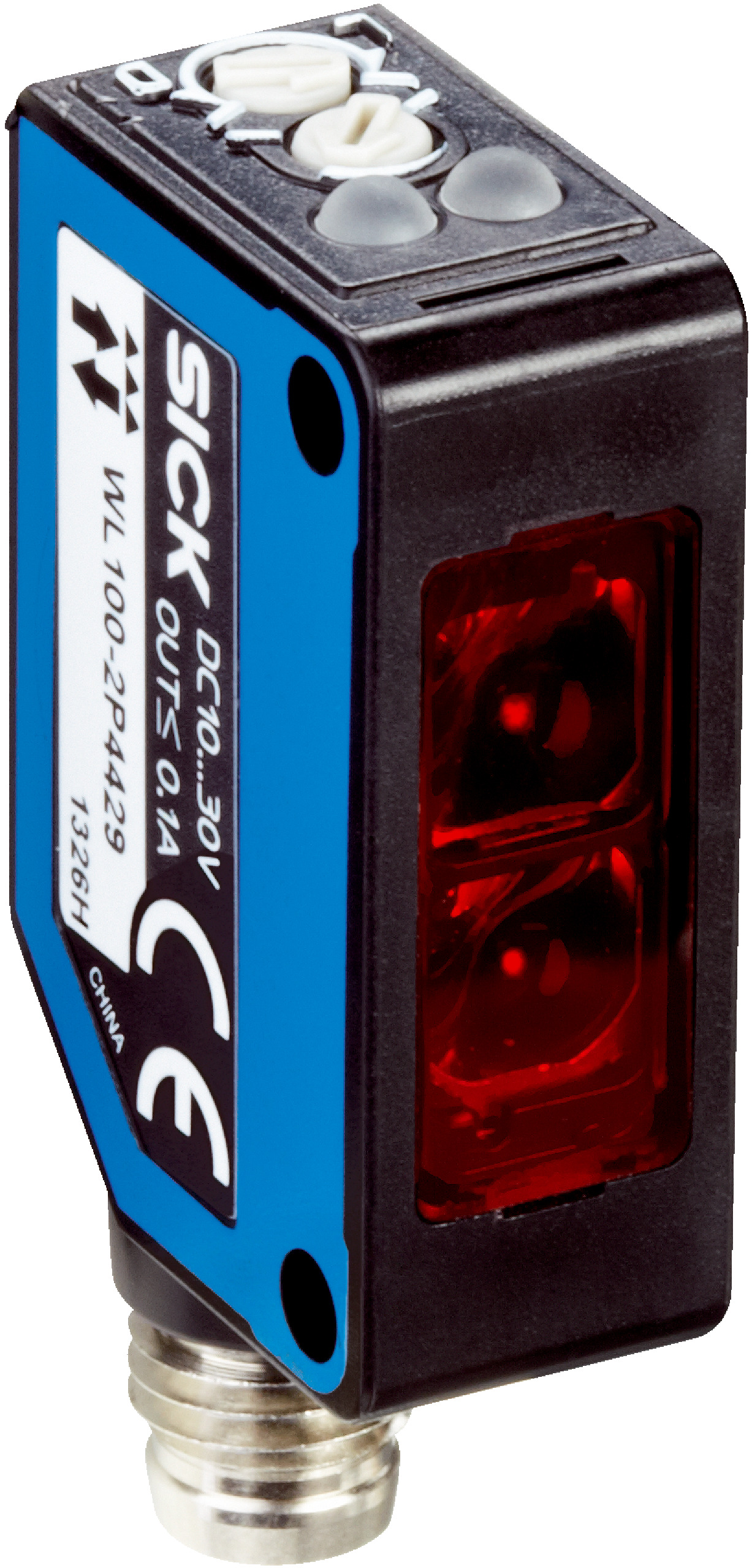

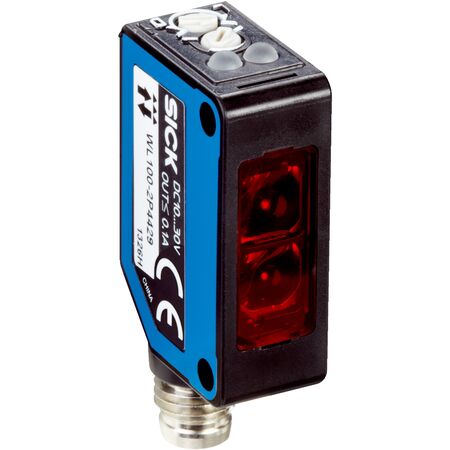

Photoelectric Retro-Reflective Sensor WL100-2P3429 | IP67 Rated | 1,000 Hz Switching Frequency | by SICK
The Photoelectric Retro-Reflective Sensor WL100-2P3429 is designed for precise object detection in industrial automation. With a sensing range of 0.01 m to 2.5 m and a high switching frequency of 1,000 Hz, it ensures reliable performance. Its IP67 rated enclosure provides excellent dust and water protection, making it ideal for use in conveyor systems and packaging lines.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP with max output current ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1,000 Hz
- Light spot size at 2 m: Ø 140 mm
- Protection class: III
- Enclosure rating: IP67
- Operating temperature range: -25 °C to +55 °C
- Storage temperature range: -40 °C to +70 °C
- Connection type: Connector M8, 3-pin
- Circuit protection: Types A, B, D
- Dimensions (H x L x W): 31mm x 20mm x 11mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Visible red light LED with wavelength of 632 nm
- Sensing range from 0.01 m to 2.5 m
- Potentiometer for sensitivity adjustment
- Selectable light/dark switching mode
- High switching frequency of 1,000 Hz
- IP67 rated enclosure for dust and water protection
- Robust plastic housing with ABS/PC/POM materials
- Includes mounting bracket BEF-W100-A and reflector P250
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for object detection
- Detecting transparent objects in manufacturing
- Use in conveyor systems and packaging lines
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable design minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK WL100-2P3429 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
