Photoelectric Retro-Reflective Sensor | IP67 Rated | 1,000 Hz Switching Frequency | Visible Red Light | by SICK

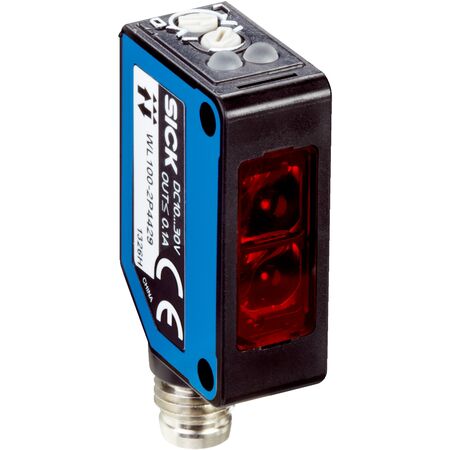

The SICK WL100-2N3429 Photoelectric Retro-Reflective Sensor is designed for precise object detection in industrial automation. With a sensing range of 0.01 m to 2.5 m and a high switching frequency of 1,000 Hz, it ensures reliable performance. Its IP67 rated enclosure provides excellent dust and water protection, making it ideal for demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: NPN transistor
- Switching mode: Light/dark selectable via rotary switch
- Response time: ≤ 0.5 ms
- Switching frequency: 1,000 Hz
- Light source: LED, visible red light, 632 nm wavelength
- Light spot size at 2 m: Ø 140 mm
- Connection type: M8, 3-pin connector
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Housing material: Plastic (ABS/PC/POM)
- Optics material: Plastic (PMMA)
- Dimensions (H x L x W): 31mm x 20mm x 11mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Sensing range from 0.01 m to 2.5 m
- Visible red light LED with wavelength 632 nm
- Potentiometer adjustment for sensitivity
- Selectable light/dark switching mode
- High switching frequency of 1,000 Hz
- IP67 rated enclosure for dust and water protection
- Robust plastic housing made of ABS/PC/POM
- Includes mounting bracket and reflector
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper wiring and sensor alignment.
Applications
- Industrial automation for object detection
- Detecting transparent objects in manufacturing
- Safety and control systems requiring precise sensing
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with 30 mA current draw
- Durable IP67 housing reduces need for frequent replacements
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK WL100-2N3429 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
