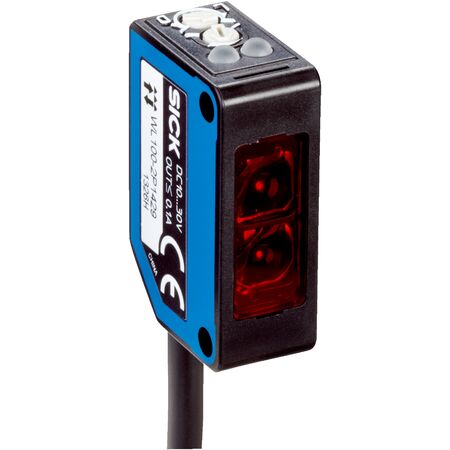

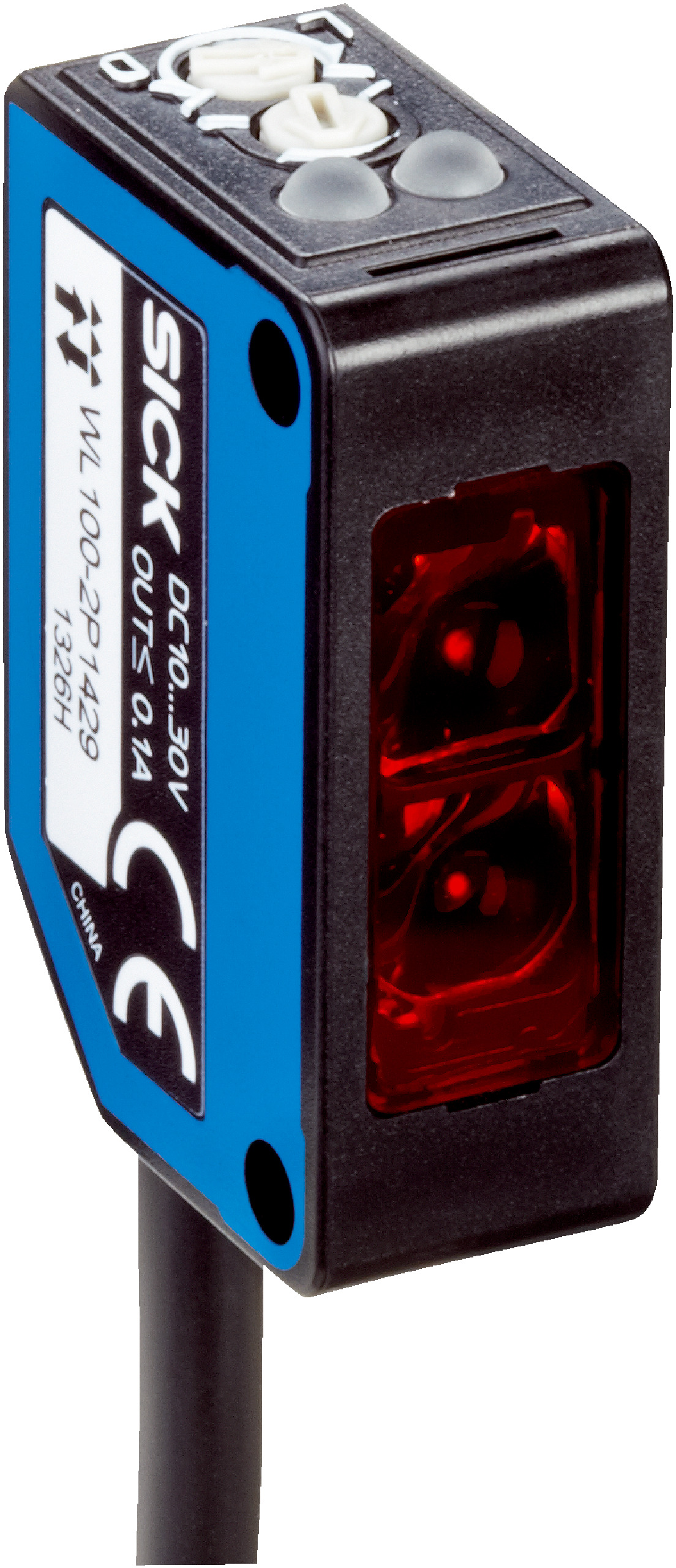

Photoelectric Retro-Reflective Sensor WL100-2P1429 | IP67 Rated | 1,000 Hz Switching Frequency | Visible Red Light | by SICK
The Photoelectric Retro-Reflective Sensor WL100-2P1429 is designed for precise object detection in industrial automation. With a sensing range of 0.01 m to 2.5 m and a high switching frequency of 1,000 Hz, it ensures reliable performance. Its IP67 rated enclosure provides excellent dust and water protection, making it ideal for demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP
- Switching mode: Light/dark selectable
- Response time: ≤ 0.5 ms
- Switching frequency: 1,000 Hz
- Light source: LED, visible red light, 632 nm wavelength
- Light spot size at 2 m: Ø 140 mm
- Connection: 3-wire cable, 2 m length, PVC insulation
- Protection class: III
- Housing material: Plastic (ABS/PC/POM)
- Optics material: Plastic (PMMA)
- Enclosure rating: IP67
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Dimensions (H x L x W): 31mm x 20mm x 11mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Visible red light LED with wavelength of 632 nm
- Sensing range from 0.01 m to 2.5 m
- Potentiometer adjustment for sensitivity
- Selectable light/dark switching mode
- High switching frequency of 1,000 Hz
- IP67 rated enclosure for dust and water protection
- Includes mounting bracket BEF-W100-A and Reflector P250
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper wiring and sensor alignment.
Applications
- Industrial automation for object detection
- Detecting transparent objects in manufacturing
- Safety and control systems requiring precise sensing
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption with 30 mA current draw
- Durable IP67 housing reduces need for frequent replacements
- Long service life with MTTFD of 954 years
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK WL100-2P1429 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
