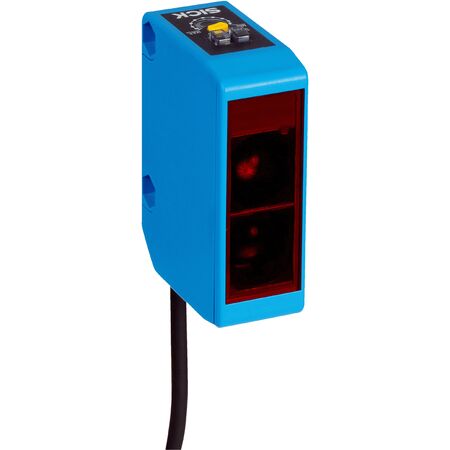

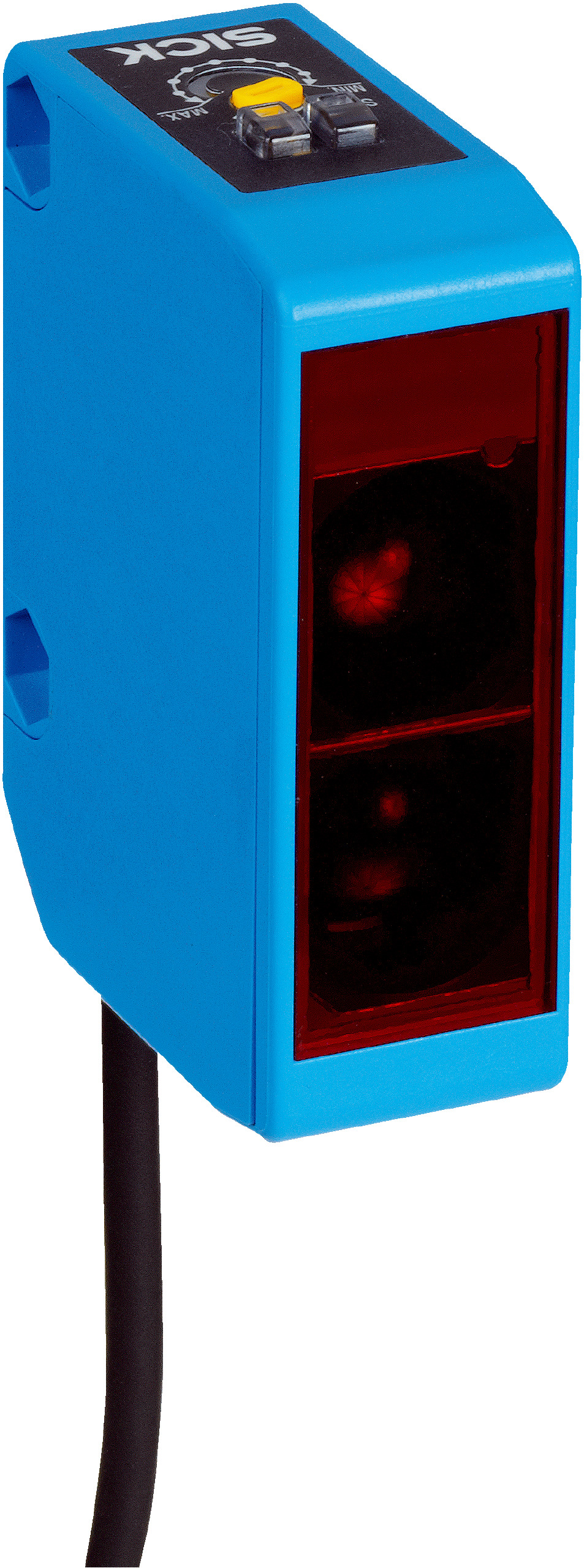

Photoelectric Retro-Reflective Sensor WL250-2P1131 | IP67 Rated | 15m Sensing Range | Fast Response Time | by SICK
The Photoelectric Retro-Reflective Sensor WL250-2P1131 is designed for industrial automation, featuring a robust IP67-rated housing and a sensing range of up to 15 meters. With a fast response time of ≤ 0.5 ms and a high switching frequency of 1,000 Hz, this sensor is perfect for object detection and safety monitoring in manufacturing processes. Its durable design and energy-efficient LED light source ensure reliable performance in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 20 mA
- Switching output: PNP
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1,000 Hz
- Connection: 4-wire cable, 2 m length, PVC material
- Protection class: III
- Enclosure rating: IP67
- Housing material: Plastic ABS
- Optics material: Plastic PMMA
- Ambient operating temperature: –25 °C to +55 °C
- Storage temperature: –40 °C to +70 °C
- EMC compliance: EN 60947-5-2
- Dimensions (H x L x W): 65mm x 44mm x 20mm
- Weight: 0.15 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Visible red LED light source with approx. 2° focus and angle of dispersion
- Sensing range up to 15 m depending on reflector used
- Light/dark switching mode selectable via control cable
- High switching frequency of 1,000 Hz and fast response time ≤ 0.5 ms
- Robust plastic ABS housing with IP67 enclosure rating for dust and water protection
- Includes reflector P250 and BEF-W250 mounting bracket
- Polarisation filter included to reduce interference
- Wide ambient operating temperature range from –25 °C to +55 °C
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper alignment and electrical connection according to safety standards.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and conveyor systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable design minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK WL250-2P1131 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
