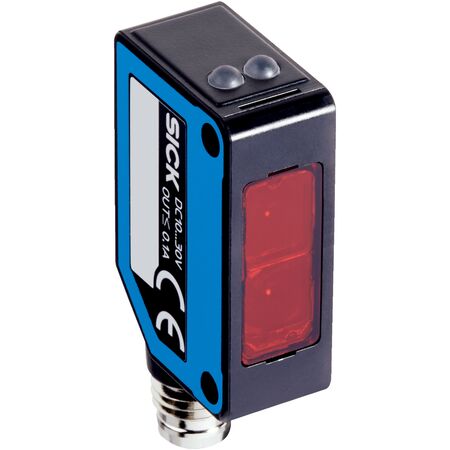

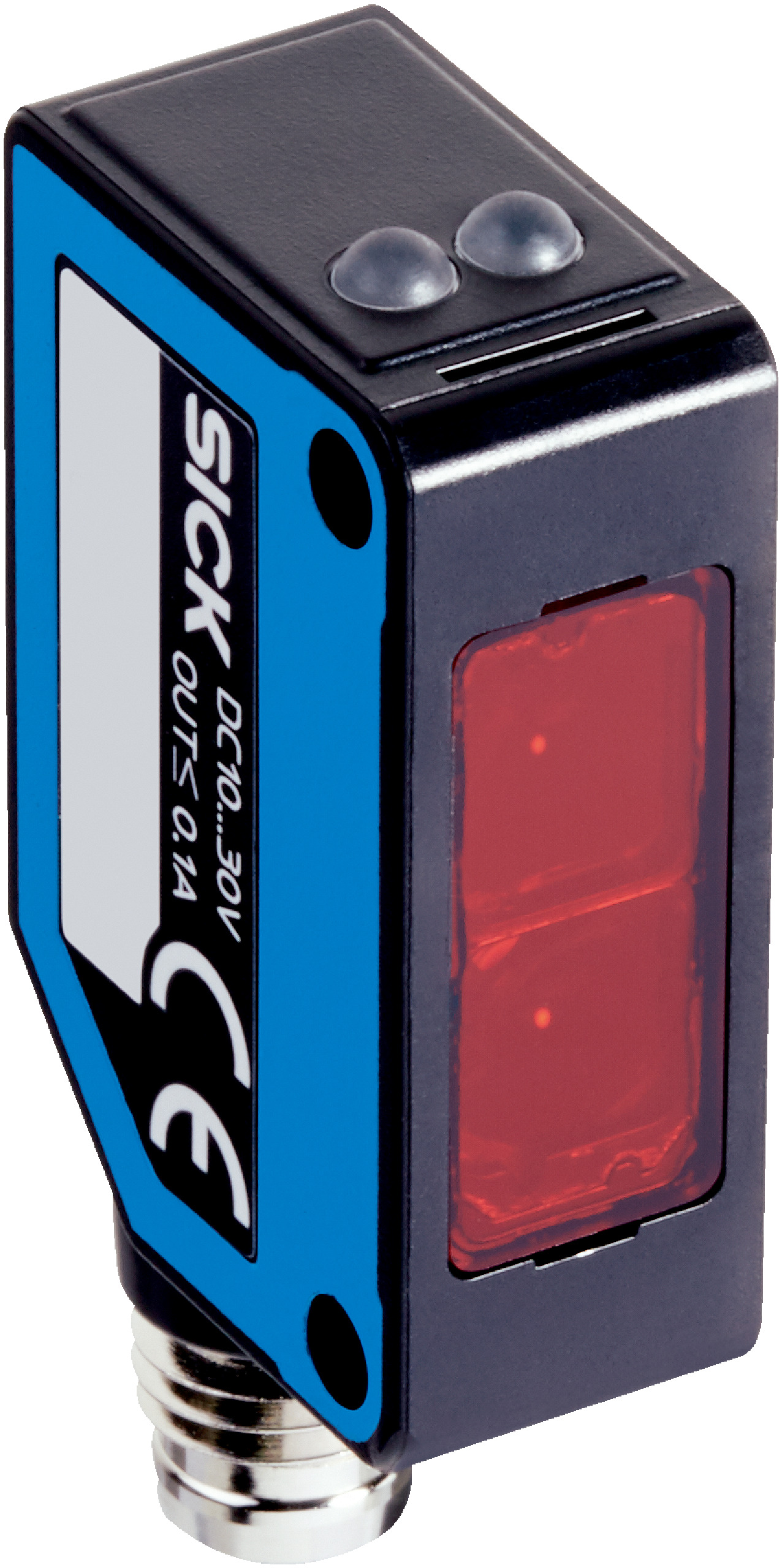

Photoelectric Retro-Reflective Sensor | IP67 Rated | 2,000 Hz Switching Frequency | Compact Design | by SICK
The Photoelectric Retro-Reflective Sensor WL100-2P4330S14 is designed for industrial automation, featuring a high switching frequency of 2,000 Hz and a fast response time of ≤ 0.25 ms. With an IP67 rated enclosure for dust and water protection, this sensor is perfect for object detection in safety and security systems, material handling, and manufacturing process control.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP, max output current ≤ 100 mA
- Switching mode: Light switching
- Signal voltage PNP HIGH/LOW: U V - 1.8 V / approx. 0 V
- Response time: ≤ 0.25 ms
- Switching frequency: 2,000 Hz
- Connection type: Male connector M8, 4-pin
- Circuit protection: Types A, B, D
- Protection class: III
- Housing material: Plastic (ABS/PC/POM)
- Optics material: Plastic (PMMA)
- Enclosure rating: IP67
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Light source: LED
- Light type: Visible red light
- Light spot size at 4 m: Ø 280 mm
- Polarisation filter included
- Dimensions (H x L x W): 31mm x 20mm x 11mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Visible red light LED with wavelength of 632 nm
- Sensing range from 0.01 m up to 6.3 m
- High switching frequency of 2,000 Hz and fast response time ≤ 0.25 ms
- IP67 rated enclosure for dust and water protection
- Polarisation filter and special device features included
- Compact rectangular housing design
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and sensor alignment for optimal performance.
Applications
- Industrial automation for object detection
- Safety and security systems
- Material handling and packaging lines
- Manufacturing process control
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with 30 mA current draw
- Durable IP67 rated housing reduces waste from replacements
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK WL100-2P4330S14 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and safety system applications.
