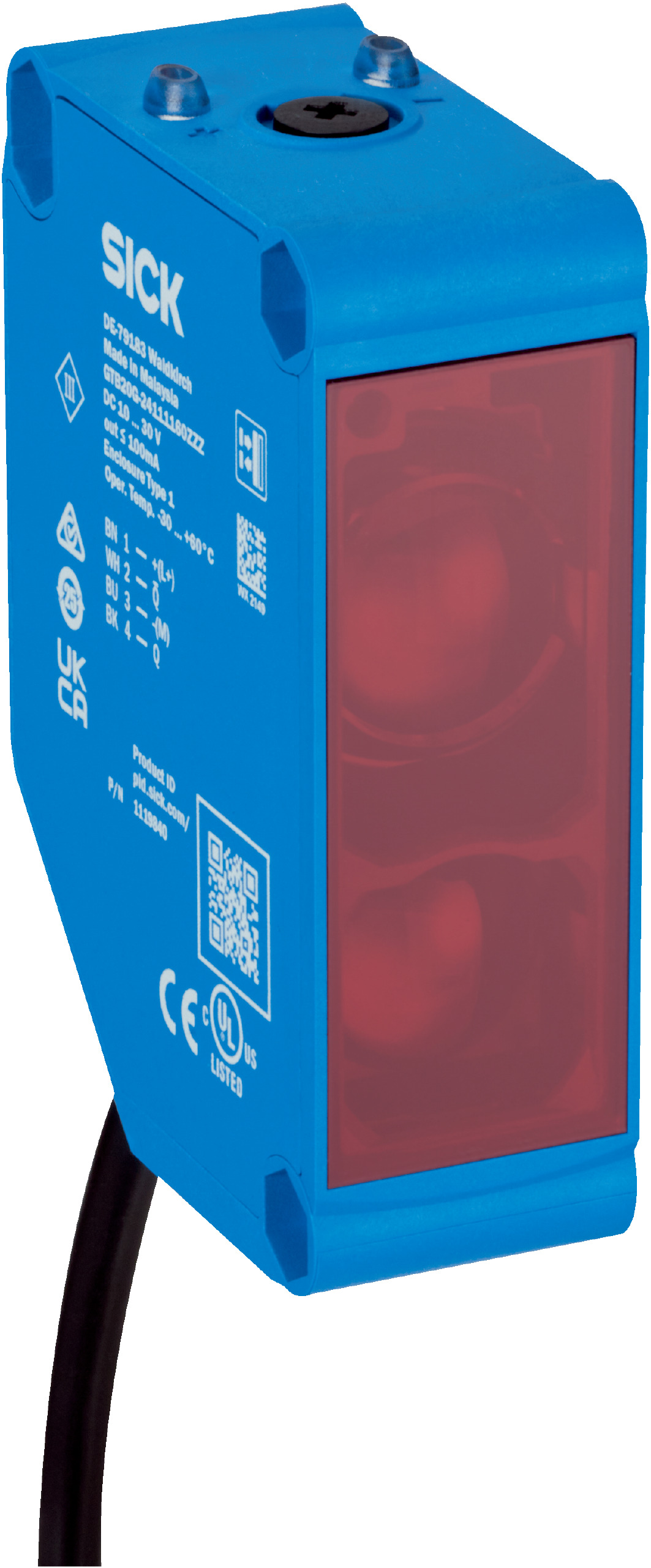

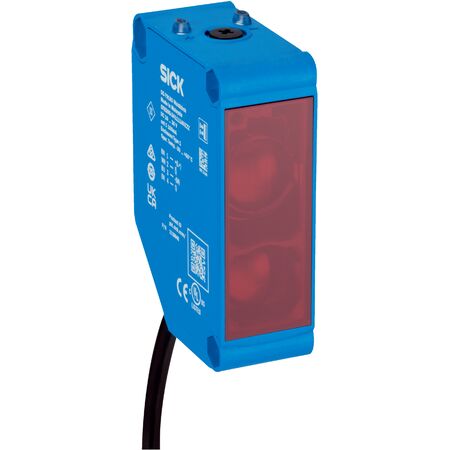

Photoelectric Retro-Reflective Sensor | IP67 Rated | 20m Sensing Range | Dual Lens System | by SICK
The Photoelectric Retro-Reflective Sensor GLD20G-1H112170ZZZ is designed for industrial automation, featuring a robust IP67 enclosure and a sensing range of up to 20 meters. With a dual lens system and visible red LED light source, it ensures reliable object detection and safety in manufacturing lines. Ideal for material handling and packaging systems, this sensor is built to withstand harsh environments with shock and vibration resistance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 30 mA at 24 V
- Output type: 2 complementary push-pull outputs (PNP/NPN)
- Switching mode: Light/dark switching
- Response time: ≤ 500 µs
- Switching frequency: 1,000 Hz
- Protection class: III
- Circuit protection: Reverse polarity, overcurrent, short-circuit protected
- Enclosure rating: IP67
- Operating temperature: -30 °C to +60 °C
- Storage temperature: -40 °C to +70 °C
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 Hz to 1,000 Hz, amplitude 1 mm
- Cable: 4-wire, 2 m length, PVC insulated
- Housing material: Plastic ABS
- Front screen material: Plastic PMMA
- Dimensions (H x L x W): 74.5mm x 52.5mm x 23.5mm
- Weight: 0.12 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system
- Sensing range from 0.03 m to 20 m with recommended range up to 16 m
- Visible red LED light source with 630 nm wavelength
- Rectangular light spot with 200 mm diameter at 5,000 mm distance
- Potentiometer for 270° sensitivity adjustment
- LED indicators for power and object presence status
- IP67 rated enclosure for dust and water protection
- Robust against shock (30 g) and vibration (10 Hz to 1,000 Hz)
- Operating temperature range from -30 °C to +60 °C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and sensor alignment for optimal performance and safety.
Applications
- Industrial automation for object detection
- Safety and presence detection in manufacturing lines
- Material handling and packaging systems
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED light source with long service life reduces power consumption and waste
- Durable design minimizes replacement frequency and electronic waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK GLD20G-1H112170ZZZ Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
