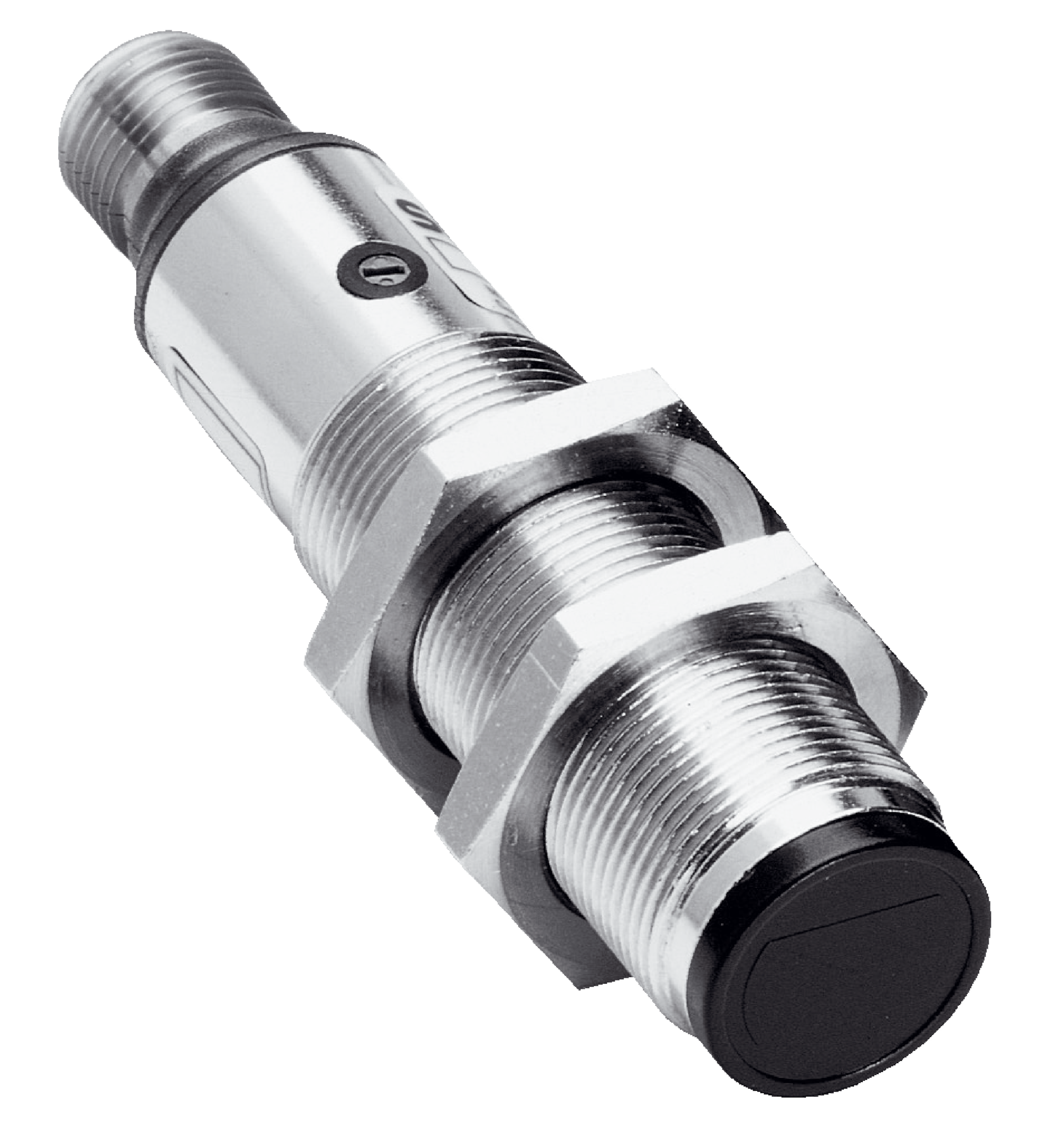

Photoelectric Retro-Reflective Sensor | IP67 Rated | 3.7m Sensing Range | Fast Response Time | by SICK
The Photoelectric Retro-Reflective Sensor is designed for industrial automation, featuring a sensing range of up to 3.7 meters and an IP67 rated enclosure for dust and water protection. With a fast response time of ≤ 2 ms and selectable light/dark switching mode, it's perfect for object detection and safety monitoring in manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Photoelectric sensor, Retro-reflective sensor, M18 photoelectric sensor, Industrial object sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP
- Switching mode: Light/dark switching selectable
- Output current max: ≤ 100 mA
- Response time: ≤ 2 ms
- Switching frequency: 250 Hz
- Connection type: Male M12, 4-pin connector
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: -25 °C to +70 °C
- Housing material: Metal, nickel-plated brass
- Optics material: Plastic, PMMA
- Weight: 120 g
- Polarizing filter: Yes
- Dimensions (H x L x W): 18mm x 78mm x 18mm
- Weight: 0.12 kg
Key Features
- Photoelectric retro-reflective sensing principle
- Visible red LED light source with approx. 2.8° focus
- Sensing range up to 3.7 meters
- Potentiometer adjustment with 270° sensitivity control
- IP67 rated enclosure for dust and water protection
- Metal housing with nickel-plated brass for durability
- Polarizing filter included to reduce false triggers
- Fast response time of ≤ 2 ms and switching frequency of 250 Hz
- Selectable light/dark switching mode via control cable
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician familiar with photoelectric sensor wiring and configuration to ensure proper operation and safety.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with 10 V DC to 30 V DC supply voltage
- Durable metal housing reduces waste through extended product life
- Complies with China RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now

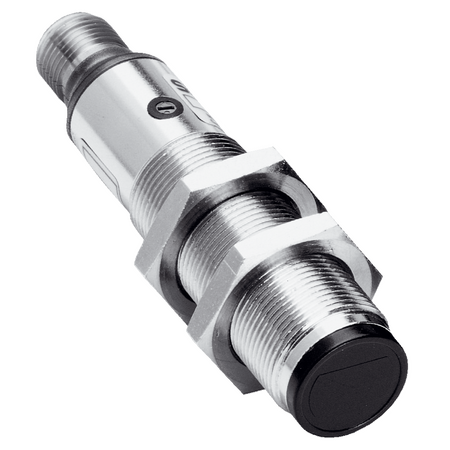

The SICK VL18-4P3240 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
