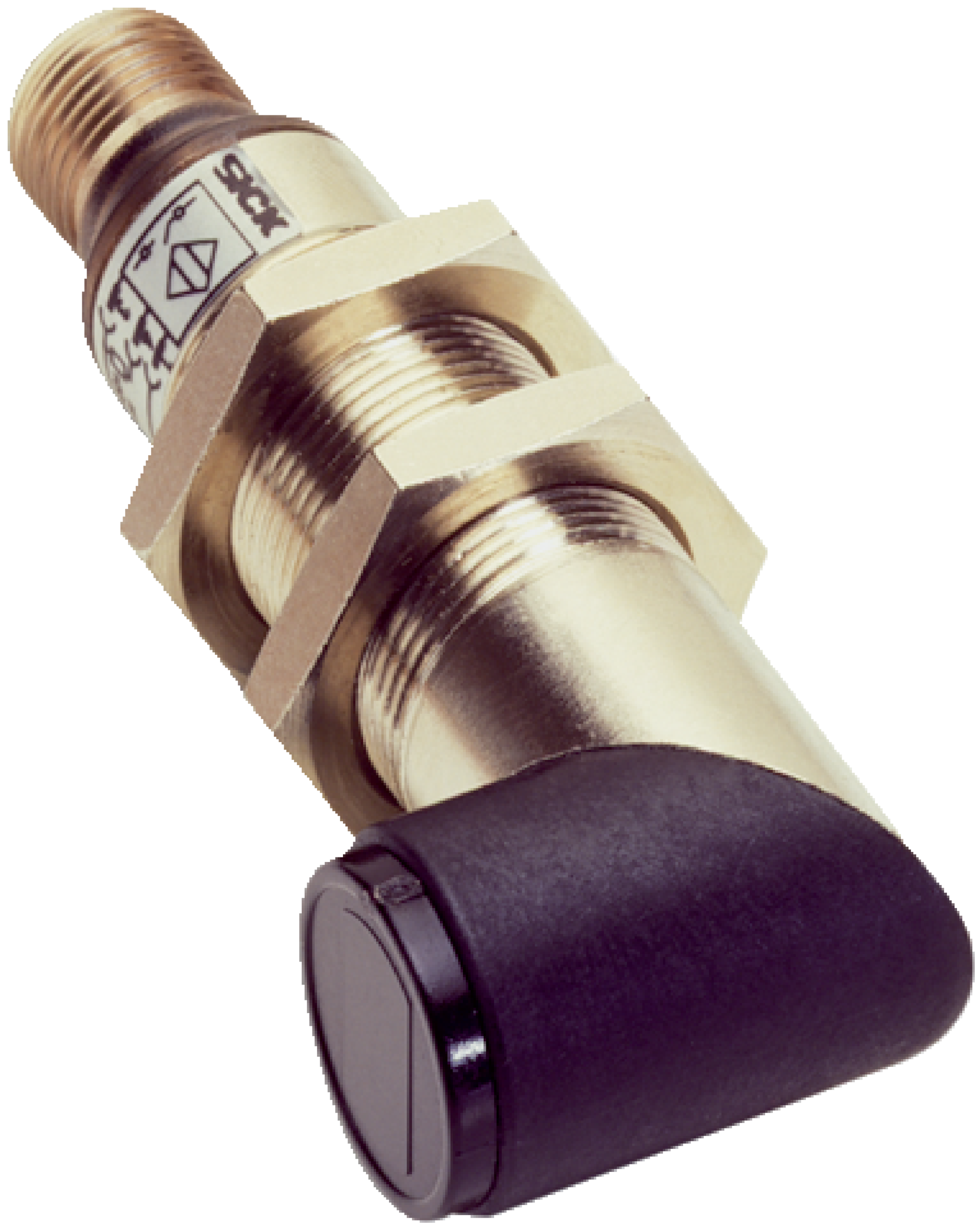

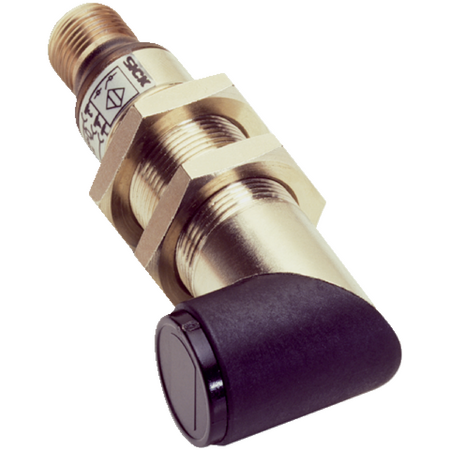

Photoelectric Retro-Reflective Sensor VL18-3P3340 | IP67 Rated | 3.7m Sensing Range | PNP Output | by SICK
The VL18-3P3340 Photoelectric Retro-Reflective Sensor is designed for industrial automation, featuring a sensing range of up to 3.7 meters and a fast response time of ≤ 2 ms. With its durable nickel-plated brass housing and IP67 rating, this sensor is perfect for object detection and safety monitoring in manufacturing processes, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Photoelectric sensor, Retro-reflective sensor, M18 photoelectric sensor, Industrial object sensor
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor
- Sensing range max.: 0.05 m to 3.7 m
- Type of light: Visible red light
- Light source: LED
- Light spot size at 3 m: Ø 150 mm
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP, dark switching
- Output current max.: ≤ 100 mA
- Response time: ≤ 2 ms
- Switching frequency: 250 Hz
- Connection type: Male M12, 4-pin connector
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: –25 °C to +70 °C
- Housing material: Metal, nickel-plated brass
- Optics material: Plastic, PMMA
- Polarizing filter: Yes
- Dimensions (H x L x W): 18mm x 75mm x 18mm
- Weight: 0.12 kg
Key Features
- Photoelectric retro-reflective sensing principle
- Visible red LED light source with approx. 2.8° focus
- Sensing range up to 3.7 meters
- Radial optical axis with Ø 150 mm light spot at 3 m
- Metal housing with nickel-plated brass for durability
- IP67 rated enclosure for dust and water protection
- Polarizing filter included to reduce false triggers
- Fast response time ≤ 2 ms and switching frequency of 250 Hz
- PNP switching output with dark switching mode
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor wiring and safety standards.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable metal housing extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK VL18-3P3340 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
