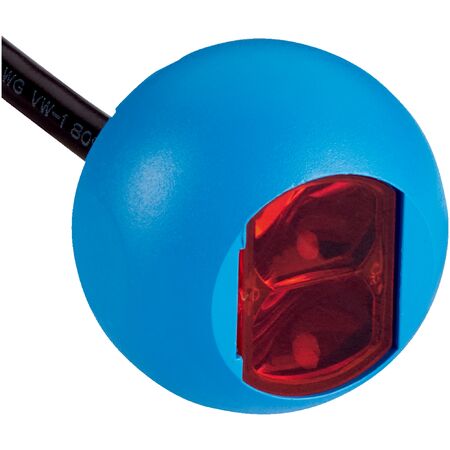

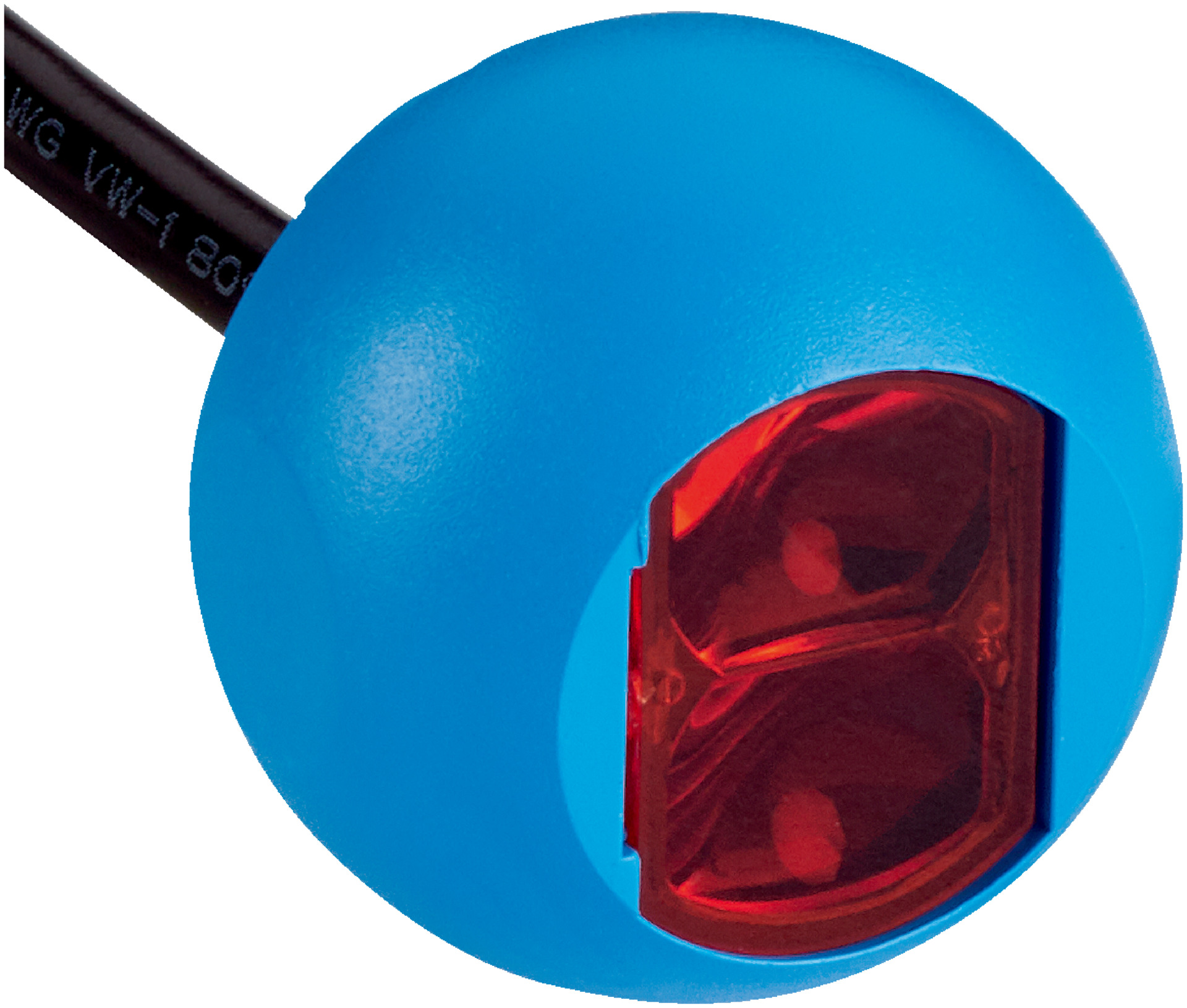

Photoelectric Retro-Reflective Sensor | IP67 Rated | 4.2m Sensing Range | 625nm Wavelength | by SICK
The Photoelectric Retro-Reflective Sensor ZLD18-8AB5B8 is designed for industrial automation, featuring a robust IP67 rated housing and a sensing range of up to 4.2 meters. With a high switching frequency of 1,000 kHz and a response time of ≤ 500 µs, it ensures precise object detection for manufacturing and safety applications. Ideal for use in material handling and packaging lines, this sensor is built for reliability and efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 15 mA
- Output current max: 100 mA
- Switching output: Push-pull PNP/NPN, light and dark switching
- Response time: ≤ 500 µs
- Switching frequency: 1,000 kHz
- Cable: Plastic PVC, 0.13 mm² conductor cross section
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: -40 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Housing material: Plastic ABS
- Optics material: Plastic PMMA
- Light spot size: Ø 125 mm at 1000 mm distance
- Wave length: 625 nm
- Dimensions (H x L x W): 24mm x 26mm x 23mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Visible red LED light source with 625 nm wavelength
- Sensing range up to 4.2 meters, maximum 5 meters
- Push-pull switching output supporting PNP/NPN, light and dark switching modes
- High switching frequency of 1,000 kHz and response time ≤ 500 µs
- Robust plastic ABS housing with IP67 enclosure rating
- Operating temperature range from -40 °C to +55 °C
- Cable with male M8 4-pin connector, 150 mm length
- Polarisation filter included for improved sensing reliability
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and sensor alignment for optimal performance.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and security systems requiring precise sensing
- Material handling and packaging lines
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with efficient LED light source
- Durable IP67 rated housing reduces waste by extending product life
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK ZLD18-8AB5B8 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
