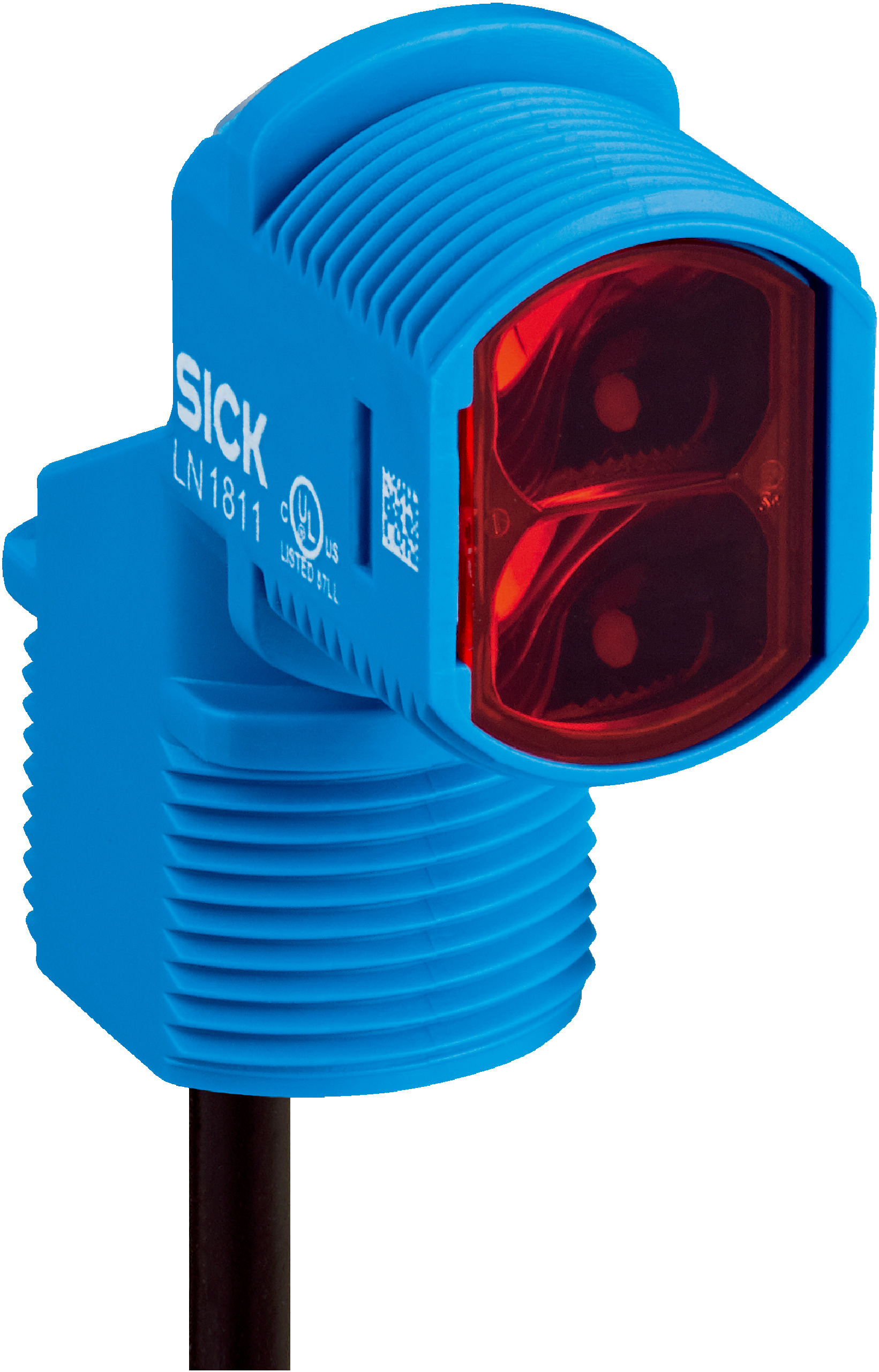

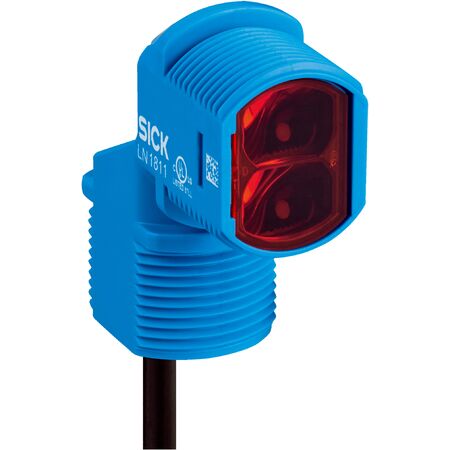

Photoelectric Retro-Reflective Sensor | IP67 Rated | 4.2m Sensing Range | Dark Switching PNP Output | by SICK
The Photoelectric Retro-Reflective Sensor ZLD18-4FZ1G8 is designed for industrial automation, featuring a sensing range of up to 4.2 meters and an IP67 rated enclosure for dust and water protection. With a dark switching PNP output and a response time of ≤ 500 µs, this sensor is perfect for precise object detection in manufacturing and safety systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 15 mA
- Switching output: PNP, dark switching
- Output current max: 100 mA
- Response time: ≤ 500 µs
- Switching frequency: 1,000 kHz
- Connection: 4-wire cable open end, 2 m length
- Cable material: Plastic, PVC
- Conductor cross section: 0.13 mm²
- Protection class: III
- Housing material: Plastic, ABS
- Optics material: Plastic, PMMA
- Enclosure rating: IP67
- Operating temperature: -40 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Polarisation filter included
- Dimensions (H x L x W): 42.9mm x 33.3mm x 13.6mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Visible red LED light source with 625 nm wavelength
- Sensing range up to 4.2 meters
- Hybrid housing design with M18 thread diameter for flexible mounting
- IP67 rated enclosure for dust and water protection
- Dark switching PNP output with switching frequency up to 1,000 kHz
- Operating temperature range from -40°C to +55°C
- Polarisation filter included to reduce interference
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor systems to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and security systems requiring precise sensing
- Material handling and packaging lines
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with efficient LED light source
- Durable IP67 housing reduces need for frequent replacements
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK ZLD18-4FZ1G8 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
