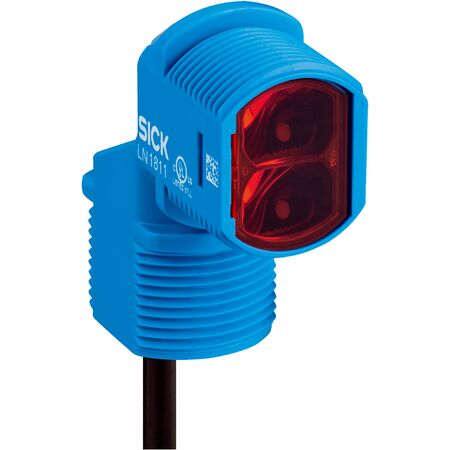

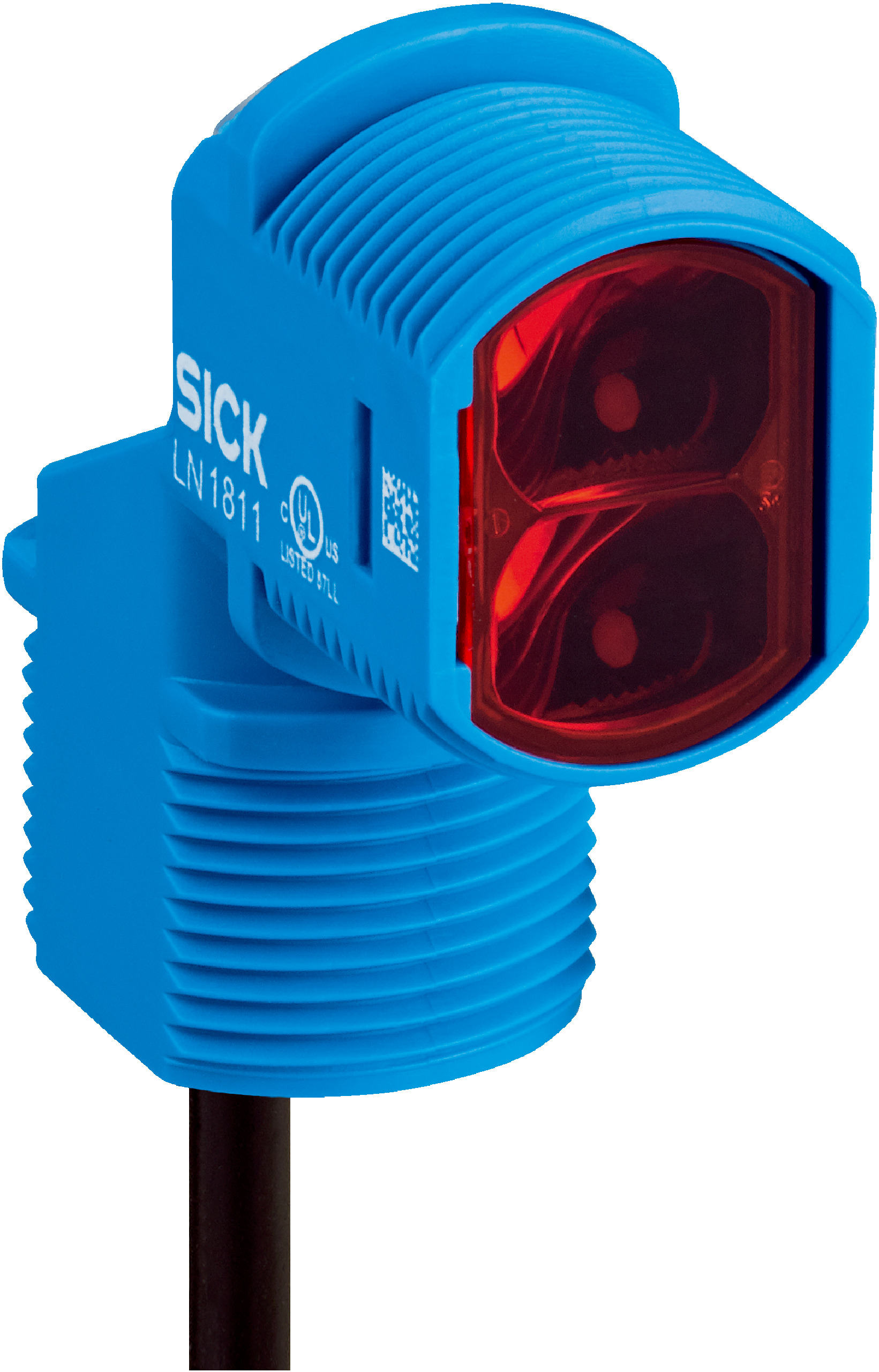

Photoelectric Retro-Reflective Sensor | IP67 Rated | 4.2m Sensing Range | PNP Output | by SICK
The Photoelectric Retro-Reflective Sensor ZLD18-4PF4C8 is designed for industrial automation, featuring a sensing range of up to 4.2 meters and a high switching frequency of 1,000 kHz. With an IP67 rated enclosure for dust and water protection, this sensor is perfect for manufacturing process control and safety systems, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 15 mA
- Switching output: PNP, light and dark switching
- Output current max: 100 mA
- Response time: ≤ 500 µs
- Switching frequency: 1,000 kHz
- Connection: Cable with M12 male connector, 4-pin, 300 mm
- Cable material: Plastic, PVC
- Conductor cross section: 0.13 mm²
- Protection class: III
- Housing material: Plastic, ABS
- Optics material: Plastic, PMMA
- Enclosure rating: IP67
- Operating temperature: -40 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Light source: LED, visible red light, 625 nm wavelength
- Light spot size at 1000 mm: Ø 125 mm
- Dimensions (H x L x W): 43mm x 33mm x 14mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Visible red light LED with wavelength of 625 nm
- Sensing range up to 4.2 meters
- Hybrid housing design with blue ABS plastic
- M18 mounting system for head or base
- IP67 rated enclosure for dust and water protection
- Polarisation filter included to reduce false triggering
- Switching outputs: PNP light and dark switching
- High switching frequency of 1,000 kHz and response time ≤ 500 µs
- Cable with M12 male connector, 4-pin, 300 mm length
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and sensor alignment.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and security systems
- Material handling and packaging
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with efficient LED light source
- Durable IP67 housing reduces need for frequent replacements
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK ZLD18-4PF4C8 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
