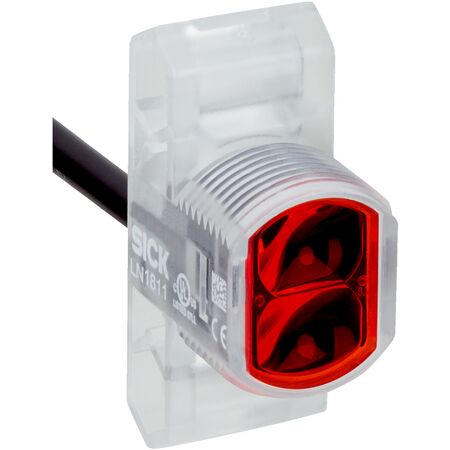

Photoelectric Retro-Reflective Sensor | IP67 Rated | 4.2m Sensing Range | NPN Output | by SICK
The Photoelectric Retro-Reflective Sensor is designed for industrial automation, featuring a sensing range of up to 4.2 meters and an IP67 rated enclosure for dust and water protection. With a dual lens system and visible red LED light source, it ensures reliable object detection in manufacturing processes, making it ideal for safety and monitoring applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 15 mA
- Switching output: NPN, light switching
- Output current max: 100 mA
- Response time: ≤ 500 µs
- Switching frequency: 1,000 kHz
- Cable material: Plastic, PVC
- Conductor cross section: 0.13 mm²
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: -40 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Housing material: Plastic, ABS
- Optics material: Plastic, PMMA
- Dimensions (H x L x W): 34.8mm x 23mm x 13.6mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Visible red LED light source with 625 nm wavelength
- Sensing range up to 4.2 meters
- Hybrid housing design with transparent ABS plastic
- M18 threaded housing for head/side mounting
- IP67 rated enclosure for dust and water protection
- Polarisation filter included
- Cable with RJ11 6-pin connector, 3 meters long
- Operating temperature range from -40°C to +55°C
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper mounting, wiring, and compliance with electrical safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in production lines
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with efficient LED light source
- Durable IP67 housing reduces waste by extending product life
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK ZLD18-ANZAK8P10 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and manufacturing process control applications.
