Photoelectric Retro-Reflective Sensor | IP67 Rated | 6.8m Sensing Range | 1000kHz Switching Frequency | by SICK
The Photoelectric Retro-Reflective Sensor is designed for industrial automation, featuring a robust IP67 rated housing and a sensing range of up to 6.8 meters. With a high switching frequency of 1,000 kHz and a fast response time of ≤ 500 µs, it ensures precise object detection in manufacturing and safety applications. Ideal for material handling and packaging lines, this sensor is built for reliability and efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 15 mA
- Switching output: Push-pull PNP/NPN
- Output current max: 100 mA
- Response time: ≤ 500 µs
- Switching frequency: 1,000 kHz
- Light source: PinPoint LED, wavelength 625 nm
- Sensing range: 0 m to 6.8 m
- Housing material: Plastic ABS
- Optics material: Plastic PMMA
- Enclosure rating: IP67
- Operating temperature: -40 °C to +55 °C
- Cable length: 2.16 m, PVC material
- Dimensions (H x L x W): 20.5mm x 23mm x 14.4mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Visible red light with PinPoint LED light source
- Sensing range up to 6.8 meters
- Push-pull PNP/NPN switching output with light and dark switching modes
- High switching frequency of 1,000 kHz and fast response time ≤ 500 µs
- Robust plastic ABS housing with IP67 enclosure rating
- Wide ambient operating temperature range from -40 °C to +55 °C
- Polarisation filter included for improved sensing reliability
- Cable with plug connection (Tyco housing and socket) with 2.16 m length
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor systems to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and security systems requiring precise sensing
- Material handling and packaging lines
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with efficient LED light source
- Durable IP67 rated housing reduces waste by extending product life
- RoHS compliant, ensuring reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now

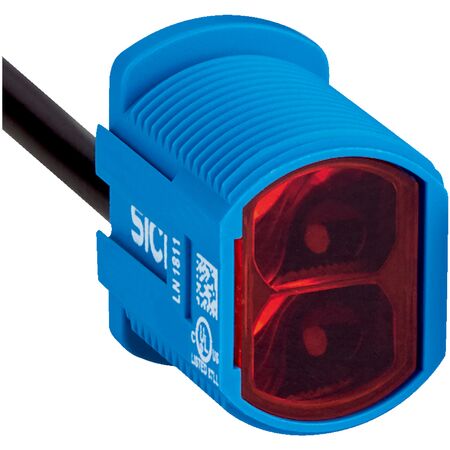

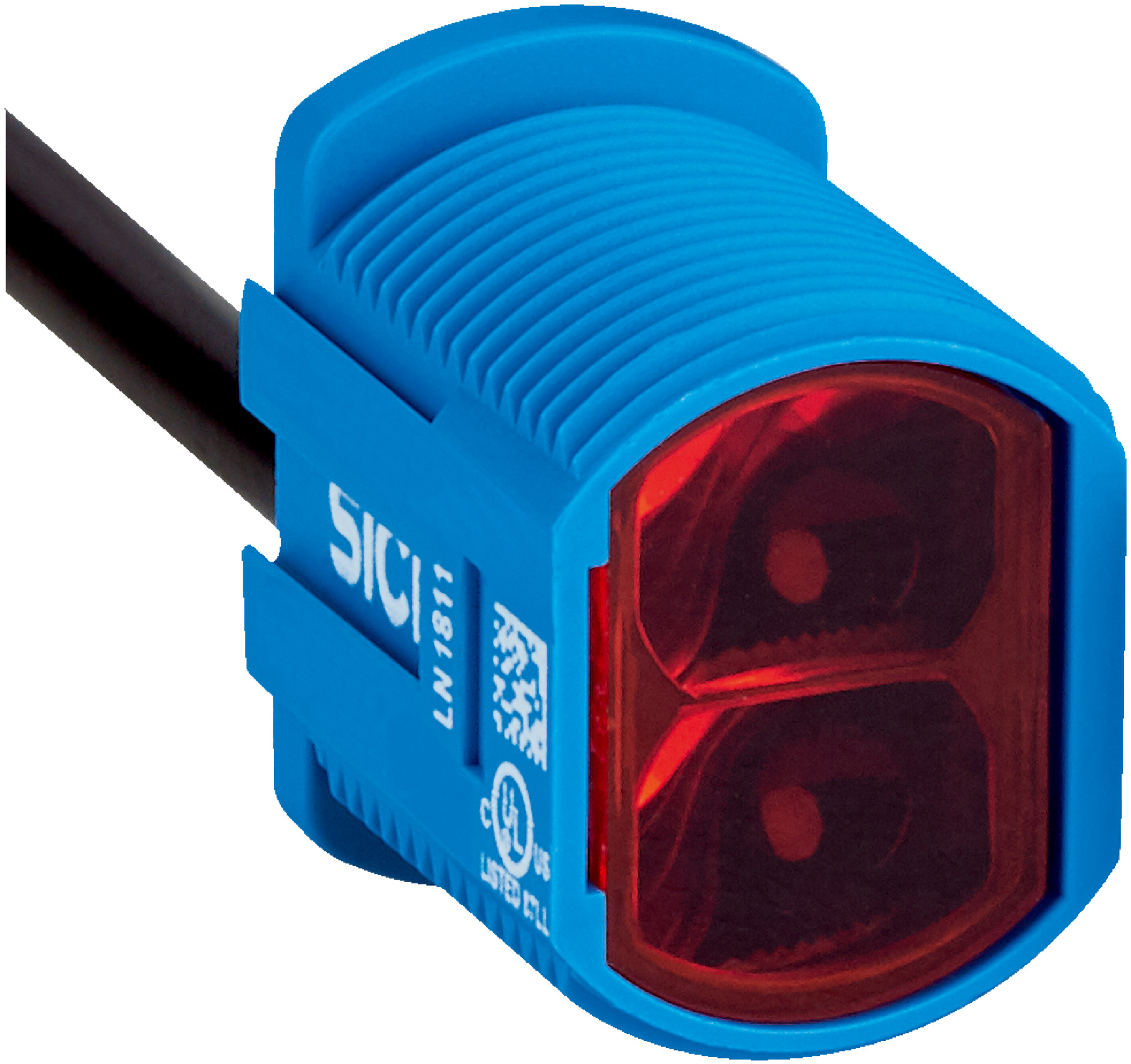

The SICK ZLD18-9AZ002S84 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and precise object detection applications.
